Accessories for Plastic top chain
×
(Drag to move. )

Sprockets/Corner Disks/Turn Discs

  • ・Application

    Product to transmits the power of motor to the chain.

    Install to a drive shaft of conveyor.

  • ・Usage image

    Sprocket

    [Click to enlarge ]

To the list

×
(Drag to move. )

Idler wheels/Idler Sprockets

  • ・Application

    Install to a driven shaft of conveyor.

To the list

×
(Drag to move. )

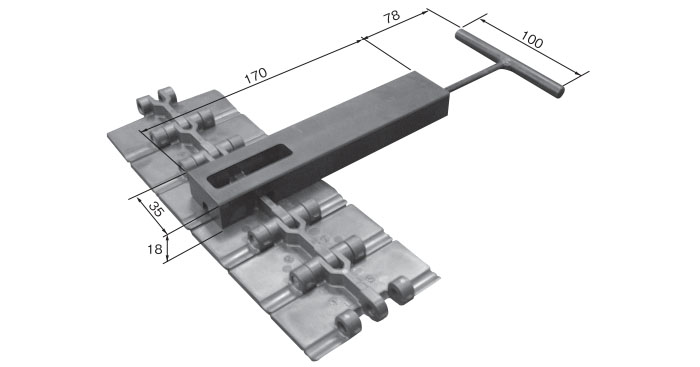

Disconnecting and Connecting Tools

  • ・Application

    By using a tool, the chain can be easily disconnected and connected.

    Refer to the product page for applicable products.

  • ・Usage image

    For Stainless Steel Top Chain TS type

    Disconnecting and Connecting Tools

    [Click to enlarge ]

To the list

Accessory list for Plastic top chain

Search for applicable accessories for the chain model number .

Accessorie model No.


※Click the model No. for detailed information. Click to enlarge the diagram drawing.

Sprockets/Corner Disks/Turn Discs

(Click here for a list
of all series. )		 Applicable chain number Applicable Chain pitch
mm		 Working number of teeth /Number of teeth
TTP　 TTP, TTPH, TTPH-P, TTP-P, TTPT 38.1 9½, 10½, 11½, 12½


Sprockets (with Plain Bore) 　

Additional processing for shaft holes available upon request

Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter mm Type
TTP912T 19 9½ 117.34 Φ18 Φ40 Integrated type
TTP1012T 21 10½ 129.26
TTP1112T 23 11½ 141.22
TTP1212T 25 12½ 153.20
Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TTP912T-S□□□□ 19 9½ 117.34 Φ15～Φ45 Integrated type
TTP1012T-S□□□□ 21 10½ 129.26
TTP1112T-S□□□□ 23 11½ 141.22
TTP1212T-S□□□□ 25 12½ 153.20
TTPDH　 TTPDH, TTPDH-LBP 38.1 12½

Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TP-C12295T-SPR 25 12½ 153.21 Φ40 Split
TTPM　 TTPM 19.05 12, 14, 15, 19, 21, 23

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TTPM1200T 12 73.6 Φ15 Φ35 Integrated type
TTPM1400T 14 85.6 Φ40
TTPM1500T 15 91.6
TTPM1900T 19 115.7 Φ50
TTPM2100T 21 127.8
TTPM2300T 23 139.9
TPF　 TPF 38.1 9½, 10½, 11½, 12½


Sprockets (with Plain Bore) 　

Additional processing for shaft holes available upon request

Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TPF912T 19 9½ 117.34 Φ18 Φ42 Integrated type
TPF1012T 21 10½ 129.26
TPF1112T 23 11½ 141.22
TPF1212T 25 12½ 153.20

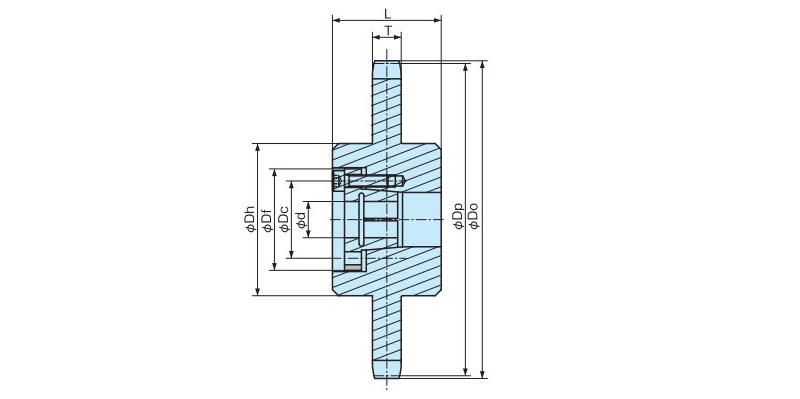

Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TPF912T-S□□□□ 19 9½ 117.34 Φ15～Φ35 Integrated type
TPF1012T-S□□□□ 21 10½ 129.26
TPF1112T-S□□□□ 23 11½ 141.22
TPF1212T-S□□□□ 25 12½ 153.20
TP-OTD　 TP-OTD 38.1 10½, 11½

Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TP-OTD1012T 21 10½ 129.2 Φ20 Φ40 Integrated type
TP-OTD1112T 23 11½ 141.2
TPS　 TP-880TAB, TPH, TPH-P, TPS, TPS-P, TPU, TPUH-BO, TPU-LH, TPU-P, TPUT-LH, TPU-USR, TTUP, TTUPH, TTUP-LLPC, TTUP-M, TTUP-P, TTUPT-M 38.1 9, 9½, 10, 10½, 11, 11½, 12, 12½, 13


Sprockets (with Plain Bore) 　

Additional processing for shaft holes available upon request

Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TTUP900T - 9 111.40 Φ18 Φ47 Integrated type
TTUP912T 19 9½ 117.34
TTUP1000T - 10 123.29
TTUP1012T 21 10½ 129.26
TTUP1100T - 11 135.23
TTUP1112T 23 11½ 141.22
TTUP1200T - 12 147.21
TTUP1212T 25 12½ 153.20
TTUP1300T - 13 159.20
Lock Sprockets
Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TTUP900T-S□□□□ - 9 111.40 Φ15～Φ45 Integrated type
TTUP912T-S□□□□ 19 9½ 117.34
TTUP1000T-S□□□□ - 10 123.29
TTUP1012T-S□□□□ 21 10½ 129.26
TTUP1100T-S□□□□ - 11 135.23
TTUP1112T-S□□□□ 23 11½ 141.22
TTUP1200T-S□□□□ - 12 147.21
TTUP1212T-S□□□□ 25 12½ 153.20
TTUP1300T-S□□□□ - 13 159.20
TPSS　 TPSS, TPUS, TPUS953Y-T-LAP, TPUS-LBP, TPUS-Y-T, TTUPS 38.1 9, 10, 11, 12, 13, 14, 15

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TPSS900T 9 114.4 Φ20 Φ35 Integrated type
TPSS1000T 10 123.3 Φ40
TPSS1100T 11 135.2
TPSS1200T 12 147.2
TPSS1300T 13 159.2
TPSS1400T 14 171.2
TPSS1500T 15 183.3
TTUPM　 TTUPM-P, TTUPM-PC 12.7 11, 13, 15

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter mm Type
TTUPM1100T 11 45.1 Φ8 Φ20 Integrated type
TTUPM1300T 13 53.1 Φ25
TTUPM1500T 15 61.1 Φ30

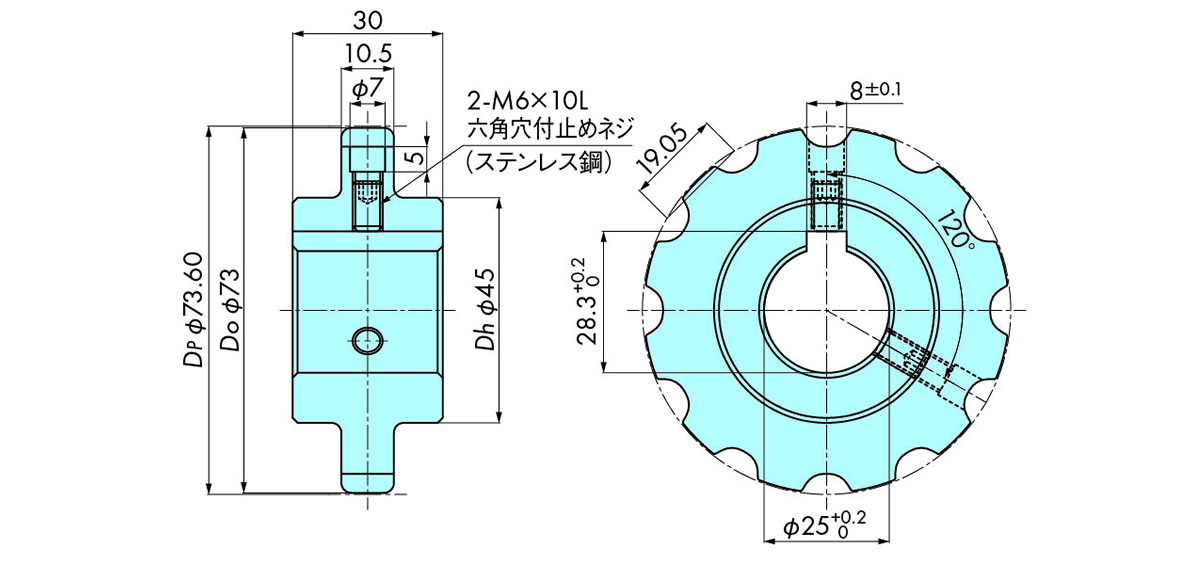

TPUMF-T　 TPUMF1200F-T, TPUMF1200-T, TPUMF1200-TB 19.05 12

Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TPUMF1200T-25 12 73.60 Φ25 Integrated type
TPUS　 TPSS, TPUS, TPUS953Y-T-LAP, TPUS-LBP, TPUS-Y-T, TTUPS 38.1 12

Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TTP-C1211■T-SPR 12 147.2 Φ30, Φ40 Split
×
(Drag to move. )

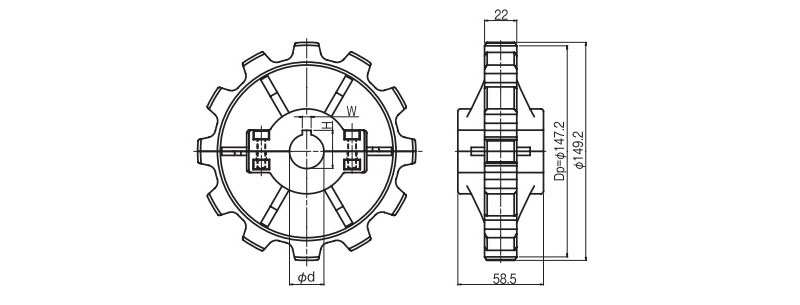

Model No. Number of teeth Pitch Diameter
mm		Bore diameter
mm		Type
TP-C12115T-SPR 12 147.2 Φ30 Split
TP-C12117T-SPR Φ40
TTUPS-H　 TTUPS-H 25.4 12, 16, 18, 21

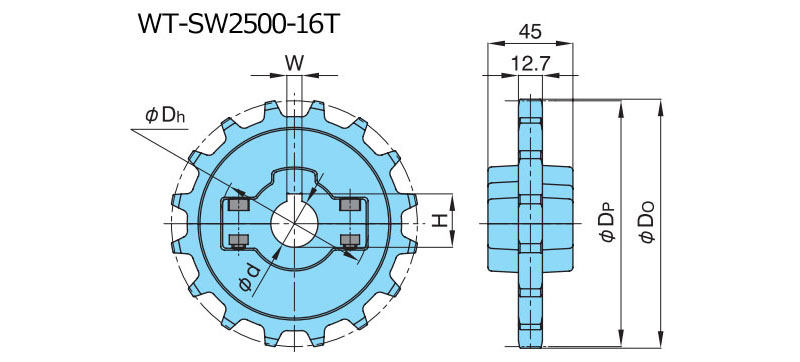

Split Sprockets (SW2500)
Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
WT-SW2500-16T■ 16 130.20 Φ25, Φ30, Φ35, Φ40 Split
WT-SW2500-18T■ 18 146.27 Φ25, Φ30, Φ35, Φ40
WT-SW2500-21T■ 21 170.40 Φ25, Φ30, Φ35, Φ40
×
(Drag to move. )
■SW2500 Split Sprockets
Model No. Number of teeth Pitch Diameter
mm		Bore diameter
mm		Type
WT-SW2500-16T25 16 130.20 Φ25 Split
WT-SW2500-16T30 Φ30
WT-SW2500-16T35 Φ35
WT-SW2500-16T40 Φ40
×
(Drag to move. )
■SW2500 Split Sprockets
Model No. Number of teeth Pitch Diameter
mm		Bore diameter
mm		Type
WT-SW2500-18T25 18 146.27 Φ25 Split
WT-SW2500-18T30 Φ30
WT-SW2500-18T35 Φ35
WT-SW2500-18T40 Φ40
×
(Drag to move. )
■SW2500 Split Sprockets
Model No. Number of teeth Pitch Diameter
mm		Bore diameter
mm		Type
WT-SW2500-21T25 21 170.40 Φ25 Split
WT-SW2500-21T30 Φ30
WT-SW2500-21T35 Φ35
WT-SW2500-21T40 Φ40
Solid Sprockets (S2500)
Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
WT-S2500-16T 16 130.20 Bore shape and size are
made-to-order. 		Integrated type
WT-S2500-18T 18 146.27
WT-S2500-21T 21 170.42

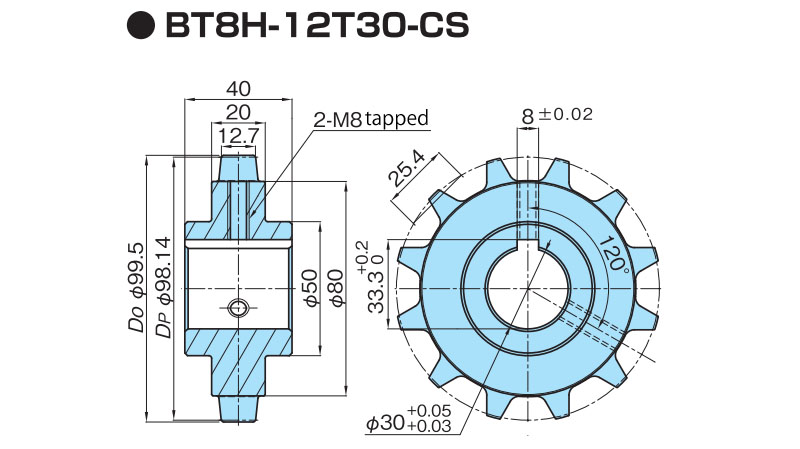

Units with pre-machined shaft bores and keyway
Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
BT8H-12T■-CS 12 98.14 Φ25, Φ30 Integrated type
BT8H-16T30-CS 16 130.20 Φ30
×
(Drag to move. )
■Units with pre-machined shaft bores and keyway
Model No. Number of teeth Pitch Diameter
mm		Bore diameter
mm		Type
BT8H-12T25-CS 12 98.14 Φ25 Integrated type
BT8H-12T30-CS Φ30
With plain bore
Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Type
BT8H-12T-CS 12 98.14 Φ15 Integrated type
BT8H-16T-CS 16 130.20
TPUH-BO　 TPUH-BO 38.1 32

Model No. Number of teeth Outer Diameter Bore diameter
mm		 Type
TP-C12781LT-SPR 32 352 Φ25 Integrated type

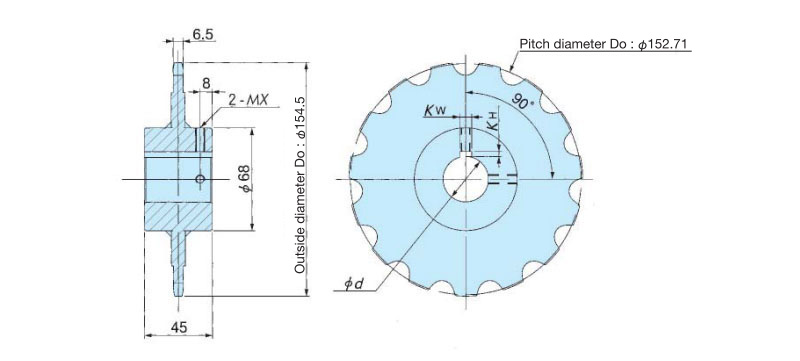

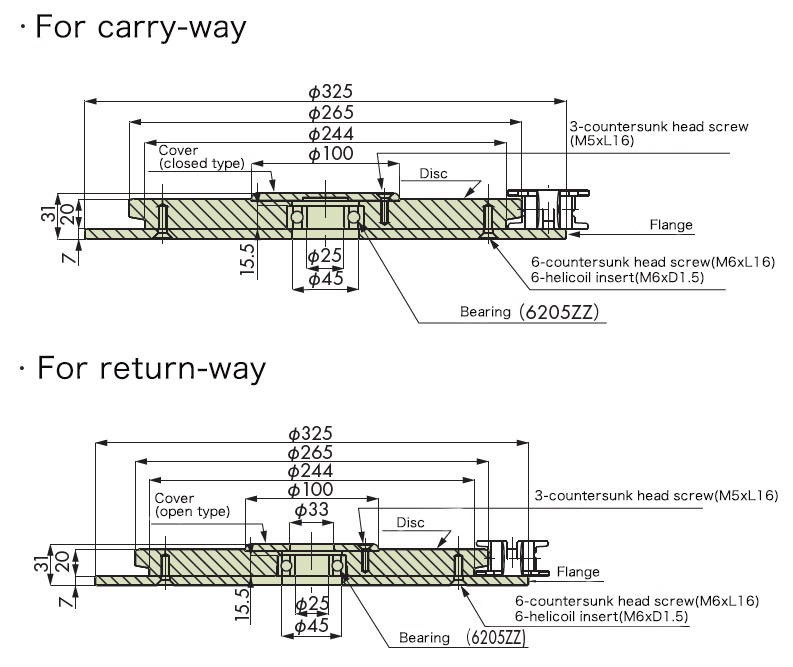

TPUSR　 TPUSR550, TPUSR550P, TPUSR826, TPUSR826P 31.75 15


Sprockets (with Plain Bore) 　

Additional processing for shaft holes available upon request

Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TPUSR1500T 15 152.71 Φ20～Φ45 Φ15.9 Φ45 Integrated type
TPUSR1500T-SS

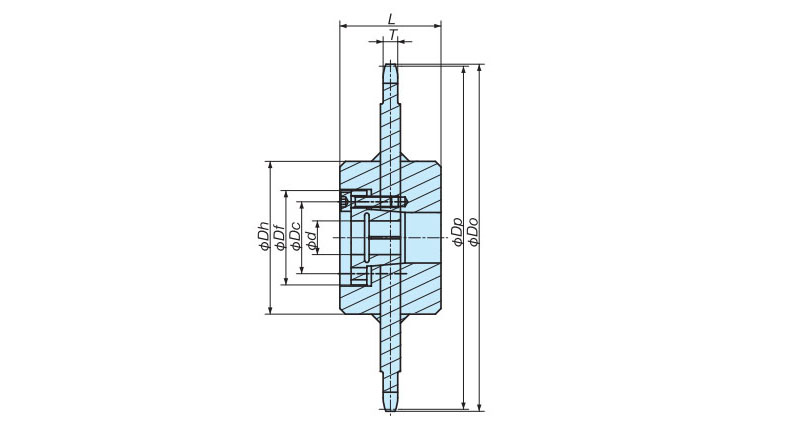

Lock Sprockets
Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TPUSR1500T-S□□□□ 15 152.71 Φ15～Φ35 Integrated type

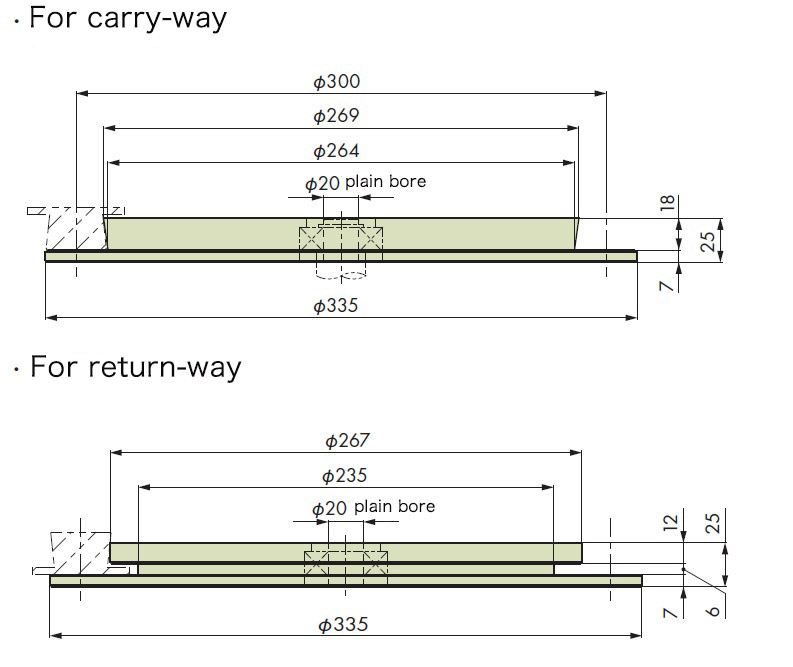

TP-UB36　 TP-UB36, TP-UB36P 36 11, 12, 13

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TP-UB1100T 11 127.8 Φ20 Φ40 Integrated type
TP-UB1200T 12 139.1
TP-UB1300T 13 150.4
TPUN　 TP-50UNS, TP-50UNS-D76, TPUN, TPUN535-LH, TPUN550-LH 50 8, 10, 12





Engineering Plastic Sprockets
Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TP-C213959T-SPR 8 130.66 Φ30 Integrated type
TP-C213961T-SPR 10 161.8 Φ25
TP-C12721T-SPR
Sprockets (with Plain Bore) 　

Additional processing for shaft holes available upon request

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Type
TPUN555-800TQ 8 130.6 Φ16 Integrated type
TPUN555-1000TQ 10 161.8
TPUN555-1200TQ 12 193.2
Lock Sprockets
Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TPUN555-800TQ-S□□□□■ 8 130.6 Φ15～Φ45 Integrated type
TPUN555-1000TQ-S□□□□■ 10 161.8
TPUN555-1200TQ-S□□□□■ 12 193.2
TP-50UN-T95　 TP-50UN-T95 50 8, 10, 12

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TP-50UNT-8T 8 130.6 Φ15 Φ40 Integrated type
TP-50UNT-10T 10 161.8 Φ20
TP-50UNT-12T 12 193.2
TPCC　 TPCC420, TPCC420-T 63.5 8, 10, 12

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Type
TP-C12326T-SPR 8 165.9 Φ23 Integrated type
TP-C12327T-SPR 10 205.5
TP-C12328T-SPR 12 245.3
TP-36AK　 TP-36AK 36 11, 13, 15

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TP-36AK1100T 11 127.7 Φ20 Φ60 Integrated type
TP-36AK1300T 13 150.4
TP-36AK1500T 15 173.1
TP-30UTW-LAP　 TP-30UTW-LAP 30 15

Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TP-SW30UT-15T30 15 144.3 Φ30 Split
TP-36UTW-LAP　 TP-36UTW-LAP 36 13

Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TP-36UT-13T 13 150.42 Bore shape and size are
made-to-order. 		Integrated type
TPRF2040　 TPRF2040 25.4 9½, 10½, 11½, 12, 12½


Type Material Base Model No. Working number of teeth range
With plain bore steel RF2040S-1B□T■ 9½～12½
Stainless RF2040S-1B□T-SS 9½～12½
Engineering plastic RF2040S-1B□T-P 9½～12½
Fit bore steel RF2040S-1B□T-H～ 9½～12½
Stainless RF2040S-1B□T-SS-H～ 9½～12½
Lock Sprocket S Type steel RF2040S-1B□T-S○○○○● 9½～12½
TPRF2060　 TPRF2060 38.1 9½, 10½, 11½, 12, 12½


Type Material Base Model No. Working number of teeth range
With plain bore steel RF2060S-1B□T■ 9½～12½
Stainless RF2060S-1B□T-SS 9½～12½
Engineering plastic RF2060S-1B□T-P 9½～12½
Fit bore steel RF2060S-1B□T-H～ 9½～12½
Stainless RF2060S-1B□T-SS-H～ 9½～12½
Lock Sprocket S Type steel RF2060S-1B□T-S○○○○● 9½～12½
TORP/TOSP　 TO, TORP/TOSP 76.2 11, 31

TOR・TORP
Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TOR1100T 11 11 270.47 Φ23 Φ45 Integrated type
TOS・TOSP
Model No. Number of teeth Working number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
TOS1013T 31 10⅓ 254.59 Φ23 Φ45 Integrated type
ST　 ST-NP, ST-SS 9.525, 12.70, 15.875 10～

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
RS35-1B■TQ-R 13～21 39.80～63.91 Φ9.5, Φ12.7 Φ12～Φ30 Integrated type
RS40-1B■TQ-R 10～22 41.10～89.24 Φ9.5, Φ12.7 Φ12～Φ47
RS50-1B■TQ-R 10～18 51.37～91.42 Φ9.5, Φ12.7 Φ16～Φ46
Number of teeth greater than the above can be used with RS sprocket type B.
Stainless steel series are the same as above.
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Plain bore Diameter
mm		Maximum Shaft Bore Diameter Type
RS35-1B13TQ-R 13 39.80 Φ9.5 Φ12 Integrated type
RS35-1B14TQ-R 14 42.81 Φ15
RS35-1B15TQ-R 15 45.80 Φ16
RS35-1B16TQ-R 16 48.82 Φ19
RS35-1B17TQ-R 17 51.84 Φ20
RS35-1B18TQ-R 18 54.85 Φ12.7 Φ23
RS35-1B19TQ-R 19 57.87 Φ26
RS35-1B20TQ-R 20 60.89 Φ28
RS35-1B21TQ-R 21 63.91 Φ30
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Plain bore Diameter
mm		Maximum Shaft Bore Diameter Type
RS40-1B10TQ-R 10 41.10 Φ9.5 Φ12 Integrated type
RS40-1B11TQ-R 11 45.08 Φ15
RS40-1B12TQ-R 12 49.07 Φ17
RS40-1B13TQ-R 13 53.07 Φ12.7 Φ20
RS40-1B14TQ-R 14 57.07 Φ23
RS40-1B15TQ-R 15 61.08 Φ26
RS40-1B16TQ-R 16 65.10 Φ28
RS40-1B17TQ-R 17 69.12 Φ32
RS40-1B18TQ-R 18 73.14 Φ35
RS40-1B19TQ-R 19 77.16 Φ38
RS40-1B20TQ-R 20 81.18 Φ41
RS40-1B21TQ-R 21 85.21 Φ45
RS40-1B22TQ-R 22 89.24 Φ47
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Plain bore Diameter
mm		Maximum Shaft Bore Diameter Type
RS50-1B10TQ-R 10 51.37 Φ9.5 Φ16 Integrated type
RS50-1B11TQ-R 11 56.35 Φ12.7 Φ20
RS50-1B12TQ-R 12 61.34 Φ23
RS50-1B13TQ-R 13 66.34 Φ27
RS50-1B14TQ-R 14 71.34 Φ31
RS50-1B15TQ-R 15 76.35 Φ35
RS50-1B16TQ-R 16 81.37 Φ38
RS50-1B17TQ-R 17 86.39 Φ43
RS50-1B18TQ-R 18 91.42 Φ46
RT　 RT-SS, ST-NP, ST-SS 9.525, 12.70, 15.875, 19.05 13～

Model No. Number of teeth Pitch Diameter
mm		 Plain bore Diameter
mm		 Maximum Shaft Bore Diameter
mm		 Type
RS35-1B□TQ-R 14～21 42.81～63.91 Φ9.5, Φ12.7 Φ15～Φ30 Integrated type
RS40-1B□TQ-R 13～22 53.07～89.24 Φ12.7 Φ20～Φ47
RS50-1B□TQ-R 14～18 71.34～91.42 Φ12.7 Φ31～Φ46
Number of teeth greater than the above can be used with RS sprocket type B.
RS60-1B sprocket with 12 teeth or greater can be used for RT600.
Stainless steel series are the same as above.
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Plain bore Diameter
mm		Maximum Shaft Bore Diameter Type
RS35-1B14TQ-R 14 42.81 Φ9.5 Φ15 Integrated type
RS35-1B15TQ-R 15 45.80 Φ16
RS35-1B16TQ-R 16 48.82 Φ19
RS35-1B17TQ-R 17 51.84 Φ20
RS35-1B18TQ-R 18 54.85 Φ12.7 Φ23
RS35-1B19TQ-R 19 57.87 Φ26
RS35-1B20TQ-R 20 60.89 Φ28
RS35-1B21TQ-R 21 63.91 Φ30
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Plain bore Diameter
mm		Maximum Shaft Bore Diameter Type
RS40-1B13TQ-R 13 53.07 Φ12.7 Φ20 Integrated type
RS40-1B14TQ-R 14 57.07 Φ23
RS40-1B15TQ-R 15 61.08 Φ26
RS40-1B16TQ-R 16 65.10 Φ28
RS40-1B17TQ-R 17 69.12 Φ32
RS40-1B18TQ-R 18 73.14 Φ35
RS40-1B19TQ-R 19 77.16 Φ38
RS40-1B20TQ-R 20 81.18 Φ41
RS40-1B21TQ-R 21 85.21 Φ45
RS40-1B22TQ-R 22 89.24 Φ47
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Plain bore Diameter
mm		Maximum Shaft Bore Diameter Type
RS50-1B14TQ-R 14 71.34 Φ12.7 Φ31 Integrated type
RS50-1B15TQ-R 15 76.35 Φ35
RS50-1B16TQ-R 16 81.37 Φ38
RS50-1B17TQ-R 17 86.39 Φ43
RS50-1B18TQ-R 18 91.42 Φ46
Corner Disk for TPU-USR 　 TPU-USR 38.1

Application Model No.
Carry Way, Return Way TPU826USR-CD-R190
Corner Disk for TPUH-BO 　 TPUH-BO 38.1

Application Model No.
Carry Way TP-C12779T-CD
Return Way TP-C12777T-CD
Corner Disk for TPUSR550 　 TPUSR550, TPUSR550P 38.1

Application Model No.
Carry Way TPUSR550-CD-R150C
Return Way TPUSR550-CD-R150R
Corner Disk for TPUSR826 　 TPUSR826, TPUSR826P 38.1

Application Model No.
Carry Way TPUSR826-CD-R150C
Return Way TPUSR826-CD-R150R
Turn Disc for TP-UB36 　 TP-UB36, TP-UB36P 36

Application Model No.
Carry Way PR-TP-UB36TW-D
Return Way PR-TP-UB36TW-R
Corner Disk for TP-50UNS/TPUN 　 TP-50UNS, TPUN 50

Application Model No.

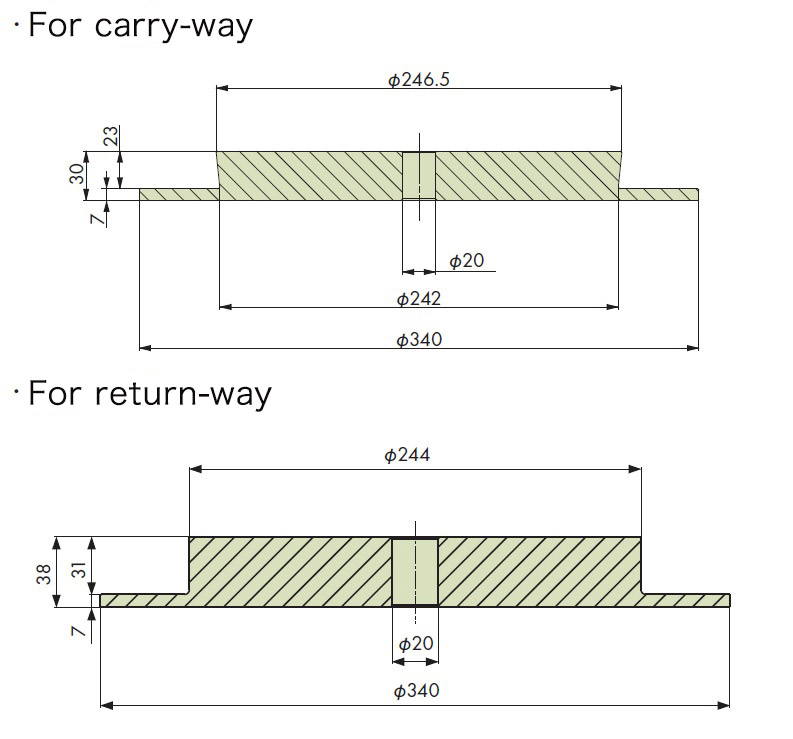

Carry Way TPUN555-CD-R150C
Return Way TPUN555-CD-R150R
Turn Disc for TP-50UNS 　 TP-50UNS 50

Type Application Model No.

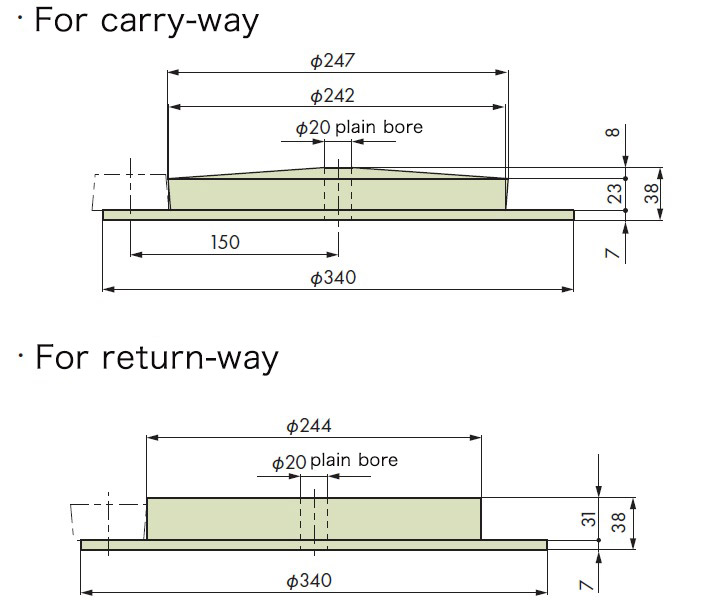

Machined Carry Way TP-50UNST1
Return Way TP-50UNST2
Corner Disk for TPUN-LH 　 TPUN535-LH, TPUN550-LH 50

Application Model No.

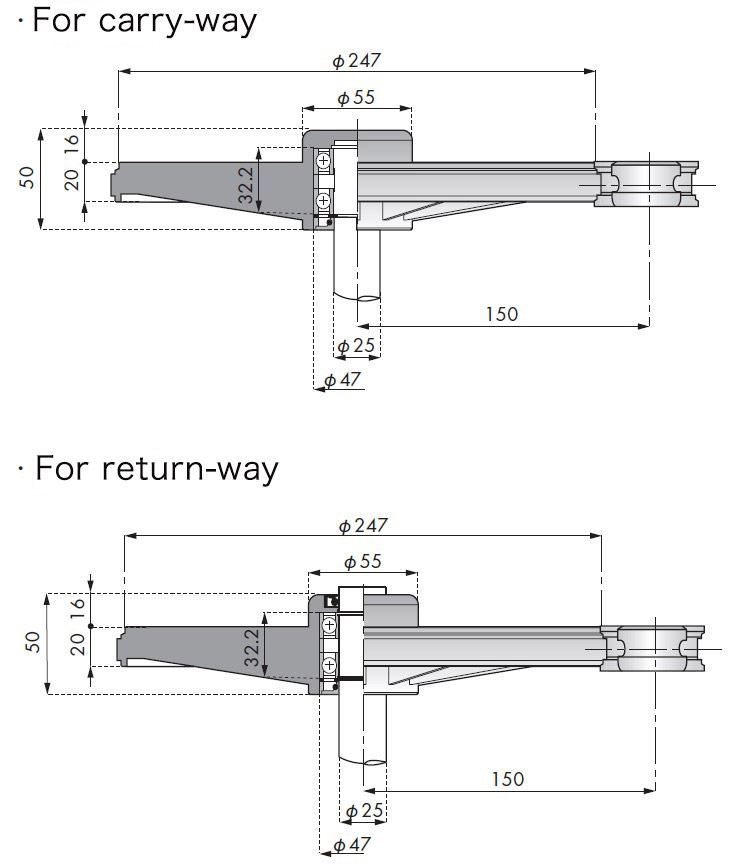

Carry Way TP-C12723T-CD
Return Way TP-C12725T-CD

Idler wheels/Idler Sprockets

(Click here for a list
of all series. )		 Applicable chain number Applicable Chain pitch
mm		 Equivalent no. of teeth
TTP　 TPF, TPH, TP-OTD, TPS, TPS-P, TT, TTP, TTPH, TTPH-P, TTP-P, TTPT, TTU, TTUP, TTUPH, TTUP-P, TTUPS-H 25.4, 38.1 21, 23, 25


Engineering Plastic?Idler wheels
Model No. Equivalent no. of teeth Outer Diameter
mm		 Bore diameter
mm		 Type
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ40 Integrated type
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ40
TP-C12■■■BT-IW 21 129.8 Φ25, Φ30, Φ45, Φ40 Split
TP-C12■■■BT-IW 23 142.2 Φ25, Φ30, Φ45, Φ40
TP-C12■■■BT-IW 25 154.7 Φ25, Φ30, Φ45, Φ40
×
(Drag to move. )
■Engineering Plastic Idler wheels (OEM supplied)
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-C12200BT-IW 21 129.8 Φ25 Integrated type
TP-C12201BT-IW Φ30
TP-C12203BT-IW Φ40
×
(Drag to move. )
■Engineering Plastic Idler wheels (OEM supplied)
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-C12212BT-IW 23 142.2 Φ25 Integrated type
TP-C12213BT-IW Φ30
TP-C12215BT-IW Φ40
×
(Drag to move. )
■Engineering Plastic Idler wheels (OEM supplied)
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-C12204BT-IW 25 154.7 Φ25 Integrated type
TP-C12205BT-IW Φ30
TP-C12207BT-IW Φ40
×
(Drag to move. )
■Engineering Plastic Idler wheels (OEM supplied)
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-C12077BT-IW 21 129.8 Φ25 Split
TP-C12078BT-IW Φ30
TP-C12079BT-IW Φ35
TP-C12080BT-IW Φ40
×
(Drag to move. )
■Engineering Plastic Idler wheels (OEM supplied)
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-C121928BT-IW 23 142.2 Φ25 Split
TP-C121929BT-IW Φ30
TP-C121930BT-IW Φ35
TP-C121931BT-IW Φ40
×
(Drag to move. )
■Engineering Plastic Idler wheels (OEM supplied)
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-C12081BT-IW 25 154.7 Φ25 Split
TP-C12082BT-IW Φ30
TP-C12083BT-IW Φ35
TP-C12084BT-IW Φ40
TTPDH　 TTPDH, TTPDH-LBP 38.1 25

Model No. Equivalent no. of teeth Outer Diameter
mm		 Bore diameter
mm		 Type
TP-C121646T-IW 25 155 Φ35 Integrated type
TPS　 TP-880TAB, TPH, TPH-P, TPS, TPS-P, TPU, TPUH-BO, TPU-LH, TPU-P, TPUT-LH, TPU-USR, TTUP, TTUPH, TTUP-LLPC, TTUP-M, TTUP-P, TTUPT-M 38.1 12

Model No. Equivalent no. of teeth Outer Diameter
mm		 Bore diameter
mm		 Type
TP-C12404T-IW 12 147 Φ30 Split
TPUMF-T　 TPUMF1200F-T, TPUMF1200-T, TPUMF1200-TB 19.05 12

Model No. Number of teeth Pitch Diameter
mm		 Bore diameter
mm		 Type
TPUMF1200T-25-IW 12 73.60 Φ25.3 Integrated type
TPUS　 TPSS, TPUS, TPUS953Y-T-LAP, TPUS-LBP, TPUS-Y-T, TTUPS 38.1 12

Model No. Number of teeth Outer Diameter
mm		 Bore diameter
mm		 Type

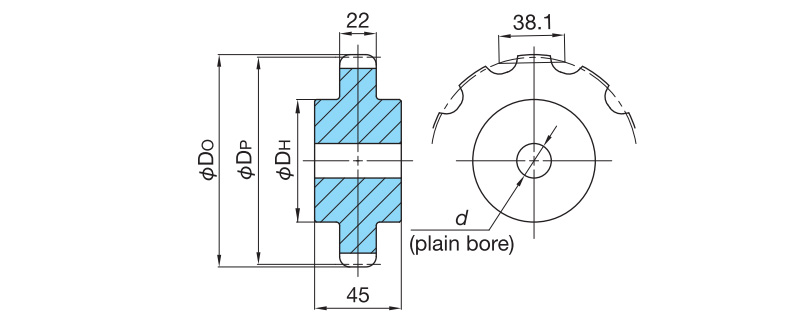

TP-C121■T-IW 12 149.2 Φ30, Φ40 Split
×
(Drag to move. )
Model No. Number of teeth Pitch Diameter
mm		Bore diameter
mm		Type
TP-C12120T-IW 12 149.2 Φ30 Split
TP-C12122T-IW Φ40
TP-UB36　 TP-UB36 36 11, 12, 13

Model No. Equivalent no. of teeth Outer Diameter
mm		 Plain bore Diameter
mm		 Type

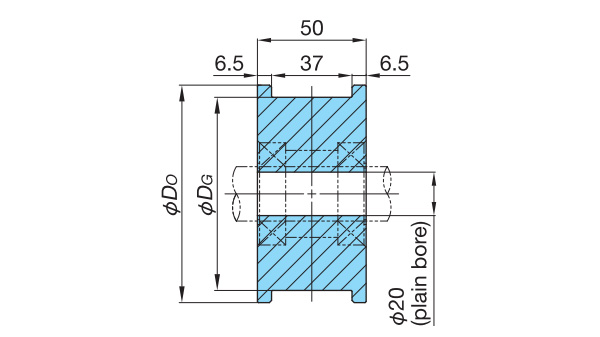

TP-IW36UB1100T 11 112 Φ20 Integrated type
TP-IW36UB1200T 12 124
TP-IW36UB1300T 13 136
TPUN　 TP-50UNS, TP-50UNS-D76, TPUN, TPUN535-LH, TPUN550-LH 50 8, 10


Model No. Number of teeth Outer Diameter
mm		 Bore diameter
mm		 Type
TP-C12737T-IW 8 136.3 Φ30 Integrated type
TP-C12741T-IW 10 165.1 Φ25
TP-50UNS　 TP-50UNS, TPUN 50 10

Model No. Equivalent no. of teeth Outer Diameter
mm		 Bore diameter
mm		 Type
TP-IW50UNS10-■ 10 157.0 Φ30.5, Φ40.5 Split
×
(Drag to move. )
Model No. Equivalent no. of teeth Outer Diameter
mm		Bore diameter
mm		Type
TP-IW50UNS10-30 10 157.0 Φ30.5 Split
TP-IW50UNS10-40 Φ40.5
TP-30UTW-LAP　 TP-30UTW-LAP 30 15


Model No. Equivalent no. of teeth Outer Diameter
mm		 Plain bore Diameter
mm		 Type
TP-IW30UTW-15T20 15 138.0 Φ20 Integrated type
Model No. Equivalent no. of teeth Outer Diameter
mm		 Plain bore Diameter
mm		 Type
TP-IWB30UTW-15T25 15 138.0 Φ25 Integrated type
TP-36UTW-LAP　 TP-36UTW-LAP 36 13

Model No. Equivalent no. of teeth Outer Diameter
mm		 Plain bore Diameter
mm		 Type

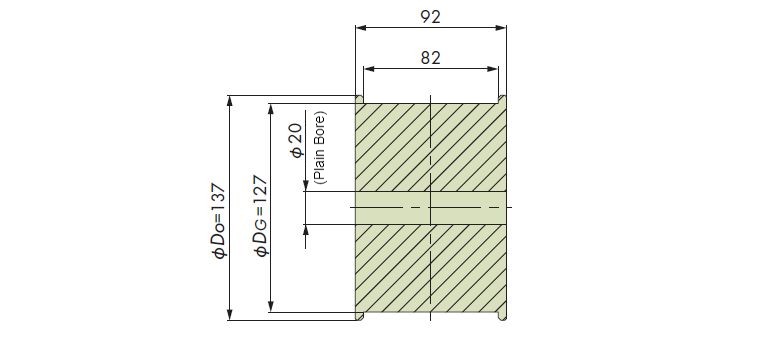

TP-IW36UTW-13T 13 137 Bore shape and size are
made-to-order. 		Integrated type

Disconnecting and Connecting Tools

Accessory name
(Click here for a list
of all series. )		 Applicable chain number
Disconnecting and Connecting Tools 　 TTP, TPS, TPU, TTUP


Applicable Chains Model No. Application
TTP826, TTP1143 TTP-KV-AST Disconnecting and Connecting
TPS, TTUP, TPU826-KV TPS-TPU-KV-AST Disconnecting and Connecting
