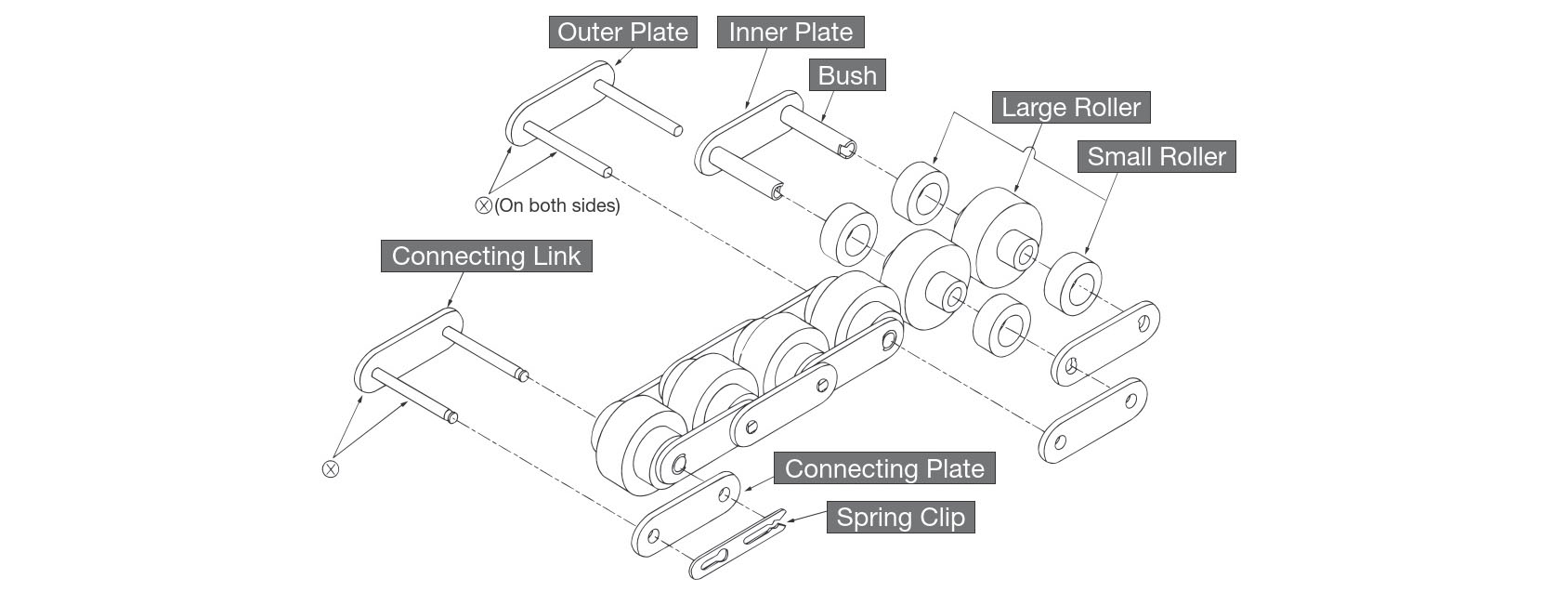

Double Plus Free Flow Chains

  • A free flow chain that allows for high speed conveyance at 2.5x the chain's speed thanks to a combination of small and large diameter rollers. Enables quiet accumulation as well.
  • We offer a line-up of Snap Cover Chains to prevent parts from falling into the frame.
  • Select from either engineering plastic or steel rollers to match your application needs.
  • In addition to our standard series, Tsubaki offers Lambda Series, hardened chrome plating, and Stainless Steel Series as well.

List of Model Numbers

※ Click the model No. for detailed information.

※ Please refer to the Selection Guide for features and applications of each specifications.

Double Plus Free Flow Chains

Pitch
mm
Plastic roller Steel
roller
Roller dia.
mm
Inner width
of inner link
mm
Standard Series Lambda Series Hardened
chrome plating
Stainless Steel Package
19.05 RF2030VRPA RF2030VRPA-LMC RF2030VRPA-HCP RF2030VRPA-SS RF2030VR 11.91 8.0
RF2030VRPB RF2030VRPB-LMC RF2030VRPB-HCP RF2030VRPB-SS ---
RF2030VRPC RF2030VRPC-LMC RF2030VRPC-HCP RF2030VRPC-SS
RF2030VRPD RF2030VRPD-LMC RF2030VRPD-HCP RF2030VRPD-SS
RF2030VRPUA RF2030VRPUA-LMC RF2030VRPUA-HCP RF2030VRPUA-SS
RF2030VRPUB RF2030VRPUB-LMC RF2030VRPUB-HCP RF2030VRPUB-SS
25.40 RF2040VRPA RF2040VRPA-LMC RF2040VRPA-HCP RF2040VRPA-SS RF2040VR 15.88 10.3
RF2040VRPB RF2040VRPB-LMC RF2040VRPB-HCP RF2040VRPB-SS ---
RF2040VRPC RF2040VRPC-LMC RF2040VRPC-HCP RF2040VRPC-SS
RF2040VRPD RF2040VRPD-LMC RF2040VRPD-HCP RF2040VRPD-SS
31.75 RF2050VRPA RF2050VRPA-LMC RF2050VRPA-HCP RF2050VRPA-SS RF2050VR 19.05 13.0
RF2050VRPB RF2050VRPB-LMC RF2050VRPB-HCP RF2050VRPB-SS ---
RF2050VRPC RF2050VRPC-LMC RF2050VRPC-HCP RF2050VRPC-SS
RF2050VRPD RF2050VRPD-LMC RF2050VRPD-HCP RF2050VRPD-SS
38.10 RF2060VRPA RF2060VRPA-LMC RF2060VRPA-HCP RF2060VRPA-SS RF2060VR 22.23 15.5
RF2060VRPB RF2060VRPB-LMC RF2060VRPB-HCP RF2060VRPB-SS ---
RF2060VRPC RF2060VRPC-LMC RF2060VRPC-HCP RF2060VRPC-SS
RF2060VRPD RF2060VRPD-LMC RF2060VRPD-HCP RF2060VRPD-SS
50.80 RF2080VRPA RF2080VRPA-LMC RF2080VRPA-HCP RF2080VRPA-SS --- 28.58 20.0
RF2080VRPB RF2080VRPB-LMC RF2080VRPB-HCP RF2080VRPB-SS
RF2080VRPC RF2080VRPC-LMC RF2080VRPC-HCP RF2080VRPC-SS
RF2080VRPD RF2080VRPD-LMC RF2080VRPD-HCP RF2080VRPD-SS

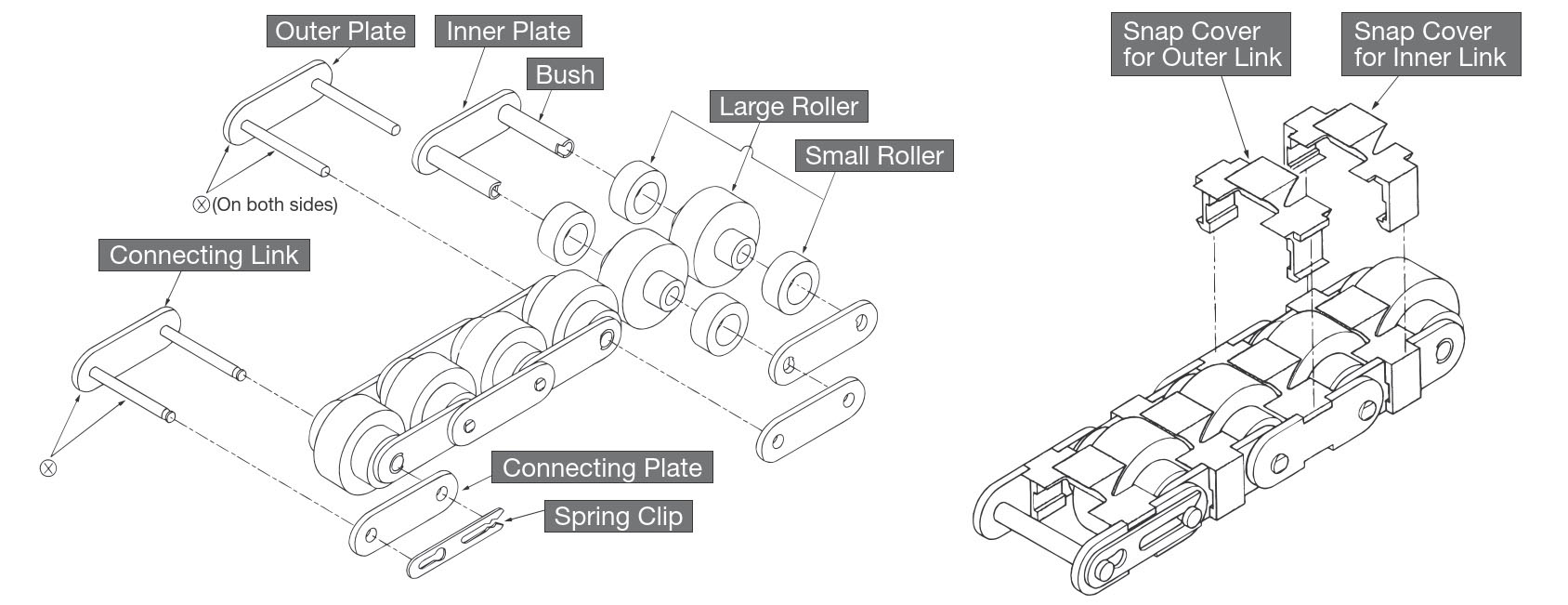

Double Plus Snap Cover Chain

Pitch
mm
Plastic roller Steel
roller
Roller dia.
mm
Inner width
of inner link
mm
Standard Series Lambda Series Hardened chrome plating Stainless Steel Package
19.05 RF2030VRPA-SC RF2030VRPA-LMC-SC RF2030VRPA-HCP-SC RF2030VRPA-SS-SC RF2030VR-SC 11.91 8.0
RF2030VRPB-SC RF2030VRPB-LMC-SC RF2030VRPB-HCP-SC RF2030VRPB-SS-SC ---
RF2030VRPC-SC RF2030VRPC-LMC-SC RF2030VRPC-HCP-SC RF2030VRPC-SS-SC
RF2030VRPD-SC RF2030VRPD-LMC-SC RF2030VRPD-HCP-SC RF2030VRPD-SS-SC
RF2030VRPUA-SC RF2030VRPUA-LMC-SC RF2030VRPUA-HCP-SC RF2030VRPUA-SS-SC
RF2030VRPUB-SC RF2030VRPUB-LMC-SC RF2030VRPUB-HCP-SC RF2030VRPUB-SS-SC
25.40 RF2040VRPA-SC RF2040VRPA-LMC-SC RF2040VRPA-HCP-SC RF2040VRPA-SS-SC RF2040VR-SC 15.88 10.3
RF2040VRPB-SC RF2040VRPB-LMC-SC RF2040VRPB-HCP-SC RF2040VRPB-SS-SC ---
RF2040VRPC-SC RF2040VRPC-LMC-SC RF2040VRPC-HCP-SC RF2040VRPC-SS-SC
RF2040VRPD-SC RF2040VRPD-LMC-SC RF2040VRPD-HCP-SC RF2040VRPD-SS-SC
31.75 RF2050VRPA-SC RF2050VRPA-LMC-SC RF2050VRPA-HCP-SC RF2050VRPA-SS-SC RF2050VR-SC 19.05 13.0
RF2050VRPB-SC RF2050VRPB-LMC-SC RF2050VRPB-HCP-SC RF2050VRPB-SS-SC ---
RF2050VRPC-SC RF2050VRPC-LMC-SC RF2050VRPC-HCP-SC RF2050VRPC-SS-SC
RF2050VRPD-SC RF2050VRPD-LMC-SC RF2050VRPD-HCP-SC RF2050VRPD-SS-SC
38.10 RF2060VRPA-SC RF2060VRPA-LMC-SC RF2060VRPA-HCP-SC RF2060VRPA-SS-SC RF2060VR-SC 22.23 15.5
RF2060VRPB-SC RF2060VRPB-LMC-SC RF2060VRPB-HCP-SC RF2060VRPB-SS-SC ---
RF2060VRPC-SC RF2060VRPC-LMC-SC RF2060VRPC-HCP-SC RF2060VRPC-SS-SC
RF2060VRPD-SC RF2060VRPD-LMC-SC RF2060VRPD-HCP-SC RF2060VRPD-SS-SC
50.80 RF2080VRPA-SC RF2080VRPA-LMC-SC RF2080VRPA-HCP-SC RF2080VRPA-SS-SC --- 28.58 20.0
RF2080VRPB-SC RF2080VRPB-LMC-SC RF2080VRPB-HCP-SC RF2080VRPB-SS-SC
RF2080VRPC-SC RF2080VRPC-LMC-SC RF2080VRPC-HCP-SC RF2080VRPC-SS-SC
RF2080VRPD-SC RF2080VRPD-LMC-SC RF2080VRPD-HCP-SC RF2080VRPD-SS-SC

Combination of base chain and rollers

Select from a combination of four base chain and seven roller types (marked with a circle below) to match your application needs.
The same combinations are also available with snap covers.

Base chain
(specifications, material, application)
Engineering plastic rollers Urethane lining ※1 Steel roller
VRPA
General use
type
VRPB
High friction
type
VRPC
Electroconductive
type
VRPD
Electroconductive
high friction type
VRPUA
General use
type
VRPUB
High friction
type
VR
Code when ordering A B C D UA UB None
Standard Series
(steel)
HCP Series
(Hardened chrome plating)
For applications where rust is to be avoided, such as clean rooms.
---
SS Series
(18-8 SUS, SUS340 equivalent)
For applications where magnetism and rust are to be avoided ※2
---
Lambda Series
(lube-free, standard base chain)
For application where it is impossible or undesirable to lubricate
---

※1. Urethane lining available for RF2030VRP only.

※2. There is slight magnetism from plastic deformation during part processing and assembly. Contact a Tsubaki representative if absolutely no magnetism is required.


Roller (by need)

Select from a combination of four base chain and seven roller types (marked with a circle below) to match your application needs.
The same combinations are also available with snap covers.

Package Roller Need Lubrication Atmosphere
Large diameter roller
( ) indicates color
Small diameter roller
( ) indicates color
VRPA
General use type
Normal
(brown)
Normal
(gray)
10dB quieter than general use outboard roller chain with plastic rollers Can be used with no additional lubrication.
Lambda Chain requires no additional lubrication during use.
Uses engineering plastic rollers and so cannot be used in contact with water, even if the base chain is HCP or SS Series.
VRPB
High friction type
High friction
(cream)
Quick start-up
Low Noise

※1. Urethane lining available for RF2030VRP only.

※2. There is slight magnetism from plastic deformation during part processing and assembly. Contact a Tsubaki representative if absolutely no magnetism is required.

Roller VRPA VRPB VRPC VRPD VRPUA VRPUB VR
Code when ordering A B C D UA UB NO
Appearance


Low Noise



Low Noise
