Cable carrier accessories Guide Channels for Gliding Arrangement
- Guide channels for gliding arrangement of plastic series
- ・Channel body is made of aluminium, making it lightweight and easy to handle.
- ・Guide channel joints at connections have an original structure that prevents misalignment of the joints, so it can be installed accurately and quickly.
- ・A set of guide fixing components is also available.
Structure and construction / installation
Construction

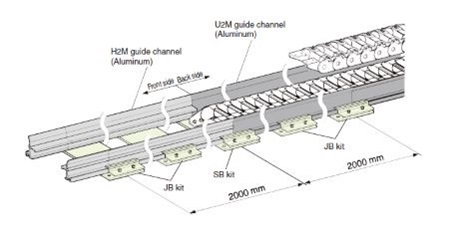

This part is composed of two types of guide channels: H2M guide channel (front side) and U2M guide channel (back side). This part can be used alone, however, there are two fastening bases (SB kit and JB kit) that can be used to easily install guide channels to the mounting surface quickly and precisely.
Guide channel clamps (RCL06) can be used to easily align guide channel joints at connections. Guide channels and guide channel clamps can also be used alone.
Note) 1．Guide channels are made of aluminum, anodized, and painted silver.
2．Fasten guide channels every meter.

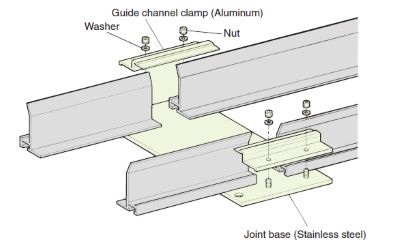

■JB kit

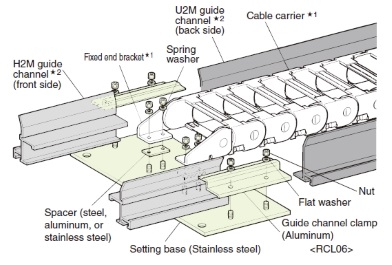

■SB kit
Note) 1．Cable carriers and fixed end brackets are sold separately.
2．Guide channels are not included in JB kit and SB kit.
3．Setting base has a structure to which the fixed end bracket of cable carrier can be installed. Other dimensions are the same as joint base.
4．Guide channels will wear down quickly when a travel speed is high. Contact a Tsubaki representative for further information.
5．Guide channels will also wear down quickly in environments where dust, debris, or other matter is allowed to accumulate.
6．Do not install and use outdoors.
7．Guide channels will shrink and expand when used in locations with large temperature differences. Allow sufficient leeway at guide channel joints for shrinking and expansion.
Click here for the guide channel construction and installation manual.
List of Models
※Click the name for more information.
| Cable carrier | Guide channel model number | Fastening base model number | ||
|---|---|---|---|---|
| H guide channel （H2M） | U guide channel （U2M） | JB kit | SB kit | |
| TKP45H25-30W38 | TKP45H25-H2M | TKP45H25-U2M | TKP45H25W38-JB | TKP45H25W38-SB |
| TKP45H25-30W58 | TKP45H25W58-JB | TKP45H25W58-SB | ||
| TKP45H25-30W78 | TKP45H25W78-JB | TKP45H25W78-SB | ||
| TKP45H25-30W103 | TKP45H25W103-JB | TKP45H25W103-SB | ||
| TKP58H39-30W50 | TKP58H39-H2M | TKP58H39-U2M | TKP58H39W50-JB | TKP58H39W50-SB |
| TKP58H39-30W75 | TKP58H39W75-JB | TKP58H39W75-SB | ||
| TKP58H39-30W100 | TKP58H39W100-JB | TKP58H39W100-SB | ||
| TKP58H39-30W125 | TKP58H39W125-JB | TKP58H39W125-SB | ||
| TKP58H39-30W50・with gliding shoe | TKP58H39-H2M | TKP58H39-U2M | TKP58H39W50GS-JB | TKP58H39W50GS-SB |
| TKP58H39-30W75・with gliding shoe | TKP58H39W75GS-JB | TKP58H39W75GS-SB | ||
| TKP58H39-30W100・with gliding shoe | TKP58H39W100GS-JB | TKP58H39W100GS-SB | ||
| TKP58H39-30W125・with gliding shoe | TKP58H39W125GS-JB | TKP58H39W125GS-SB | ||
| TKP62H34W150 | TKP62H34-H2M | TKP62H34-U2M | TKP62H34W150-JB | TKP62H34W150-SB |
| TKP62H34W200 | TKP62H34W200-JB | TKP62H34W200-SB | ||
| TKC34H25W50 | TKC34H25-H2M | TKC34H25-U2M | TKC34H25W50-JB | TKC34H25W50-SB |
| TKC34H25W90 | TKC34H25W90-JB | TKC34H25W90-SB | ||
| TKC34H25W130 | TKC34H25W130-JB | TKC34H25W130-SB | ||
| TKC47H36W80 | TKC47H36-H2M | TKC47H36-U2M | TKC47H36W80-JB | TKC47H36W80-SB |
| TKC47H36W160 | TKC47H36W160-JB | TKC47H36W160-SB | ||
