PX Belt RC Type

Product photo
  • Improved materials based on the PX belt with rational arc tooth profile based on precise engaging theory.
    Evolution to a clean and eco-friendly synchronous belt.

Features

  • ・Clean ： The tooth fabric treatment method has been changed to reduce the scattering of rubber powder, enabling clean power transmission.
  • ・Long service life ： Longer life can be expected in multi-axis layouts due to increased bending fatigue resistance. ※1
  • ・The number of belt re-tensioning cycles is reduced due to less elongation. ※2
  • ・The tooth fabric has been changed from black to beige, making it easier to see and judge the life of chipped teeth.

1．Clean

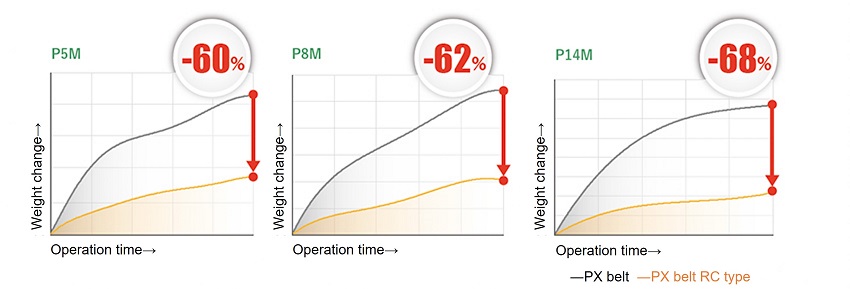

Weight change

Clean

2．Longevity

Bending fatigue resistance

Longevity

3．Reduced operating elongation

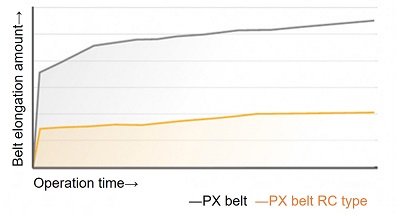

Belt elongation change with operating time

Reduced operating elongation

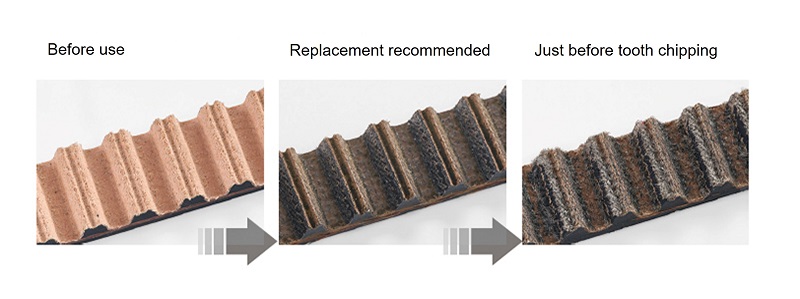

4．Visualization of lifespan determination

Visualization of lifespan determination

※1　Excluding P2M, P3M, and P14M.
※2　Excluding P2M and P3M.

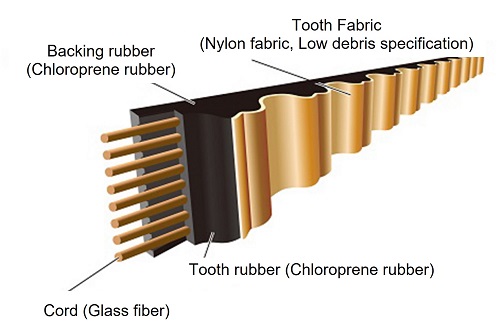

Construction

Construction

Catalogs ・Instruction Manuals

Model No. examples

BG 300 P 5M 10 - RC
｜
｜
｜		 ｜
Belt length
mm		 ｜
｜
｜		 ｜
Types
(pitch) 		｜
Belt width
mm		 ｜
Package
Synchronous belt P：PX
UP：Ultra PX

List of Models

※Click the name for more information.

Pitch
mm		 Base Model No. Belt width 　mm
10 15 25 40 60 80 100 120
5 P5M10-RC ○
P5M15-RC ○
P5M25-RC ○
8 P8M15-RC ○
P8M25-RC ○
P8M40-RC ○
P8M60-RC ○
14 P14M40-RC ○
P14M60-RC ○
P14M80-RC ○
P14M100-RC ○
P14M120-RC ○
