FLATVEYOR ZP Type

Product photo
  • Freestanding flat cable systems with openable structures.
  • ・Achieves ISO Class 2 cleanliness and contributes to yield rate improvement.
    (Based on test results by Germany’s Fraunhofer Institute for Manufacturing Engineering and Automation (IPA) )
  • ・Developed Tsubaki's original openable tube with good bending properties, durability, and slidability.
  • ・Cables/tubes can be stored and replaced, making them easy to take in and out.
  • ・Standardised up to 8 openable tubes
  • ・RoHS Compliant Product (Excluding cables and tubes to be stored )

Catalogs ・Instruction Manuals

Features

1.Adoption of Tsubaki's proprietary openable tube.

Tubes with good bending properties, durability and slidability have been developed.

The locking part is easy to open and close, and has a zip construction that does not open when moving.

Tsubaki FLATVEYOR ZP Type

2.Cables and tubes can be stored and replaced

Cables and tubes can be stored and replaced by opening and closing the locking part.

Tsubaki FLATVEYOR ZP Type

3.Low dust generation and low noise

Suppresses the scattering of wear debris from the support member and reduces the generation of wear debris from the locking part. Achieves cleanliness ISO class 2.

The unique short-pitch structure and the sound insulation effect of the tube for the support member reduce noise during operation.

4.Two exterior colors are available

Black and white colours are available. Colours can be selected to suit the equipment and operating environment.

black white
black white

5.Easy insertion and removal of cables and tubes

No screwdriver or hammer is required to open and close the openable tube.

Can be opened easily by hand and closed securely with the closing tool. (Can also be closed by hand).

6.Reduction of equipment downtime losses

Bending restrictions protect cables and tubes while maintaining the path, and contribute to reducing the risk of wire breakage by providing secure support and guidance.

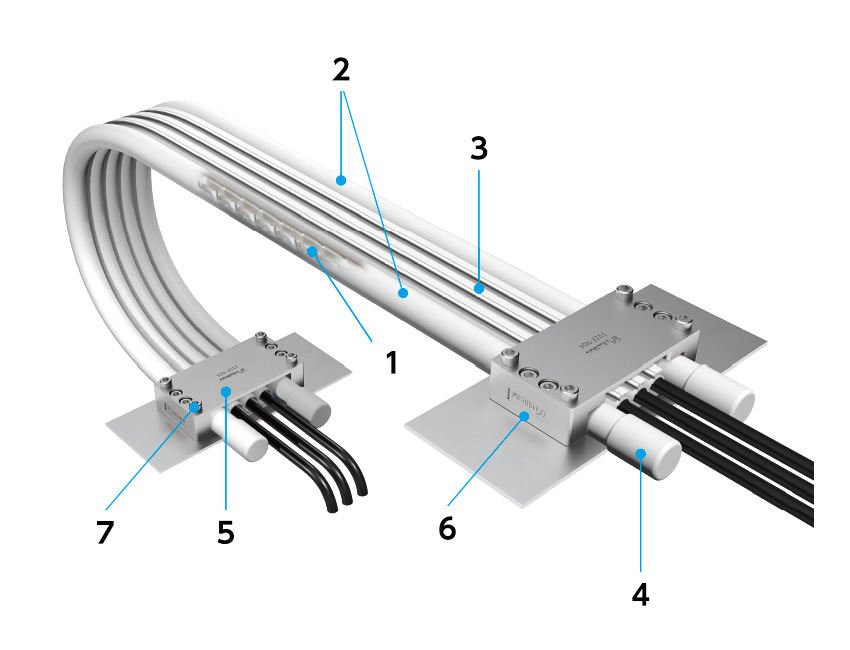

Construction

Construction

1.Support member (Material :Engineering plastic )

Built them in the support member tubes on both sides and support the cable tube


2.Support member tube (Material :PVC)

Sealed structure prevents wear debris from scattering from support members


3.Openable tube (Material :PVC)

Stores cables and tubes


4.Cap (Material :PVC)

Support member retention
