Jaw-Flex coupling  LN Series  (Elastomer Coupling )

Product photo
  • Delivers more vibration damping than our existing products by employing new material for the spider.
  • It also provides backlash-free torque transmission and superior shock absorption at servomotor drives.
  • ・Applicable shaft diameter :Φ12mm~Φ42mm
  • ・Torque range :60~405N・m

Features

  • ・Excellent for vibration resistance at servomotor drives and shock absorption during startup and stopping.
  • ・With the combination of the optimally designed spider and hub, this Jaw-Flex Coupling series is capable of transmitting torque without backlash.
  • ・You can choose from between two types of spiders: 98A excellent for vibration damping; and 64D with high torsional stiffness and wear resistance.
  • ・Simply constructed with two hubs and one spider, uses a clamp shaft coupling method, making this coupling extremely easy to install.
  • ・Available for Taper-Lock Series. Contact a Tsubaki representative.

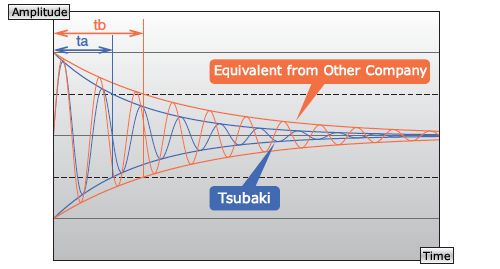

Example of Vibration Damping Comparison (Equivalent to LN28-98A1 )

Example of Vibration Damping Comparison

Line-up

Model No. Spider Spider performance torque Torsional Rigidity
N・m/rad
Hardness Color Normal use (N・m) Maximum (N・m)
LN24 98A Red 60 120 2200
64D Green 75 150 5400
LN28 98A Red 160 320 4000
64D Green 200 400 8800
LN38 98A Red 325 650 6600
64D Green 405 810 14600

Construction

・Clamp type


Clamp type

・Taper-Lock type


Taper-Lock type

Catalogs ・Instruction Manuals

Model No. examples

LN 24 U 98A1 - A 15 C X A 20 C
Size Spider type Left hub   Left hub Right hub   Right hub
98A1:98A Shaft Bore Diameter Shaft clamping type Shaft Bore Diameter Shaft clamping type
Jaw-flex 64D1:64D C:Clamp C:Clamp
Coupling Material of left hub Material of right hub
LN Series Spider material A:Aluminum A:Aluminum
U:Polyurethane
