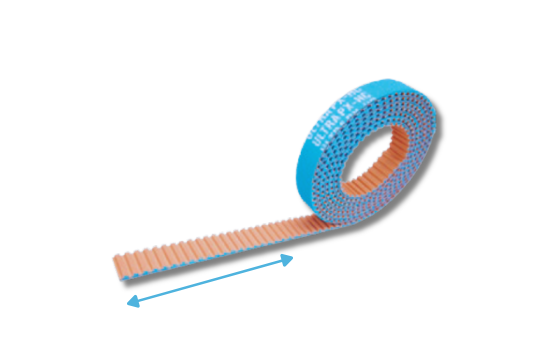

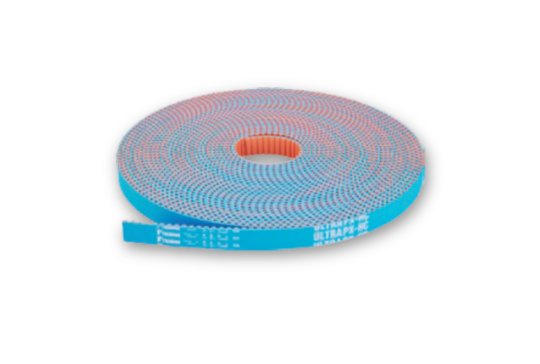

Open-ended Belt

  • Ideal on trolley drives or for opening doors.
  • Can be used on long drives where endless belts cannot.
  • We offer Ultra PX Belt HC Type in addition to PX Belts to meet our customers' needs for high load transmission.

List of Models

※Click the name for more information.

Belt types Pitch
mm
Base Model No. Available lengths
m
Belt width mm
4 6 10 15 20 25
PX Belt 2 P2M4 105
P2M6 70
P2M10 45
3 P3M6 110
P3M10 65
P3M15 45
5 P5M10 130
P5M15 85
P5M20 65
P5M25 50
8 P8M15 85
P8M20 65
P8M25 50
Ultra PX Belt
HC Type
3 UP3M6-HC 110
UP3M10-HC 65
UP3M15-HC 45
5 UP5M10-HC 130
UP5M15-HC 85
UP5M20-HC 65
UP5M25-HC 50
8 UP8M15-HC 85
UP8M20-HC 65
UP8M25-HC 50
Ultra PX belt
oil proof type
5 UP5M15-HA 85
UP5M25-HA 50
8 UP8M15-HA 85
UP8M25-HA 50
