Chain cutting tools
- Several tools for cutting chain to the desired length.
- Cradle ・Chain vises
- Punch (Primary Punch ・Secondary Punch )
- Chain screw
- Poly Steel Chain Cutting Tools ・Lambda chain cutting tools
Catalogs ・Instruction Manuals
Chain cradle, chain vice
Cuts chain together with a chain punch.
Usage examples
Set the roller chain in the chain vise to secure it.
Can be used to secure the chain when grinding the pin heads off with a grinder.
Types
[Click to enlarge ]
| Model No. | Applicable Chains | Dimensions | Standard Price | Delivery | ||||
|---|---|---|---|---|---|---|---|---|
| 1列 | 2列 | 3列 | L | H | B | |||
| RS-CR1 | RS15 | - | - | 50 | 16.4 | 20 | Contact us for details. | Contact us for details. |
| RS-CR2 | RS25 | - | - | 50 | 19 | 20 | Contact us for details. | Contact us for details. |
| RS-CR3 | RS35 | - | - | 60 | 30 | 30 | Contact us for details. | Contact us for details. |
| RS-CV1 | RS40～80 | RS40 | - | 100 | 65 | 94～115 | Contact us for details. | Contact us for details. |
| RS-CV2 | PS40～160 | RS40～100 | RS40～100 | 180 | 110 | 120～151 | Contact us for details. | Contact us for details. |
| RS-CV3 | RS80～240 | RS80～160 | RS80～100 | 200 | 170 | 180～220 | Contact us for details. | Contact us for details. |
Punch (Primary Punch ・Secondary Punch )
Primary Punch
Secondary Punch
The primary punch is the first punch to use when cutting the chain.
Secondary punch used after the primary punch to remove the pin.
[Click to enlarge ]
Primary punch
| Model No. | L mm |
Applicable Chains | Standard Price | Delivery |
|---|---|---|---|---|
| RS-P11 | 52 | RS15,RS25,RS35 | Contact us for details. | Contact us for details. |
| RS-P14 | 60 | RS40～60 | Contact us for details. | Contact us for details. |
| RS-P15 | 70 | RS80～120 | Contact us for details. | Contact us for details. |
| RS-P16 | 80 | RS140～240 | Contact us for details. | Contact us for details. |
Secondary punch
| Model No. | L mm |
Applicable Chains | Standard Price | Delivery |
|---|---|---|---|---|
| RS-P21 | 65 | RS15 | Contact us for details. | Contact us for details. |
| RS-P22 | 70 | RS25 | Contact us for details. | Contact us for details. |
| RS-P23 | 80 | RS35 | Contact us for details. | Contact us for details. |
| RS-P24 | 80 | RS40～60 | Contact us for details. | Contact us for details. |
| RS-P25 | 90 | RS80～120 | Contact us for details. | Contact us for details. |
| RS-P26 | 120 | RS140～240 | Contact us for details. | Contact us for details. |
※RS-P11 is for RS15, RS25, and RS35 chains.
Chain Breaker
This specialized tool allows users to disassemble roller chains while still on the equipment.
Usage examples
[Click to enlarge ]
| Model No. | L mm |
Applicable Chains | Standard Price | Delivery | |
|---|---|---|---|---|---|
| Chain No. | No. of strands |
||||
| RS-CS-A1 | 116 | RS25 | 1 | Contact us for details. | Contact us for details. |
| RS-CS-A2 | 119 | RS35 | 1 | Contact us for details. | Contact us for details. |
| RS-CS-A3 | 119 | RS41 | 1 | Contact us for details. | Contact us for details. |
| RS-CS-A4 | 119 | RF06B | 1 | Contact us for details. | Contact us for details. |
| RS-CS-B1 | 185 | RS40～60 | 1, 2 | Contact us for details. | Contact us for details. |
| RS-CS-C1 | 222 | RS80・100 | 1, 2 | Contact us for details. | Contact us for details. |
| RS-CS-C2 | 290 | RS120・140 | 1, 2 | Contact us for details. | Contact us for details. |
| RS-CS-C3 | 708 | RS160～240 | 1, 2 | Contact us for details. | Contact us for details. |

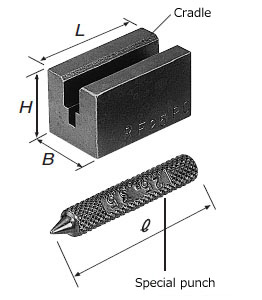

Poly Steel Chain Cutting Tools
Standard chain cutting tools cannot be used with Poly Steel Chain. A special Poly Steel Chain vise and punch are needed.
[Click to enlarge ]
| Model No. | L | H | B | ℓ | Applicable Chains | Standard Price | Delivery |
|---|---|---|---|---|---|---|---|
| RS-PC01-AST | 35 | 20 | 20 | 52 | RS25-PC-1 | Contact us for details. | Contact us for details. |
| RS-PC02-AST | 50 | 30 | 30 | 52 | RS35-PC-1 | Contact us for details. | Contact us for details. |
| RS-PC03-AST | 65 | 35 | 35 | 56 | RS40-PC-1 | Contact us for details. | Contact us for details. |
| RS-PC04-AST | 80 | 40 | 35 | 56 | RS50-PC-1 | Contact us for details. | Contact us for details. |
| RS-PC05-AST | 100 | 45 | 40 | 56 | RS60-PC-1 | Contact us for details. | Contact us for details. |
Lambda chain cutting tools
A special vise and a primary and secondary punch are needed to cut Lambda Chain.
[Click to enlarge ]
| Model No. | L | H | B | Applicable Chains | Standard Price | Delivery |
|---|---|---|---|---|---|---|
| RS-LMD01-AST | 65 | 32 | 32 | RS40-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD02-AST | 80 | 40 | 40 | RS50-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD03-AST | 95 | 48 | 48 | RS60-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD04-AST | 130 | 60 | 60 | RS80-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD05-AST | 160 | 73 | 73 | RS100-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD06-AST | 160 | 88 | 88 | RS120-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD07-AST | 180 | 98 | 98 | RS140-LMD-1 | Contact us for details. | Contact us for details. |
| RS-LMD08-AST | 200 | 114 | 114 | RS160-LMD-1 | Contact us for details. | Contact us for details. |
