Sprockets for Water Treatment Chain

- Chain life is greatly affected by how it engages the sprockets.
- These tooth block sprocket developed for corrosion and wear resistance can be manufactured to meet any material or dimensional requirements.
List of Models

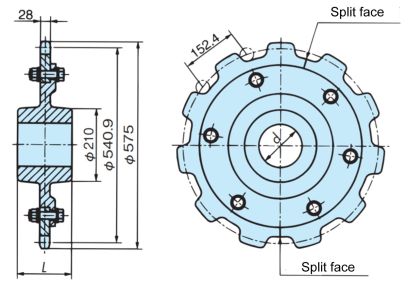

Sprocket for sediment collector ACP, ACR, and ACS types

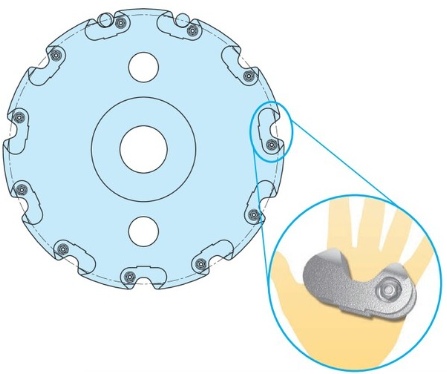

In addition to the integrated type, we also offer a lineup of replaceable tooth types (block and ring replaceable teeth).
No need to disassemble the shaft, significantly reducing replacement time while cutting part costs and waste.
Contributes to improved maintenance efficiency, reduced costs, and reduced waste.

・Registered product with the Sewage Works Agency's Private Development Technology Review and Guarantee Report. Numerous delivery records.
・The tooth section can be replaced without removing it from the shaft. Mass ratio is also reduced by approximately 30%. Lightweight design facilitates transport and handling (except when stuck)
・If the main unit does not need to be replaced, this further reduces costs, shortens delivery times, and minimizes waste.

Model No. :
ACP04152/P~、ACR8□□~、ACS□□□□□~
Size :
ACP04152
ACR810~ACR819
ACS13~ACS35
Water Screen sprocket JAC type
This is a sprocket for JAC-type water treatment conveyor chains used in water screens, drainage machines, and similar equipment.
In addition to the integrated type, we also offer a lineup of replaceable tooth types (ring replaceable teeth), which significantly reduces replacement time, parts costs and waste by replacing only the sprocket or worn part without the need to disassemble the shaft, contributing to improved maintenance efficiency, cost reduction, and waste reduction.
Model No. :
JAC□□□□□~
Size :
JAC08tons~JAC26tons
JAC6205
Water treatment conveyor sprocket BF type
This is a sprocket for BF-type drive chains used in water treatment facilities.
In addition to the integrated type, we also offer a lineup of two-piece (C-split type) and replaceable tooth type (ring-type replaceable teeth).
Significantly reduces replacement time and allows for replacement of only the sprocket or worn parts without disassembling the shaft.
Contributes to improved maintenance efficiency, reduced costs, and reduced waste.
Model No. :
BF□□□~
Size :
BF120~BF240
Water treatment conveyor sprocket ACRD type
This is a sprocket for ACRD type drive chains used in water treatment facilities.
In addition to the integrated type, we also offer a lineup of two-piece (C-split type) and replaceable tooth type (ring-type replaceable teeth).
Significantly reduces replacement time, parts costs and waste by replacing only the sprocket or worn part without the need to disassemble the shaft, contributing to improved maintenance efficiency, cost reduction, and waste reduction.
Model No. :
ACRD□□~
Size :
ACRD08~ACRD17
