PX Belt

Product photo
  • PX belts will be sold while supplies last, following the release of the PX belt RC type.
    Click here for details
  • TSUBAKI PX Belt was developed to be a higher performance synchronous belt.
  • Uses a rational circular tooth profile based on minute engagement logic to realize a synchronous belt with dramatically better performance.
  • A wide variety of sizes available makes them useful in improving the performance of various machines.

Features

  • ＊Rational tooth engagement ： Enables high load transmission thanks to a rational circular tooth profile.
  • ＊High tooth jumping torque ： Large belt teeth provide high tooth jumping torque performance.

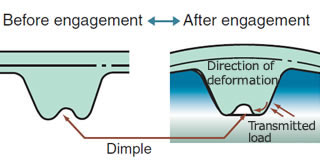

  • ＊Low Noise ： Low noise thanks to the adoption of unique dimples on the tooth ends.
  • ＊High precision ： Both the top and bottom of the belt are flush with the belt sprocket, enabling high precision drive.

Dimple

Dimple

Just Touch System

Just Touch System

Construction

Construction

Catalogs ・Instruction Manuals

Model No. examples

BG 300 P 5M 10
｜
｜
｜		 ｜
Belt length
mm		 ｜
｜
｜		 ｜
Types
(pitch) 		｜
Belt width
mm
Synchronous belt P：PX
UP：Ultra PX

List of Models

※Click the name for more information.

Pitch
mm		 Base Model No. Belt width 　mm
10 15 25 40 60 80 100 120
5 P5M10 ○
P5M15 ○
P5M25 ○
8 P8M15 ○
P8M25 ○
P8M40 ○
P8M60 ○
14 P14M40 ○
P14M60 ○
P14M80 ○
P14M100 ○
P14M120 ○
