下穴シリーズ・フィットボア^®・ロックスプロケット

RS^®ローラチェーン (JIS規格、ISO系規格品) 用のスプロケットです。
豊富な品揃えを標準化しています。
下穴シリーズは、ご使用に際して軸穴加工が必要です。
フィットボア^®もご検討ください。

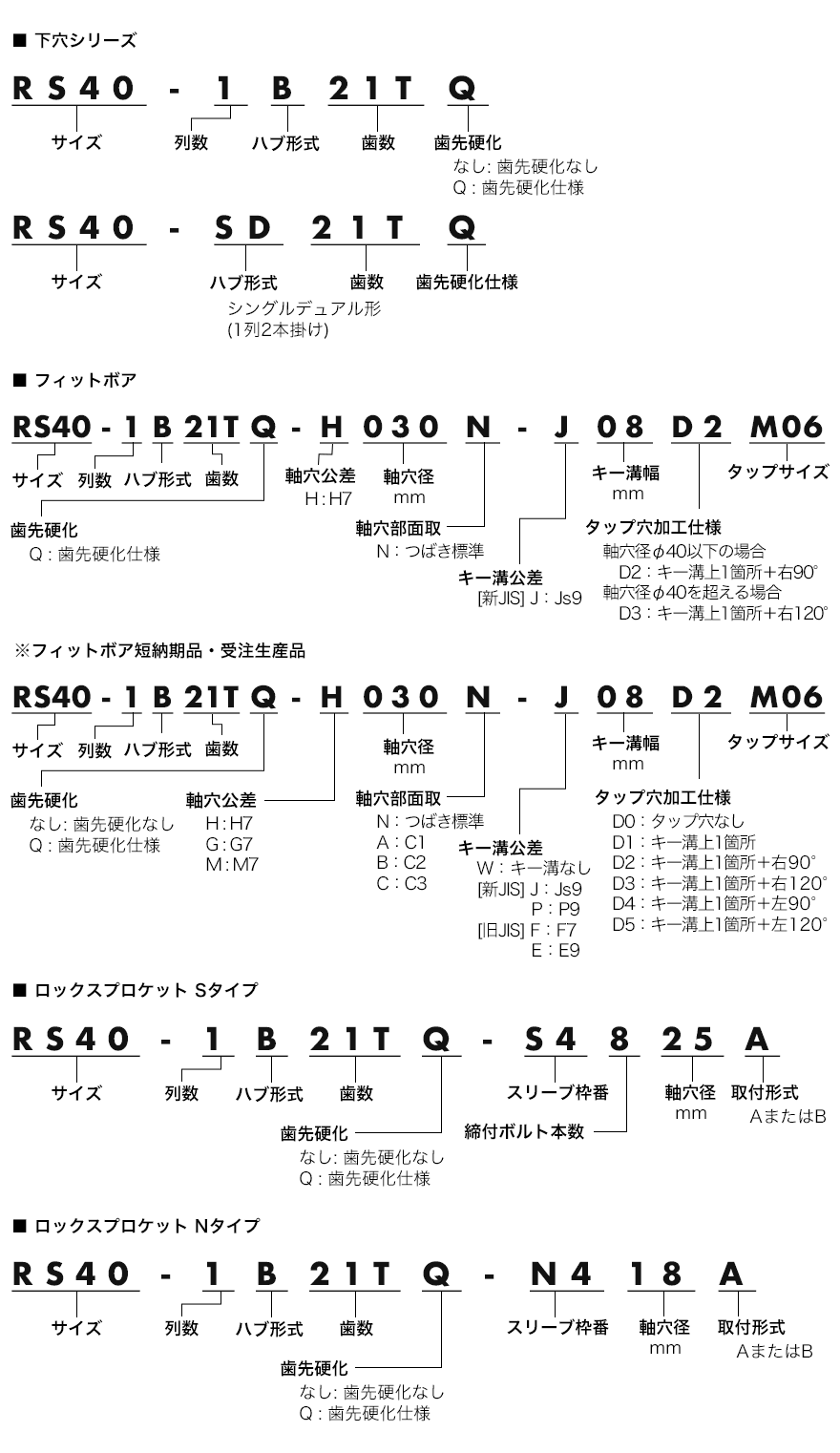

Model No. examples

List of Models

※Click the name for more information.

Size	Type	Steel type							Fit bore	Lock sprocket
	No. of strands	For single strand			For double strand			SD (single dual)	在庫品 (軸穴完成品)	Sタイプ	Nタイプ
	ハブ形式	1A	1B	1C	2A	2B	2C	SD (single dual)	在庫品 (軸穴完成品)	Sタイプ	Nタイプ
	Style
RS15	Base Model No.	---	RS15-1B□T	---	---	---	---	---	---	---	---
RS15	Tooth no. range	---	11T 　～　　35T	---	---	---	---	---	---	---	---
RS25	Base Model No.	---	RS25-1B□T-◇	---	---	---	---	---	---	---	---
RS25	Tooth no. range	---	10T 　～　　32T	---	---	---	---	---	---	---	---
RS35	Base Model No.	---	RS35-1B□T■	---	---	---	---	---	RS35-1B□TQ-H～	RS35-1B□TQ-S○○○○●	RS35-1B□TQ-N○○○●
RS35	Tooth no. range	---	9T 　～　　75T	---	---	---	---	---	9T 　～　　40T	15T 　～　　40T	12T 　～　　40T
RS40	Base Model No.	RS40-1A□T■	RS40-1B□T■	RS40-1C□T■	RS40-2A□T■	RS40-2B□T■	RS40-2C□T■	RS40-SD□TQ	RS40-1B□TQ-H～	RS40-1B□TQ-S○○○○●	RS40-1B□TQ-N○○○●
RS40	Tooth no. range	12T 　～　　75T	9T 　～　　75T	28T 　～　　75T	35T 　～　　60T	12T 　～　　60T	35T 　～　　60T	12T 　～　　25T	9T 　～　　40T	14T 　～　　56T	11T 　～　　40T
RS50	Base Model No.	RS50-1A□T■	RS50-1B□T■	RS50-1C□T■	RS50-2A□T■	RS50-2B□T■	RS50-2C□T■	RS50-SD□TQ	RS50-1B□TQ-H～	RS50-1B□T■-S○○○○●	RS50-1B□TQ-N○○○●
RS50	Tooth no. range	12T 　～　　75T	9T 　～　　75T	28T 　～　　75T	26T 　～　　60T	12T 　～　　60T	26T 　～　　60T	12T 　～　　25T	9T 　～　　35T	14T 　～　　40T	11T 　～　　25T
RS60	Base Model No.	RS60-1A□T■	RS60-1B□T■	RS60-1C□T■	RS60-2A□T■	RS60-2B□T■	RS60-2C□T■	RS60-SD□TQ	RS60-1B□TQ-H～	RS60-1B□T■-S○○○○●	RS60-1B□TQ-N○○○●
RS60	Tooth no. range	12T 　～　　75T	9T 　～　　75T	28T 　～　　75T	23T 　～　　60T	12T 　～　　60T	23T 　～　　60T	12T 　～　　25T	9T 　～　　30T	12T 　～　　40T	9T 　～　　25T
RS80	Base Model No.	RS80-1A□T■	RS80-1B□T■	RS80-1C□T■	RS80-2A□T■	RS80-2B□T■	RS80-2C□T■	RS80-SD□TQ	RS80-1B□TQ-H～	RS80-1B□T■-S○○○○●	---
RS80	Tooth no. range	12T 　～　　75T	9T 　～　　75T	22T 　～　　75T	18T 　～　　60T	12T 　～　　60T	18T 　～　　60T	12T 　～　　18T	9T 　～　　21T	12T 　～　　35T	---
RS100	Base Model No.	RS100-1A□T■	RS100-1B□T■	RS100-1C□T■	RS100-2A□T■	RS100-2B□T■	RS100-2C□T■	---	RS100-1B□TQ-H～	RS100-1B□T■-S○○○○●	---
RS100	Tooth no. range	12T 　～　　75T	10T 　～　　75T	22T 　～　　75T	15T 　～　　60T	12T 　～　　60T	15T 　～　　60T	---	10T 　～　　21T	13T 　～　　21T	---
RS120	Base Model No.	RS120-1A□T■	RS120-1B□T■	RS120-1C□T■	RS120-2A□T■	RS120-2B□T■	RS120-2C□T■	---	---	---	---
RS120	Tooth no. range	12T 　～　　75T	10T 　～　　75T	22T 　～　　75T	14T 　～　　60T	12T 　～　　60T	14T 　～　　60T	---	---	---	---
RS140	Base Model No.	RS140-1A□T■	RS140-1B□T■	RS140-1C□T■	---	---	---	---	---	---	---
RS140	Tooth no. range	10T 　～　　60T	10T 　～　　60T	22T 　～　　60T	---	---	---	---	---	---	---
RS160	Base Model No.	RS160-1A□T■	RS160-1B□T■	RS160-1C□T■	---	---	---	---	---	---	---
RS160	Tooth no. range	10T 　～　　60T	10T 　～　　60T	22T 　～　　60T	---	---	---	---	---	---	---
RS180	Base Model No.	RS180-1A□T■	RS180-1B□T■	RS180-1C□T■	---	---	---	---	---	---	---
RS180	Tooth no. range	11T 　～　　60T	11T 　～　　20T	21T 　～　　60T	---	---	---	---	---	---	---
RS200	Base Model No.	RS200-1A□T■	RS200-1B□T■	RS200-1C□T■	---	---	---	---	---	---	---
RS200	Tooth no. range	11T 　～　　60T	11T 　～　　18T	19T 　～　　60T	---	---	---	---	---	---	---
RS240	Base Model No.	RS240-1A□T■	RS240-1B□T■	RS240-1C□T■	---	---	---	---	---	---	---
RS240	Tooth no. range	11T 　～　　60T	11T 　～　　14T	15T 　～　　60T	---	---	---	---	---	---	---
RF06B	Base Model No.	---	RF06B-1B□T■	---	---	---	---	---	---	---	---
RF06B	Tooth no. range	---	9T 　～　　60T	---	---	---	---	---	---	---	---
RS08B	Base Model No.	RS08B-1A□T■	RS08B-1B□T■	---	---	RS08B-2B□T■	---	---	---	---	---
RS08B	Tooth no. range	12T 　～　　60T	9T 　～　　60T	---	---	12T 　～　　60T	---	---	---	---	---
RS10B	Base Model No.	RS10B-1A□T■	RS10B-1B□T■	---	---	RS10B-2B□T■	---	---	---	---	---
RS10B	Tooth no. range	12T 　～　　60T	9T 　～　　60T	---	---	12T 　～　　60T	---	---	---	---	---
RS12B	Base Model No.	RS12B-1A□T■	RS12B-1B□T■	---	---	RS12B-2B□T■	---	---	---	---	---
RS12B	Tooth no. range	12T 　～　　60T	9T 　～　　60T	---	---	12T 　～　　60T	---	---	---	---	---
RS16B	Base Model No.	RS16B-1A□T■	RS16B-1B□T■	---	---	RS16B-2B□T■	---	---	---	---	---
RS16B	Tooth no. range	12T 　～　　60T	9T 　～　　60T	---	---	12T 　～　　60T	---	---	---	---	---
