Bearing Cage Chains

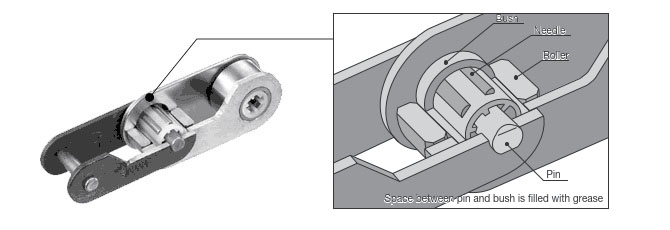

  • Uses a needle bearing cage between pins and bushes (cage is engineering plastic).

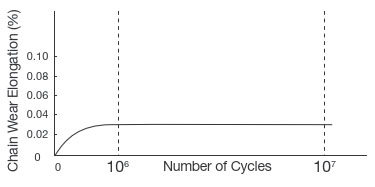

  • Will not elongate further after slight initial elongation (0.03%) during first use.
  • Cheaper than standard Bearing Bush Chain.

List of Model Numbers

※ Click the model No. for detailed information.

Pitch
mm
Chain
size
Roller dia.
mm
Inner width
of inner link
mm
25.40 RF2040R-NC 15.88 7.95
31.75 RF2050R-NC 19.05 9.53
38.10 RF2060R-NC 22.23 12.70
50.80 RF2080R-NC 28.58 15.88
