Plastic top chain 　Curved accumulation chain 　TPUS953Y-T-LAP type

By increasing roller diameter from Φ9.5 of conventional model to Φ11, gaps between rollers is narrow and prevents conveyed products from getting caught.
Roller rotation suppresses scratches on conveyed material.
Coefficient of rolling friction between plastic roller and conveyed product: 0.07

Features

・Free flow rollers on the conveying surface.

Roller rotation suppresses scratches of product and reduces line pressure.

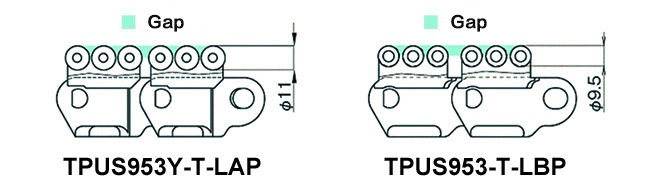

・Increased roller diameter from conventional Φ9.5 to Φ11

Gaps between rollers is narrow and prevents conveyed products from getting caught.

Note) For different sizes, see TPUS-LBP type.

The following are the industries we recommend.

May not be used depending on conveying capacity (conveyor speed), material to be conveyed (weight, shape), environment and application.

Use as a guide when selecting.

Recommended industry /Conveyed material size (●：Recommended ○：Can be used △：Varies depending on conveying conditions. )

Conveying size (Weight )	Industry
Conveying size (Weight )	Can manufacturing	Beverages	Tire	Mechanical parts	Logistics	Pharmaceuticals	Bakery/Food	Secondary battery	Semiconductor ・ Solar panel related
High	△	●	△	●	●	△	△	△	△
Medium	△	●	△	●	●	△	△	△	△
Low	△	●	△	●	●	△	△	△	△

Application

■Conveying paper packs with high friction resistance and and containers that are easy to collapse.
■Applications with accumulation to reduce scratches on the bottom of conveyed object and line pressure .

※Click "model" for more information

Note) Plastic pin type is not available.
