バイピッチ®スプロケット

  • Special Sprocket for Double Pitch Chain.
  • Tsubaki keeps stock of S-rollers from RF2040 to RF2160, and R-rollers from RF2040 to RF2100.
  • 材質は機械構造用炭素鋼の他、ステンレス・エンプラもあります。
  • 全品種歯先硬化処理は施していません。
※ S Type Lock Series Sprocket
  • Sprocket can be easily attached and removed from the shaft without using a key.
  • Has no backlash after mounting (tightening). Phase alignment is a snap, and there is no need for retainers.

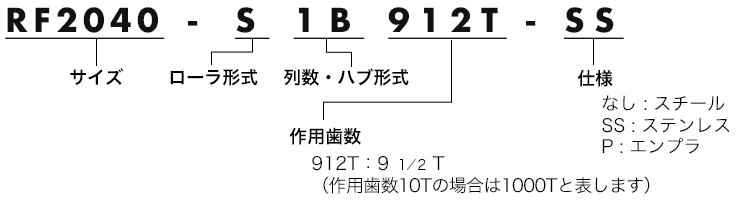

Model No. examples

 Model No. examples

List of Models

※Click the name for more information.

Size Roller
type
Double Pitch sprocket
Pilot Bore Serie ロック
スプロケット
steel Stainless Engineering plastic steel
RF2040 S Base Model No. RF2040S-1B□T RF2040S-1B□T-SS RF2040S-1B□T-P RF2040S-1B□T-S○○○○●
Working number of teeth range
 ~
  12½

 ~
  12½

 ~
  12½

 ~
  12½
RF2050 Base Model No. RF2050S-1B□T RF2050S-1B□T-SS RF2050S-1B□T-P RF2050S-1B□T-S○○○○●
Working number of teeth range
 ~
  12½

 ~
  12½

 ~
  12½

 ~
  12½
RF2060 Base Model No. RF2060S-1B□T RF2060S-1B□T-SS RF2060S-1B□T-P RF2060S-1B□T-S○○○○●
Working number of teeth range
 ~
  12½

 ~
  12½

 ~
  12½

 ~
  12½
RF2080 Base Model No. RF2080S-1B□T RF2080S-1B□T-SS --- RF2080S-1B□T-S○○○○●
Working number of teeth range
 ~
  12½

 ~
  12½

 ~
  12½
RF2100 Base Model No. RF2100S-1B912T RF2100S-1B912T-SS --- RF2100S-1B912T-S○○○○●
Working number of teeth range
RF2120 Base Model No. RF2120S-1B912T RF2120S-1B912T-SS --- ---
Working number of teeth range
RF2160 Base Model No. RF2160S-1B912T RF2160S-1B912T-SS --- ---
Working number of teeth range
RF2040 R Base Model No. RF2040R-1B□T RF2040R-1B□T-SS --- RF2040R-1B□T-S○○○○●
Working number of teeth range 10
 ~
  16
10
 ~
  16
10
 ~
  16
RF2050 Base Model No. RF2050R-1B□T RF2050R-1B□T-SS --- RF2050R-1B□T-S○○○○●
Working number of teeth range 10
 ~
  16
10
 ~
  16
10
 ~
  16
RF2060 Base Model No. RF2060R-1B□T RF2060R-1B□T-SS --- RF2060R-1B□T-S○○○○●
Working number of teeth range 10
 ~
  16
10
 ~
  16
10
 ~
  16
RF2080 Base Model No. RF2080R-1B□T RF2080R-1B□T-SS --- RF2080R-1B□T-S○○○○●
Working number of teeth range 10
 ~
  16
10
 ~
  16
10
 ~
  16
RF2100 Base Model No. RF2100R-1B1100T --- --- RF2100R-1B1100T-S○○○○●
Working number of teeth range 11 11
RF2120 Base Model No. RF2120R-1B1100T --- --- ---
Working number of teeth range 11
RF2160 Base Model No. RF2160R-1B1100T --- --- ---
Working number of teeth range 11
