Shock Monitor TSM4000H1 Series
- For general industry machines. Economical Type.
- Economical, simplified setting type with fewer functions than the basic type.
Features
- ・For general industry machines. Economical Type.
- ・Fewer functions compared to the basic type make this type economical and easy to set.
- ・The relay output has two outputs and can be used as an alarm output (High 1) and an abnormal output (High 2).
- ・As a set, High 1 and High 2 can be switched from the external for a maximum of 4 types.
It is useful to change settings depending on the workpiece used for conveyor transportation. - ・Torque monitoring function (20 to 120Hz) available for use with an inverter.

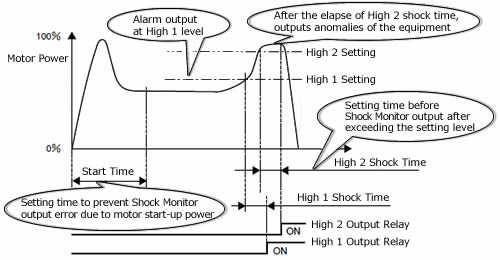

TSM4000H1 Basic Operation
Catalogs ・Instruction Manuals

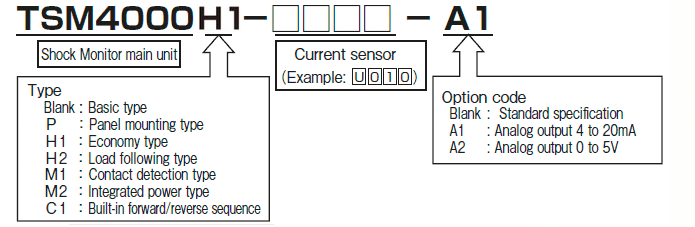

List of Model Numbers
※Click the model No. for detailed information.
| Standard type main unit and current sensor | Panel mounting type main unit and current sensor | Main unit only | Panel mounting bracket | Current sensor | Sensor cable | Double voltage resistor | I/O cable |
|---|---|---|---|---|---|---|---|
| TSM4000-U010 | TSM4000P-U010 | TSM4000H1 | TSM4-PL1 | TSM-U010 | TSM4-S01
TSM4-S03 TSM4-S05 TSM4-S10 TSM4-S20 TSM4-S30 |
TSM4-PR1 | TSM4-C01
TSM4-C03 |
| TSM4000-U050 | TSM4000P-U050 | TSM-U050 | |||||
| TSM4000-U100 | TSM4000P-U100 | TSM-U100 | |||||
| TSM4000-U150 | TSM4000P-U150 | TSM-U150 | |||||
| TSM4000-U200 | TSM4000P-U200 | TSM-U200 | |||||
| TSM4000-M300 | TSM4000P-M300 | TSM-M300 | |||||
| TSM4000-M400 | TSM4000P-M400 | TSM-M400 | |||||
| TSM4000-M600 | TSM4000P-M600 | TSM-M600 | |||||
| TSM4000-M800 | TSM4000P-M800 | TSM-M800 |
