Plastic modular chain 　WT1306-W type

Plastic modular chain suitable for use in extremely low humidity environments
Ideal for cell battery transfer in the rechargeable battery industry.
The use of a nose bar minimizes dead space between conveyors and ensures stable conveyance.

Features

・Compatible with low humidity environments (dew point temperature: -40℃)

Plastic modular chain suitable for use in extremely low humidity environments such as in the manufacturing process of lithium-ion batteries.

Note )We have confirmed that there is no effect on product characteristics in a relative comparison between a low-humidity environment (dew point temperature: -40°C) and a general environment (normal humidity). (Based on our inhouse testing)
・All-plastic chain that does not generate metallic wear particles

Since all materials comprising the chain are made of plastic, the chain is self-lubricating and can be used without the need for lubrication.

Ideal for environments where metallic wear particle is not desired.

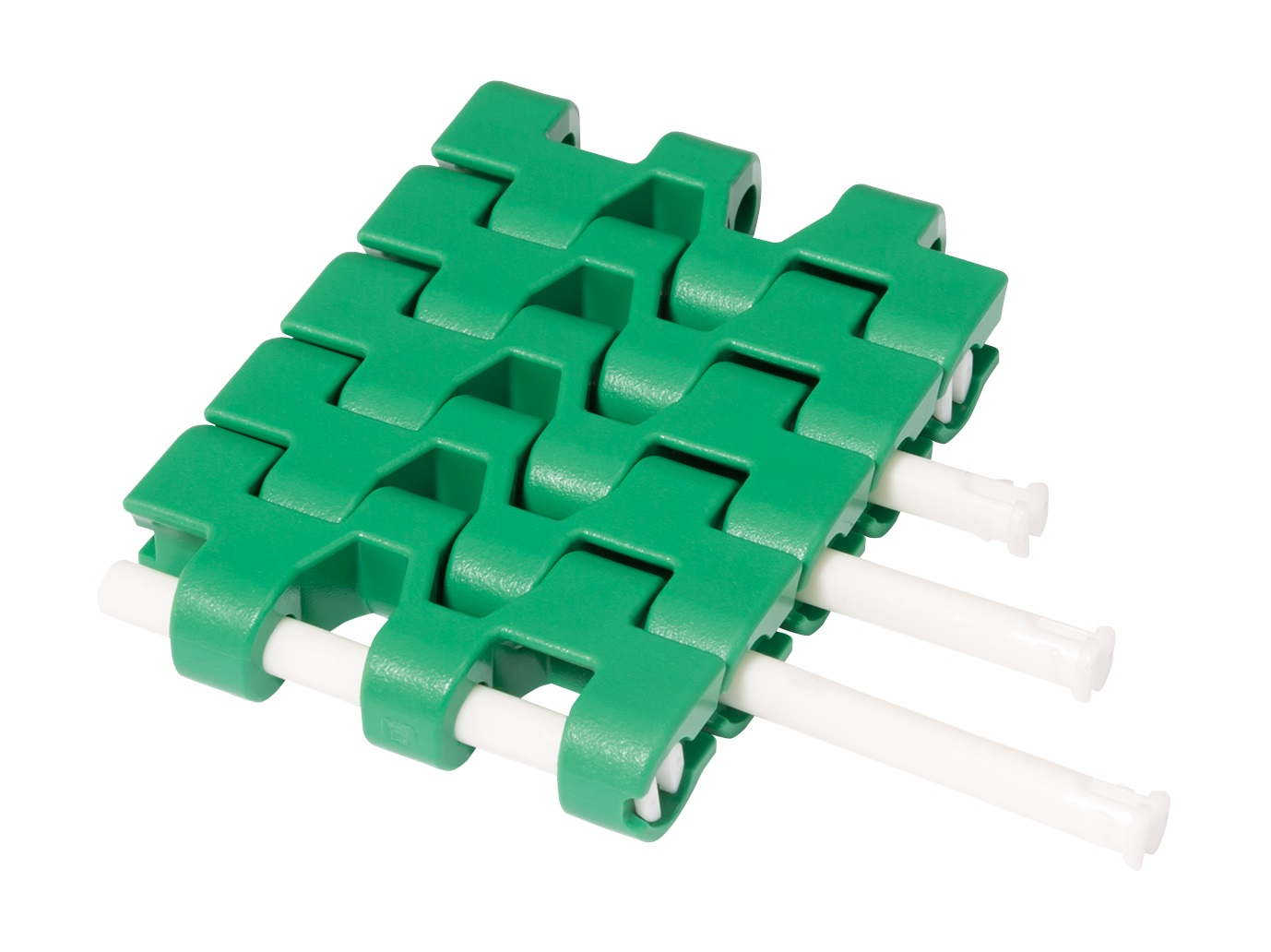

・Slit pins for easier maintenance

"Slit pin" with integrated plug is adopted for chain width 50mm and 100mm.

Time for chain installation and maintenance are reduced, as chain disconnecting work can be easily performed.

Chain width 50mm/100mm	Chain width 150mm～
Slit pin series	Base chain and plug retention system

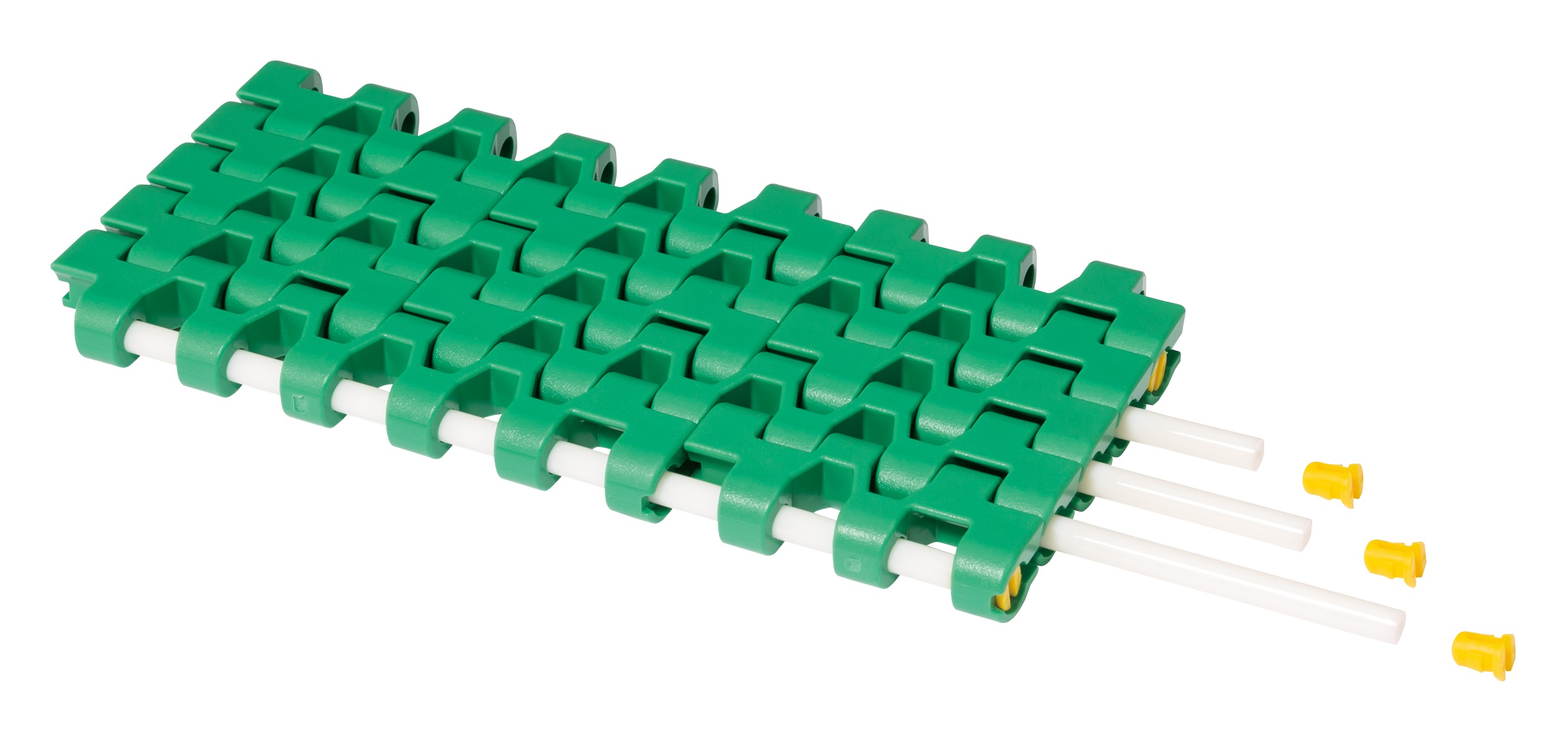

Note )For a chain width of 150mm or wider, base pin and plug retention system is used.

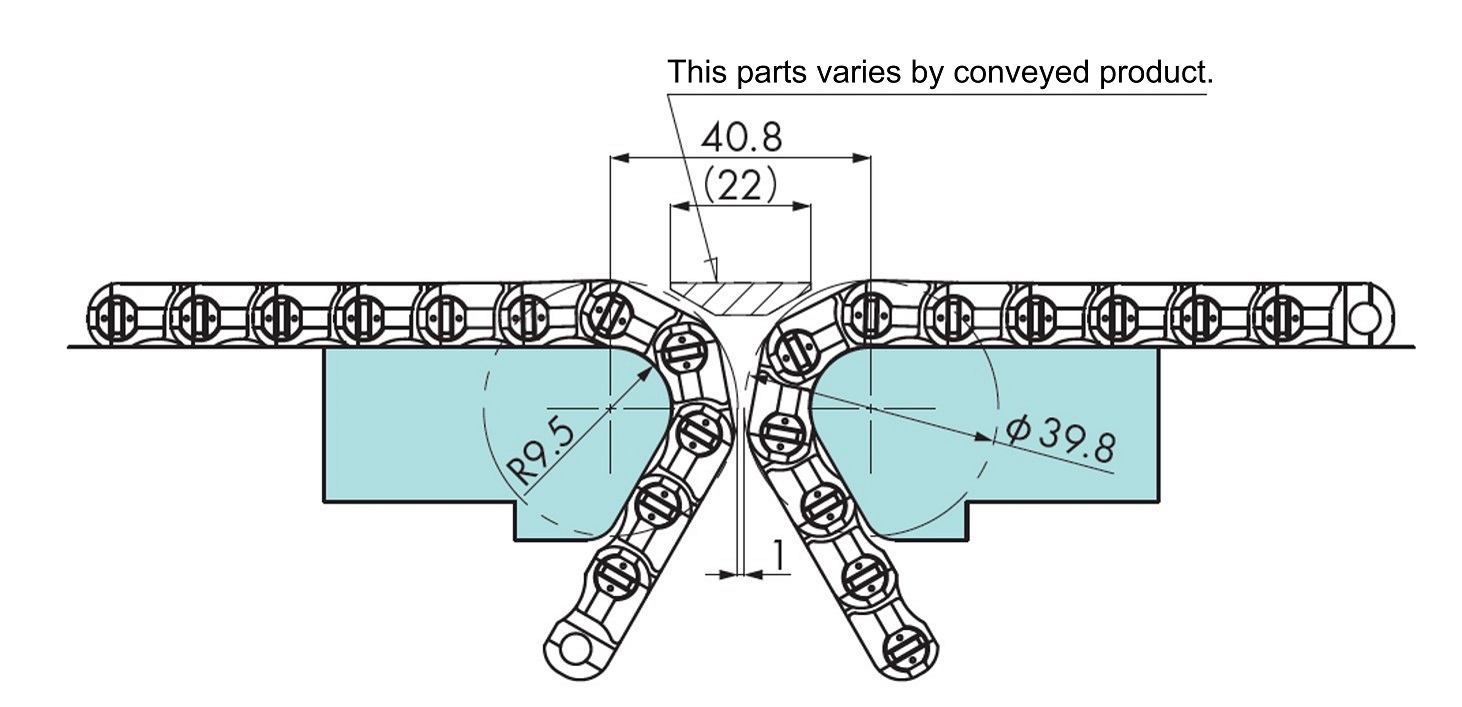

・Reduce dead space in in-line layout

The use of a nose bar minimizes dead space between conveyors and ensures stable conveyance.

Use the WT1510 series nose bar.

The following are the industries we recommend.

May not be used depending on conveying capacity (conveyor speed), material to be conveyed (weight, shape), environment and application.

Use as a guide when selecting.

Recommended industry /Conveyed material size (●：Recommended ○：Can be used △：Varies depending on conveying conditions. )

Conveying size (Weight )	Industry
Conveying size (Weight )	Can manufacturing	Beverages	Tire	Mechanical parts	Logistics	Pharmaceuticals	Bakery/Food	Secondary battery	Semiconductor ・ Solar panel related
High	○	○	△	○	○	○	○	○	○
Medium	●	●	△	●	●	●	●	●	●
Low	●	●	○	●	●	●	●	●	●

Application

※Click "model" for more information
