Shock Monitor TSM4000M1 Series
- For machine tools. Contact detection type
- Load ratio at no-load operation can be automatically, or by external input, offset to 0%. Quickly and reliably detects minimal load changes.
Features
- ・Capable of high-precision detection of minimal power changes when the tool and workpiece contact as the power is automatically offset to 0% during no-load operation.
(There are two types of output: OUT1 and OUT2. ) - ・OUT3 is a non-offset value and the absolute value can be monitored.
- ・As for detection level, as a set, OUT1, OUT2, and OUT3 can be switched from the external for a maximum of 8 types. Compatible with the change of grinding stone and workpieces.

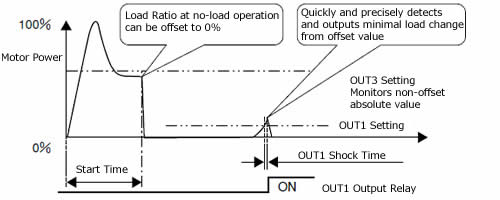

TSM4000M1 Basic Operation
Catalogs ・Instruction Manuals
List of Model Numbers
※Click the model No. for detailed information.
| Standard type main unit and current sensor | Panel mounting type main unit and current sensor | Main unit only | Panel mounting bracket | Current sensor | Sensor cable | Double voltage resistor | I/O cable |
|---|---|---|---|---|---|---|---|
| TSM4000-U010 | TSM4000P-U010 | TSM4000M1 | TSM4-PL1 | TSM-U010 | TSM4-S01
TSM4-S03 TSM4-S05 TSM4-S10 TSM4-S20 TSM4-S30 |
TSM4-PR1 | TSM4-C01
TSM4-C03 |
| TSM4000-U050 | TSM4000P-U050 | TSM-U050 | |||||
| TSM4000-U100 | TSM4000P-U100 | TSM-U100 | |||||
| TSM4000-U150 | TSM4000P-U150 | TSM-U150 | |||||
| TSM4000-U200 | TSM4000P-U200 | TSM-U200 | |||||
| TSM4000-M300 | TSM4000P-M300 | TSM-M300 | |||||
| TSM4000-M400 | TSM4000P-M400 | TSM-M400 | |||||
| TSM4000-M600 | TSM4000P-M600 | TSM-M600 | |||||
| TSM4000-M800 | TSM4000P-M800 | TSM-M800 |
