Plastic block chain 　RSP-CU-2 type

Features

・Sideflexing type of RSP60-2, suitable for conveying wider products.
・With a higher allowable load (about 1.3 times) than RSP60-CU, making it ideal for heavier load conditions.
・Prevents the chain from floating at curved sections with float-preventive attachments (tabs).
Note )Plastic pin type is not available.

Note) (JIS standard )RS60-2 strands sprocket can not be used.

Notes

　1.Click here to contact us for inquiries about sprockets.

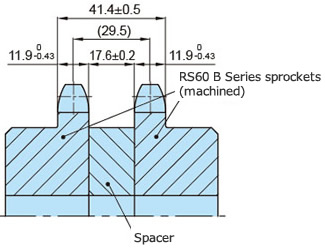

　2.RS60-2 strands sprocket can not be used.

　3.Align the phase of teeth of the two sprockets.

　4.Use sprockets with 12 teeth or more.

　5.If ordered as a set with sprockets, the distance will be manufactured as a special product.
　　Sprocket/distance integrated type is also available.

The following are the industries we recommend.

May not be used depending on conveying capacity (conveyor speed), material to be conveyed (weight, shape), environment and application.

Use as a guide when selecting.

Recommended industry /Conveyed material size (●：Recommended ○：Can be used △：Varies depending on conveying conditions. )

Conveying size (Weight )	Industry
Conveying size (Weight )	Can manufacturing	Beverages	Tire	Mechanical parts	Logistics	Pharmaceuticals	Bakery/Food	Secondary battery	Semiconductor ・ Solar panel related
High	△	△	△	△	△	△	△	△	△
Medium	△	●	△	●	●	●	●	△	△
Low	△	●	△	●	●	●	●	△	△

Application

※Click "model" for more information
