Power Cylinder U Series Multi Type
- The Multi Type Power Cylinder is capable of synchronizing multiple cylinders with one motor. (Large thrust 58.8 kN or more )
- We have upgraded the Multi Series with more than 6 tons rated thrust as the U Series Multi Type, which provides a broader range of compact designs to our line-up.
- ※The Multi Series with less than 4 tons rated thrust will become the T Series Multi Type.
- Allowable Thrust ：58.8～313kN
Features
-
・Longevity
A ball screw with a large load capacity extends its operating life. With the same dimensions as the conventional multi-series, models with 3x the expected screw travel are also available as MTO products. For details, refer to the "Special order" section below.
-
・High-speed Operation
MTO products can achieve high-speed operation up to 150mm/s. For details, refer to the "Special order" section below.
-
・Safe
A thrust detection unit can be built-in to detect overload and protect the machine. (LPUC)
-
・Rugged construction

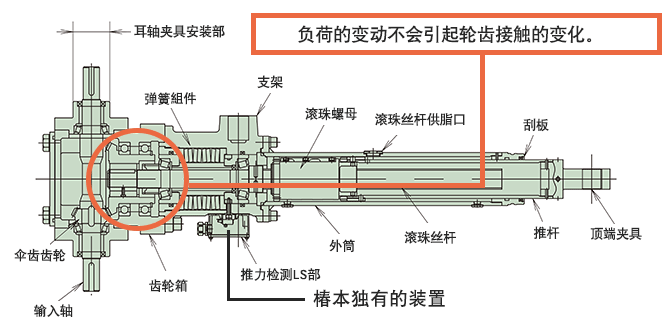

The actuator area supporting the load and the reducer area are separated. Fluctuating loads will not affect the contact on the gear teeth.
-
・Drive multiple units together
Using an input shaft with enough strength allows synchronous operation of multiple units.
-
・Capable of oscillation
The input shaft and trunnion area have the same shaft center, allowing for swinging motion during interlocked operation.
Proper use and structure of each type (protective device)
-
・A Type (No overload protector )
A Type has no overload protector.
We recommend using with Tsubaki's Shock Relay, which can detect electrical overload on the input side.
-
・C Type (Thrust detection limit switch )
A thrust detection spring unit is built in to the bracket. It is effective during push/pull stopping or when electrical signals are required during overloads.
An electrical signal is output even when an overload acts from the load side during stop or when the stroke is over.
※Particularly, the built-in spring bends and absorbs the impact load when it acts impactfully.
Standard model list
| Model No. | Allowable Thrust kN {kgf} |
Screw lead (mm) |
Gear Ratio | Total Efficiency (%) | Idling torque without load N・m {kgf・m} |
Allowable Torque on Input Shaft N・m {kgf・m} Note 1 ) |
|---|---|---|---|---|---|---|
| LPUA 6000B LPUC |
58.8 {6000} |
12 | 2 | 85.5 | 10.0 {1.02} |
303 {30.9} |
| LPUA 8000B LPUC |
78.4 {8000} |
12 | 2 | 85.5 | 19.0 {2.0} |
428 {43.7} |
| LPUA 12000B LPUC |
117 {12000} |
16 | 2 | 85.5 | 20.0 {2.04} |
392 {40.0} |
| LPUA 16000B LPUC |
156 {16000} |
16 | 2 | 85.5 | 31.0 {3.16} |
530 {54.1} |
| LPUA 22000B LPUC |
215 {22000} |
24 | 2 | 85.5 | 37.0 {3.78} |
1038 {106} |
| LPUA 32000B LPUC |
313 {32000} |
20 | 2 | 85.5 | 77.0 {7.89} |
1322 {135} |
| Model No. | Rod Stroke per Turn of Input Shaft (mm) |
Rod Rotational Force During Allowable Thrust N・m{kgf・m} |
Input Torque Required for Allowable Thrust N・m{kgf・m} Note 2 ) |
Allowable Max Speed (mm/s) Note 3 ) |
Stroke (mm) |
|---|---|---|---|---|---|
| LPUA 6000B LPUC |
6 | 124 {12.7} |
75.7 {7.73} |
50 (UA) 30 (UC) |
500,1000※ |
| LPUA 8000B LPUC |
6 | 166 {17.0} |
107 {11.0} |
52 (UA) 36 (UC) |
500、1000 1500※ |
| LPUA 12000B LPUC |
8 | 333 {34.0} |
196 {20.0} |
36 (UA) 22 (UC) |
500、1000 1500※ |
| LPUA 16000B LPUC |
8 | 444 {45.3} |
265 {27.1} |
36 (UA) 24 (UC) |
500、1000 1500,2000※ |
| LPUA 22000B LPUC |
12 | 915 {67.9} |
519 {53.0} |
35 (UA) 24 (UC) |
500、1000 1500、2000 |
| LPUA 32000B LPUC |
10 | 1109 {136} |
661 {67.5} |
24 (UA) 18 (UC) |
500、1000 1500、2000 |
- Note 1) Allowable torque for input shaft only. (Check this torque before multi-operation. )
- Note 2) This value includes the idling torque without load.
- Note 3) In the Allowable Max Speed column, UA indicates LPUA type, UC indicates LPUC type.
- ※A long-life option is also available when exceeding standard strokes. Contact a Tsubaki representative for more information.
Special order
The U Series Multi Type Power Cylinder has two MTO options: higher-speed operation, or longer life.
High-speed Operation
- ・Realizes high-speed operation at 150mm/s in all sizes.
- ・Allows for high-speed operation of equipment.

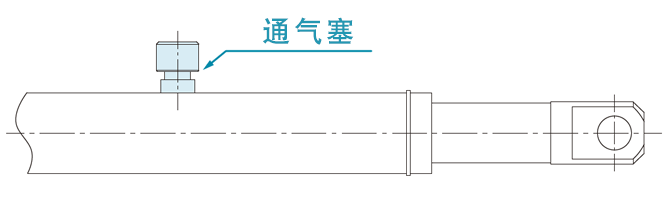

- ・Air breathers are attached to the actuator area. ※You will be required to indicate the location of breathers when ordering.
-
- ※The high-speed LPTC type with thrust detection unit cannot be used as a safety device. Pressing stops are not allowed, so use inverters for a decelerating stop. Contact a Tsubaki representative for more information.
Longer Life
- ・Compared to the previous Multi Series, this series has 3x the expected screw travel and reduces life cycle costs.
- ・Allows for long strokes when exceeding standard strokes.
-

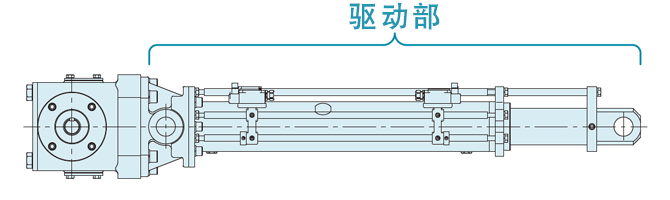

- ※For the actuator area, the outer dimension and screw lead differ from standard products. Please contact Tsubaki representative in detais.
Catalogs ・Instruction Manuals
Model No. examples
| LPU | A | 8000 | B | R | 5 |
| ｜ Series |
｜ ｜ ｜ ｜ ｜ ｜ ｜ ｜ ｜ |
｜ Allowable Thrust 6000：58.8kN{6000kgf} 8000：78.4kN{8000kgf} 12000：117kN{12000kgf} 16000：156kN{16000kgf} 22000：215kN{22000kgf} 32000：313kN{32000kgf} |
｜ ｜ ｜ ｜ ｜ ｜ ｜ ｜ ｜ |
｜ Relation between Rotation and Stroke R、L ※Refer to the diagram below. |
｜ Nominal Stroke 5：500mm 10：1000mm 15：1500mm 20：2000mm |
| Type A：No overload protector C：Thrust detection limit switch |
With bevel gear | ||||
■Tsubaki model No. navigation
Type
B：This is the standard type with no overload protector.
C：This unit has a built-in thrust detection mechanism.
Allowable Thrust
This is the rated thrust at which the product can operate.
Relation between Rotation and Stroke
This shows the relation between the rotating direction of the input shaft and the stroke of the cylinder.
Nominal Stroke
This is the stroke distance of the actuator. The manufacturing scope depends on the thrust.
Option symbol
L：This unit comes with two external limit switches for adjusting the stroke.
J：This comes with bellows.
※Click here for the optional model number (L stroke adjustment external LS, with bellows).
List of Model Numbers
※Click the model No. for detailed information.
