Plastic modular chain 　WT2515G-M type

WT2510 series of Bevedolphin series for the beverage industry.
Ideal for beverage container conveyance.
Can be installed on the same shaft as the same Bevedolphin series sideflexing type TTUPM838H.
Conveyor design in multi-lane applications is simplified as the conveyor level remains the same.

Features

・Adopts special plastic pin combining pin and plug, being effective to prevent contamination with foreign object.

With tab guide attachments. Bevedolphin series is ideal for beverage container conveyance.

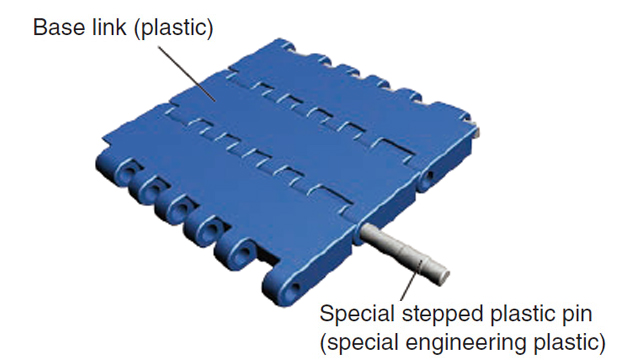

・Uses a special stepped plastic pin for a joint pin

Effective for preventing foreign substance contamination through the adoption of a special stepped plastic pin that is built by integrating a plug and pin. Easy handling with a simple link and pin system.
・Bevedolphin series ideal for conveying beverage containers

Conveyor design can be standardized by combining with Bevedolphin series.
・Combination of WT2515 and TTUPM838H types

*The image is just one installation example.

Straight-running WT2515G-M and sideflexing running TTUPM838H types can be installed on the same shaft,

Conveyor design in multi-lane applications is simplified as the conveyor level remains the same. ※The above image is just one installation example.

The following are the industries we recommend.

May not be used depending on conveying capacity (conveyor speed), material to be conveyed (weight, shape), environment and application.

Use as a guide when selecting.

Recommended industry /Conveyed material size (●：Recommended ○：Can be used △：Varies depending on conveying conditions. )

Conveying size (Weight )	Industry
Conveying size (Weight )	Can manufacturing	Beverages	Tire	Mechanical parts	Logistics	Pharmaceuticals	Bakery/Food	Secondary battery	Semiconductor ・ Solar panel related
High	△	△	△	△	△	△	△	△	△
Medium	●	●	△	●	●	●	●	●	●
Low	●	●	△	●	●	●	●	●	●

Application

※Click "model" for more information

・WT2510 series of Bevedolphin series for the beverage industry.
・Ideal for beverage container conveyance.
・Can be installed on the same shaft as the same Bevedolphin series sideflexing type TTUPM838H.
・Conveyor design in multi-lane applications is simplified as the conveyor level remains the same.
