Shock Monitor TSM4000C1 Series
- For crushers. Built-in forward/reverse sequencer type.
- This type can detect overload on crusher blades and output an automatic forward and reverse control signal when overload occurs.
Features
- ・Just by inputting starting (forward movement) signal, stopping, reverse movement and restarting during overload can be controlled without an external sequence program.
- ・In case the machine does not return to normal operation even after the preset reverse setting time has passed, the stopping signal is output to stop the device completely.
- ・The overload level, stop time and reverse running time can be set easily on site.
- ・For energy saving, automatic stoppage available under no load.

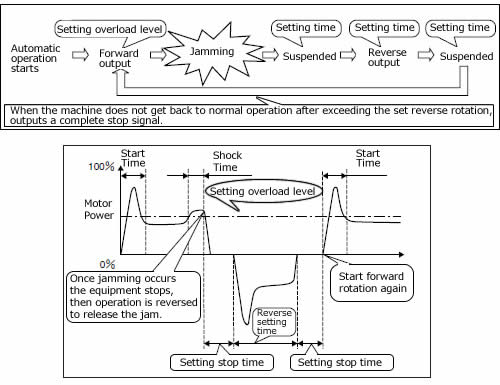

TSM4000C1 Basic Operation
Catalogs ・Instruction Manuals

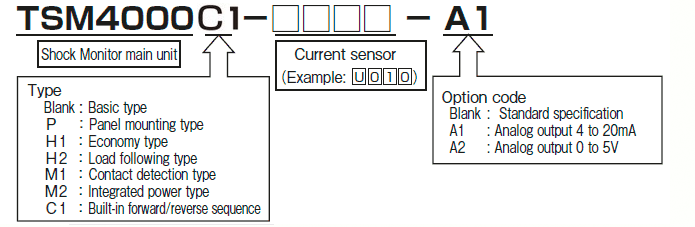

List of Model Numbers
※Click the model No. for detailed information.
| Standard type main unit and current sensor | Panel mounting type main unit and current sensor | Main unit only | Panel mounting bracket | Current sensor | Sensor cable | Double voltage resistor | I/O cable |
|---|---|---|---|---|---|---|---|
| TSM4000-U010 | TSM4000P-U010 | TSM4000C1 | TSM4-PL1 | TSM-U010 | TSM4-S01
TSM4-S03 TSM4-S05 TSM4-S10 TSM4-S20 TSM4-S30 |
TSM4-PR1 | TSM4-C01
TSM4-C03 |
| TSM4000-U050 | TSM4000P-U050 | TSM-U050 | |||||
| TSM4000-U100 | TSM4000P-U100 | TSM-U100 | |||||
| TSM4000-U150 | TSM4000P-U150 | TSM-U150 | |||||
| TSM4000-U200 | TSM4000P-U200 | TSM-U200 | |||||
| TSM4000-M300 | TSM4000P-M300 | TSM-M300 | |||||
| TSM4000-M400 | TSM4000P-M400 | TSM-M400 | |||||
| TSM4000-M600 | TSM4000P-M600 | TSM-M600 | |||||
| TSM4000-M800 | TSM4000P-M800 | TSM-M800 |
