Shock Monitor 　TSM4000M3 Series

Product photo
  • Processing tool breakage detection series
  • This type instantaneously detects tool breakage in the machining machine.

Machining tool breakage detection specification TSM4000M3 that instantly detects tool breakage >> Click here for the special page

Features

  • ・Power sensor for machining machines that instantly detects tool breakage. Detects breakage of machining tool in 0.05 seconds
  • ・Double safety function of counter and wear detection The counter function manages the life of parts, and wear detection catches tool wear.
  • ・Built-in PLCs enable remote catching of tool breakage and support for IoT.

Catalogs ・Instruction Manuals

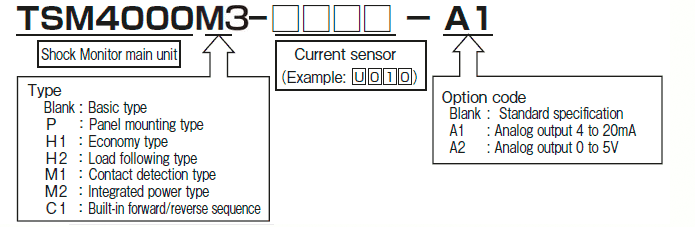

List of Model Numbers

※Click the model No. for detailed information.


Standard type main unit and current sensor Panel mounting type main unit and current sensor Main unit only Panel mounting bracket Current sensor Sensor cable Double voltage resistor I/O cable
TSM4000-U010 TSM4000P-U010 TSM4000M3 TSM4-PL1 TSM-U010 TSM4-S01
TSM4-S03
TSM4-S05
TSM4-S10
TSM4-S20
TSM4-S30 		TSM4-PR1 TSM4-C01
TSM4-C03
TSM4000-U050 TSM4000P-U050 TSM-U050
TSM4000-U100 TSM4000P-U100 TSM-U100
TSM4000-U150 TSM4000P-U150 TSM-U150
TSM4000-U200 TSM4000P-U200 TSM-U200
TSM4000-M300 TSM4000P-M300 TSM-M300
TSM4000-M400 TSM4000P-M400 TSM-M400
TSM4000-M600 TSM4000P-M600 TSM-M600
TSM4000-M800 TSM4000P-M800 TSM-M800
