Shock Monitor TSM4000M2 Series
- For machine tools. Integral power type

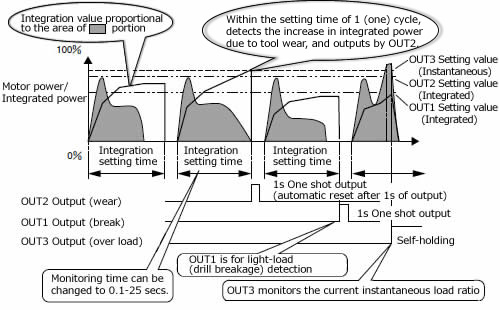

- Detects overload and tool wear by integrating one cycle of power from the manufacturing process.
Features
- ・With the constant pressure of a finishing machine, even if the tool wears, the load ratio does not rise while the machining time increases. This is monitored in the power consumption (area).
- ・After machining is completed, the wear is detected by the upper limit of power integration (OUT2), while the drill breakage can be detected by the lower limit (OUT1).
- ・With the instantaneous value of OUT3, overload due to jams is monitored with the absolute value.
- ・As a set, OUT1, OUT2, and OUT3 can be switched from the external for a maximum of 8 types. It accommodates the change of tools and workpieces.
- ・The integral time setting can be changed easily.
TSM4000M2 Basic Operation
Catalogs ・Instruction Manuals

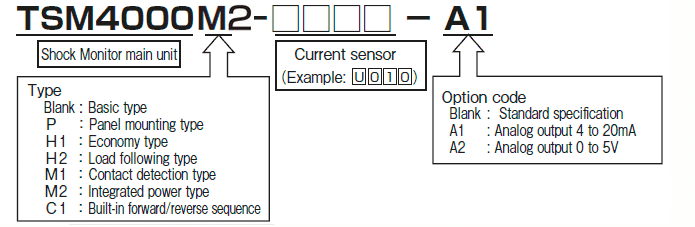

List of Model Numbers
※Click the model No. for detailed information.
| Standard type main unit and current sensor | Panel mounting type main unit and current sensor | Main unit only | Panel mounting bracket | Current sensor | Sensor cable | Double voltage resistor | I/O cable |
|---|---|---|---|---|---|---|---|
| TSM4000-U010 | TSM4000P-U010 | TSM4000M2 | TSM4-PL1 | TSM-U010 | TSM4-S01
TSM4-S03 TSM4-S05 TSM4-S10 TSM4-S20 TSM4-S30 |
TSM4-PR1 | TSM4-C01
TSM4-C03 |
| TSM4000-U050 | TSM4000P-U050 | TSM-U050 | |||||
| TSM4000-U100 | TSM4000P-U100 | TSM-U100 | |||||
| TSM4000-U150 | TSM4000P-U150 | TSM-U150 | |||||
| TSM4000-U200 | TSM4000P-U200 | TSM-U200 | |||||
| TSM4000-M300 | TSM4000P-M300 | TSM-M300 | |||||
| TSM4000-M400 | TSM4000P-M400 | TSM-M400 | |||||
| TSM4000-M600 | TSM4000P-M600 | TSM-M600 | |||||
| TSM4000-M800 | TSM4000P-M800 | TSM-M800 |
