Zip Chain Actuators

- Unprecedented high-speed, high-frequency, low-floor, long-life actuator
- The Zip Chain Actuator is an actuator that interlocks two chains like a zipper and performs linear motion.

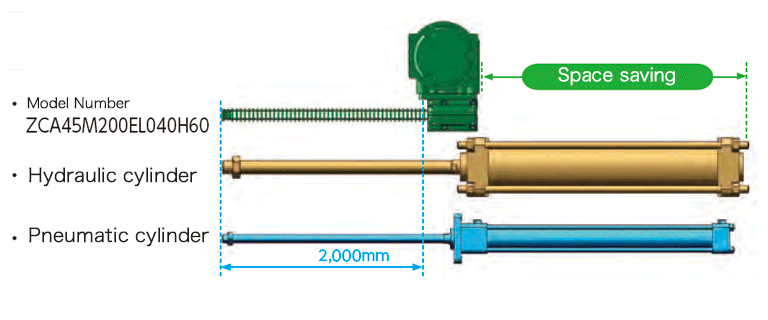

- The compact main unit design provides an overwhelming space savings compared to conventional linear motion units.
- High-speed, high-frequency operation and high-precision multi-point stopping are also possible.
- Compared to hydraulic and pneumatic cylinders, the amount of electricity used can be significantly reduced, contributing to energy savings.
- Medium and large sizes with a maximum thrust of 38.2 kN / maximum stroke of 5000 mm are also available.
- For more information, click here.
- Integrated drive units are also available.
- With hypoid motor With TERVO (reducer for servo motors)
Construction
End fitting :The end fixture is integrated with Zip Chains, allowing for both lifting and hanging installations.
Drive section :The engagement of our unique sprockets and Zip Chains effectively transmits power.
Housing section :The sliding section of the chains enables smooth and compact storage in the chain case.

Features
Compact
The height of the chain case is about 1/10 lower than the stroke, and with its drive-integrated structure this compact unit can be installed in narrow spaces.


High speed
Achieves a maximum speed of 1,000mm/sec during high speed operation, which far outstrips the speeds seen in screw type cylinders and hydraulic/pneumatic cylinders.


Multi-point stopping
Servo motors enable high precision multi-point stopping and continuous operation.


Longevity
Features superb wear resistance and less chain elongation, which gives it an expected travel distance of 4,000km.


Mounts in any direction
Can be freely installed in any direction to meet any customer need, such as lifting, horizontal movement, and hanging.


Clean application example
Catalogs ・Instruction Manuals
- E-Book Catalog (Japanese) (LINEAR MOTION )
- E-Book Catalog (Japanese) (Zip Chain Actuator )
- E-Book Catalog (English) (Zip Chain Actuator )
- Instruction Manuals (Japanese)
- Instruction Manuals (English)
- Leaflet (Medium size design stock model )
- Leaflet (With DCBL Hypoid Motor )
- Leaflet (With TERVO (reducer for servo motors) )
Model No. examples
ZCA | 35 | K | 050 | E | L | 040 | H | 40 | E4HC | - | J1F |
| Series |
| Size 25 35 40 |
| | | | | | |
| | | | |
| Mounting |
| Shaft Arrangement |
| | |
| Hypoid motor |
| Reduction ratio |
| Mount code |
| Options |
|
| Motor Capacity 009:90W 040:0.4kW |
|||||||||||
| Stroke 050:500mm 100:1000mm |
|||||||||||
| Drive section N:With no drive section (Please prepare the drive unit of your choice separately. Click here for reducers and small gear motors) M:With hypoid motor K:With TERVO (reducer for servo motors) |
Mounting
E | D | ||
---|---|---|---|
Lifting installation | Horizontal installation | Hanging installation | |
![]() |
![]() |
![]() |
![]() |
Shaft Arrangement
Drive section | L:Standard input shaft | R:Input shaft on the opposite side | T:Double input shaft |
---|---|---|---|
N | ![]() |
![]() |
![]() |
M | ![]() |
- | ![]() |
K | ![]() |
- | ![]() |
Options
Bellows | Grease plate | |
---|---|---|
J1:For lifting or hanging | J2:For horizontal movement | F |
![]() |
![]() |
Options Sold Separately
See the product page of each model number for more details on options sold separately.
Mounting Base | Underside attachment base | Cap |
---|---|---|
![]() |
![]() |
![]() |
■Tsubaki model No. navigation
List of Model Numbers
With no drive section
※Click the model No. for detailed information. (Please prepare the drive unit of your choice separately. Click here for reducers and small gear motors)
Size | Stroke mm |
Mounting :E | Mounting :D | ||||
---|---|---|---|---|---|---|---|
Shaft Arrangement | Shaft Arrangement | ||||||
L | R | T | L | R | T | ||
ZCA25 | 300 | ZCA25N030EL | ZCA25N030ER | ZCA25N030ET | ZCA25N030DL | ZCA25N030DR | ZCA25N030DT |
500 | ZCA25N050EL | ZCA25N050ER | ZCA25N050ET | ZCA25N050DL | ZCA25N050DR | ZCA25N050DT | |
ZCA35 | 500 | ZCA35N050EL | ZCA35N050ER | ZCA35N050ET | ZCA35N050DL | ZCA35N050DR | ZCA35N050DT |
750 | ZCA35N075EL | ZCA35N075ER | ZCA35N075ET | ZCA35N075DL | ZCA35N075DR | ZCA35N075DT | |
1000 | ZCA35N100EL | ZCA35N100ER | ZCA35N100ET | ZCA35N100DL | ZCA35N100DR | ZCA35N100DT | |
ZCA45 | 1000 | ZCA45N100EL | ZCA45N100ER | ZCA45N100ET | ZCA45N100DL | ZCA45N100DR | ZCA45N100DT |
1500 | ZCA45N150EL | ZCA45N150ER | ZCA45N150ET | ZCA45N150DL | ZCA45N150DR | ZCA45N150DT | |
2000 | ZCA45N200EL | ZCA45N200ER | ZCA45N200ET | ZCA45N200DL | ZCA45N200DR | ZCA45N200DT |
With hypoid motor
※Use our online model number search tool for detailed information. What is a hypoid motor?
Size | Motor Capacity | Reduction ratio | Stroke mm |
Mounting :E | Mounting :D | ||
---|---|---|---|---|---|---|---|
Shaft Arrangement | Shaft Arrangement | ||||||
L | T | L | T | ||||
ZCA25 | 60W | 40, 50, 60 |
300 | ZCA25M030EL006H | ZCA25M030ET006H | ZCA25M030DL006H | ZCA25M030DT006H |
500 | ZCA25M050EL006H | ZCA25M050ET006H | ZCA25M050DL006H | ZCA25M050DT006H | |||
90W | 10, 15, 20, 25, 30 |
300 | ZCA25M030EL009H | ZCA25M030ET009H | ZCA25M030DL009H | ZCA25M030DT009H | |
500 | ZCA25M050EL009H | ZCA25M050ET009H | ZCA25M050DL009H | ZCA25M050DT009H | |||
ZCA35 | 0.2kW | 40, 50, 60 |
500 | ZCA35M050EL020H | ZCA35M050ET020H | ZCA35M050DL020H | ZCA35M050DT020H |
750 | ZCA35M075EL020H | ZCA35M075ET020H | ZCA35M075DL020H | ZCA35M075DT020H | |||
1000 | ZCA35M100EL020H | ZCA35M100ET020H | ZCA35M100DL020H | ZCA35M100DT020H | |||
0.4kW | 10, 12.5, 15, 20, 25, 30 |
500 | ZCA35M050EL040H | ZCA35M050ET040H | ZCA35M050DL040H | ZCA35M050DT040H | |
750 | ZCA35M075EL040H | ZCA35M075ET040H | ZCA35M075DL040H | ZCA35M075DT040H | |||
1000 | ZCA35M100EL040H | ZCA35M100ET040H | ZCA35M100DL040H | ZCA35M100DT040H | |||
ZCA45 | 0.4kW | 60, 80, 100 |
1000 | ZCA45M100EL040H | ZCA45M100ET040H | ZCA45M100DL040H | ZCA45M100DT040H |
1500 | ZCA45M150EL040H | ZCA45M150ET040H | ZCA45M150DL040H | ZCA45M150DT040H | |||
2000 | ZCA45M200EL040H | ZCA45M200ET040H | ZCA45M200DL040H | ZCA45M200DT040H | |||
0.75kW | 10, 12.5, 15, 20, 25, 30, 40, 50 |
1000 | ZCA45M100EL075H | ZCA45M100ET075H | ZCA45M100DL075H | ZCA45M100DT075H | |
1500 | ZCA45M150EL075H | ZCA45M150ET075H | ZCA45M150DL075H | ZCA45M150DT075H | |||
2000 | ZCA45M200EL075H | ZCA45M200ET075H | ZCA45M200DL075H | ZCA45M200DT075H |
With TERVO (reducer for servo motors)
※Use our online model number search tool for detailed information. What is TERVO reducer for servo motors?
Size | Motor Capacity | Reduction ratio | Stroke mm |
Mounting :E | Mounting :D | ||
---|---|---|---|---|---|---|---|
Shaft Arrangement | Shaft Arrangement | ||||||
L | T | L | T | ||||
ZCA25 | 200W | 5, 10, 15, 20 |
300 | ZCA25K030EL020H | ZCA25K030ET020H | ZCA25K030DL020H | ZCA25K030DT020H |
500 | ZCA25K050EL020H | ZCA25K050ET020H | ZCA25K050DL020H | ZCA25K050DT020H | |||
ZCA35 | 400W | 40 | 500 | ZCA35K050EL040H | ZCA35K050ET040H | ZCA35K050DL040H | ZCA35K050DT040H |
750 | ZCA35K075EL040H | ZCA35K075ET040H | ZCA35K075DL040H | ZCA35K075DT040H | |||
1000 | ZCA35K100EL040H | ZCA35K100ET040H | ZCA35K100DL040H | ZCA35K100DT040H | |||
750W | 5, 10, 15, 20 |
500 | ZCA35K050EL075H | ZCA35K050ET075H | ZCA35K050DL075H | ZCA35K050DT075H | |
750 | ZCA35K075EL075H | ZCA35K075ET075H | ZCA35K075DL075H | ZCA35K075DT075H | |||
1000 | ZCA35K100EL075H | ZCA35K100ET075H | ZCA35K100DL075H | ZCA35K100DT075H | |||
ZCA45 | 400W | 120 | 1000 | ZCA45K100EL040H | ZCA45K100ET040H | ZCA45K100DL040H | ZCA45K100DT040H |
1500 | ZCA45K150EL040H | ZCA45K150ET040H | ZCA45K150DL040H | ZCA45K150DT040H | |||
2000 | ZCA45K200EL040H | ZCA45K200ET040H | ZCA45K200DL040H | ZCA45K200DT040H | |||
750W | 20, 25, 30, 40, 50, 60, 80 |
1000 | ZCA45K100EL075H | ZCA45K100ET075H | ZCA45K100DL075H | ZCA45K100DT075H | |
1500 | ZCA45K150EL075H | ZCA45K150ET075H | ZCA45K150DL075H | ZCA45K150DT075H | |||
2000 | ZCA45K200EL075H | ZCA45K200ET075H | ZCA45K200DL075H | ZCA45K200DT075H |
