Sprockets for Large Size Conveyor Chains Standard series (Pilot bore)
- Large Size Conveyor Chain Sprockets
- Optimal teeth hardening treatment is applied to improve wear resistance.
- ＊Contact a Tsubaki representative for more information on Large Size Conveyor Chain sprockets.
Features
- ＊Tsubaki offers over 500 standard sprockets at affordable prices.
- ＊Exactingly designed to balance chain performance with shaft hole diameter and hub length.
Catalogs ・Instruction Manuals

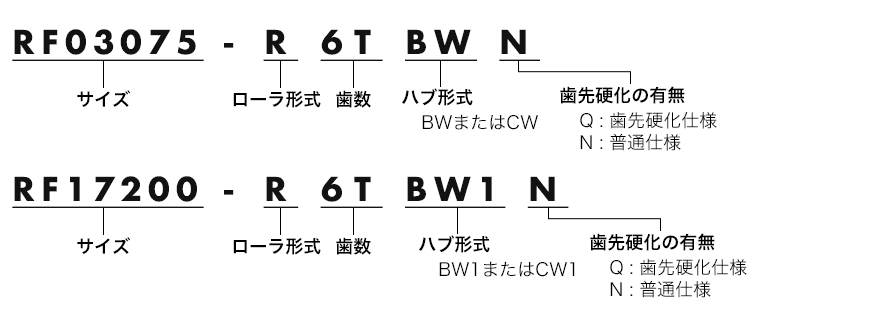

Model No. examples
| RF03075 | R | 6T | - | BW | N |
| ｜ Size |
｜ ｜ |
｜ ｜ |
｜ Hub Type |
｜ Tooth hardening Q：hardened teeth specifications N：Standard Series |
|
| Roller type | Number of teeth | ||||
| RF17200 | R | 6T | - | BW1 | N |
| ｜ Size |
｜ ｜ |
｜ ｜ |
｜ Hub Type |
｜ Tooth hardening Q：hardened teeth specifications N：Standard Series |
|
| Roller type | Number of teeth | ||||
List of Models
※Click the name for more information.
| Size | Chain Pitch |
Tooth Width | Roller type |
Hub Type | BW | CW | BW1 | CW1 |
|---|---|---|---|---|---|---|---|---|
| shape |  |
 |
 |
 |
||||
| RF03075 | 75 | 11.9 | R | Base Model No. | RF03075R□T-BW■ | RF03075R□T-CW■ | --- | --- |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF03100 | 100 | 11.9 | Base Model No. | RF03100R□T-BW■ | RF03100R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05100 | 100 | 18 | Base Model No. | RF05100R□T-BW■ | RF05100R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05125 | 125 | 18 | Base Model No. | RF05125R□T-BW■ | RF05125R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05150 | 150 | 18 | Base Model No. | RF05150R□T-BW■ | RF05150R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF08125 | 125 | 22 | Base Model No. | RF08125R□T-BW■ | RF08125R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF08150 | 150 | 22 | Base Model No. | RF08150R□T-BW■ | RF08150R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10100 | 100 | 22 | Base Model No. | RF10100R□T-BW■ | RF10100R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10125 | 125 | 22 | Base Model No. | RF10125R□T-BW■ | RF10125R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10150 | 150 | 22 | Base Model No. | RF10150R□T-BW■ | RF10150R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF12200 | 200 | 28 | Base Model No. | --- | --- | RF12200R□T-BW1■ | RF12200R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF12250 | 250 | 28 | Base Model No. | --- | --- | RF12250R□T-BW1■ | RF12250R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17200 | 200 | 40 | Base Model No. | --- | --- | RF17200R□T-BW1■ | RF17200R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17250 | 250 | 40 | Base Model No. | --- | --- | RF17250R□T-BW1■ | RF17250R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17300 | 300 | 40 | Base Model No. | --- | --- | RF17300R□T-BW1■ | RF17300R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26250 | 250 | 45 | Base Model No. | --- | --- | RF26250R□T-BW1■ | RF26250R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26300 | 300 | 45 | Base Model No. | --- | --- | RF26300R□T-BW1■ | RF26300R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF36300 | 300 | 55 | Base Model No. | --- | --- | RF36300R□T-BW1■ | RF36300R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF430 | 101.6 | 18 | Base Model No. | RF430R□T-BW■ | RF430R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF450 | 101.6 | 22 | Base Model No. | RF450R□T-BW■ | RF450R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF650 | 152.4 | 22 | Base Model No. | RF650R□T-BW■ | RF650R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF214 | 101.6 | 24 | Base Model No. | RF214R□T-BW■ | RF214R□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF6205 | 152.4 | 28 | Base Model No. | --- | --- | RF6205R□T-BW1■ | RF6205R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF212 | 152.4 | 28 | Base Model No. | --- | --- | RF212R□T-BW1■ | RF212R□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF03075 | 75 | 8.9 | F | Base Model No. | RF03075F□T-BW■ | RF03075F□T-CW■ | --- | --- |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF03100 | 100 | 8.9 | Base Model No. | RF03100F□T-BW■ | RF03100F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05100 | 100 | 11.9 | Base Model No. | RF05100F□T-BW■ | RF05100F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05125 | 125 | 11.9 | Base Model No. | RF05125F□T-BW■ | RF05125F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05150 | 150 | 11.9 | Base Model No. | RF05150F□T-BW■ | RF05150F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF08125 | 125 | 15 | Base Model No. | RF08125F□T-BW■ | RF08125F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF08150 | 150 | 15 | Base Model No. | RF08150F□T-BW■ | RF08150F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10125 | 125 | 15 | Base Model No. | RF10125F□T-BW■ | RF10125F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10150 | 150 | 15 | Base Model No. | RF10150F□T-BW■ | RF10150F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF12200 | 200 | 18 | Base Model No. | --- | --- | RF12200F□T-BW1■ | RF12200F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF12250 | 250 | 18 | Base Model No. | --- | --- | RF12250F□T-BW1■ | RF12250F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17200 | 200 | 28 | Base Model No. | --- | --- | RF17200F□T-BW1■ | RF17200F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17250 | 250 | 28 | Base Model No. | --- | --- | RF17250F□T-BW1■ | RF17250F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17300 | 300 | 28 | Base Model No. | --- | --- | RF17300F□T-BW1■ | RF17300F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26250 | 250 | 30 | Base Model No. | --- | --- | RF26250F□T-BW1■ | RF26250F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26300 | 300 | 30 | Base Model No. | --- | --- | RF26300F□T-BW1■ | RF26300F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF36300 | 300 | 33.7 | Base Model No. | --- | --- | RF36300F□T-BW1■ | RF36300F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF450 | 101.6 | 15 | Base Model No. | RF450F□T-BW■ | RF450F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF650 | 152.4 | 18 | Base Model No. | RF650F□T-BW■ | RF650F□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF6205 | 152.4 | 18 | Base Model No. | --- | --- | RF6205F□T-BW1■ | RF6205F□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF03075 | 75 | 11.9 | S | Base Model No. | RF03075S□T-BW■ | RF03075S□T-CW■ | --- | --- |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF03100 | 100 | 11.9 | Base Model No. | RF03100S□T-BW■ | RF03100S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05075 | 75 | 18 | Base Model No. | RF05075S□T-BW■ | RF05075S□T-CW■ | --- | --- | |
| Number of teeth | 8/10/12 | 8/10/12 | ||||||
| RF05100 | 100 | 18 | Base Model No. | RF05100S□T-BW■ | RF05100S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05125 | 125 | 18 | Base Model No. | RF05125S□T-BW■ | RF05125S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF05150 | 150 | 18 | Base Model No. | RF05150S□T-BW■ | RF05150S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF08125 | 125 | 22 | Base Model No. | RF08125S□T-BW■ | RF08125S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF08150 | 150 | 22 | Base Model No. | RF08150S□T-BW■ | RF08150S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10100 | 100 | 22 | Base Model No. | RF10100S□T-BW■ | RF10100S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10125 | 125 | 22 | Base Model No. | RF10125S□T-BW■ | RF10125S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF10150 | 150 | 22 | Base Model No. | RF10150S□T-BW■ | RF10150S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF12200 | 200 | 28 | Base Model No. | --- | --- | RF12200S□T-BW1■ | RF12200S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF12250 | 250 | 28 | Base Model No. | --- | --- | RF12250S□T-BW1■ | RF12250S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17200 | 200 | 40 | Base Model No. | --- | --- | RF17200S□T-BW1■ | RF17200S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17250 | 250 | 40 | Base Model No. | --- | --- | RF17250S□T-BW1■ | RF17250S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF17300 | 300 | 40 | Base Model No. | --- | --- | RF17300S□T-BW1■ | RF17300S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26200 | 200 | 45 | Base Model No. | --- | --- | RF26200S□T-BW1■ | RF26200S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26250 | 250 | 45 | Base Model No. | --- | --- | RF26250S□T-BW1■ | RF26250S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF26300 | 300 | 45 | Base Model No. | --- | --- | RF26300S□T-BW1■ | RF26300S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF36250 | 250 | 55 | Base Model No. | --- | --- | RF36250S□T-BW1■ | RF36250S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF36300 | 300 | 55 | Base Model No. | --- | --- | RF36300S□T-BW1■ | RF36300S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF430 | 101.6 | 18 | Base Model No. | RF430S□T-BW■ | RF430S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF204 | 66.27 | 22 | Base Model No. | RF204S□T-BW■ | RF204S□T-CW■ | --- | --- | |
| Number of teeth | 8/10/12 | 8/10/12 | ||||||
| RF450 | 101.6 | 22 | Base Model No. | RF450S□T-BW■ | RF450S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF650 | 152.4 | 22 | Base Model No. | RF650S□T-BW■ | RF650S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF214 | 101.6 | 24 | Base Model No. | RF214S□T-BW■ | RF214S□T-CW■ | --- | --- | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF205 | 78.11 | 28 | Base Model No. | RF205S□T-BW■ | RF205S□T-CW■ | --- | --- | |
| Number of teeth | 8/10/12 | 8/10/12 | ||||||
| RF6205 | 152.4 | 28 | Base Model No. | --- | --- | RF6205S□T-BW1■ | RF6205S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 | ||||||
| RF212 | 152.4 | 28 | Base Model No. | --- | --- | RF212S□T-BW1■ | RF212S□T-CW1■ | |
| Number of teeth | 6/8/10/12 | 6/8/10/12 |
