Design Stock

  • We have design stock of highly reliable popular items.
  • Choose from select designs to increase the overall design efficiency of your equipment.

List of Model Numbers

※ Click the model No. for detailed information.

Series, Type Features
(Click on the diagram to enlarge)
Double Pitch RS
S-roller R-roller
Upper Surface Ground Attachment PG Rollers are ground. The upper surfaces of attachments are ground when present.
RF2040S-PG
RF2050S-PG
RF2060S-PG
RF2080S-PG
RF2040R-PG
RF2050R-PG
RF2060R-PG
RF2080R-PG
RS40-PG
RS50-PG
RS60-PG
RS80-PG
RS100-PG
RS120-PG
RS140-PG
RS160-PG
Large Size RS Attachment Chain --- Attachment chain in large sizes (RS180 and above)
--- --- RS180
RS200
RS240
RF320-T
RF400-T
Double Pitch Deep Link Chain DL A Double Pitch Chain with an H1 dimension larger than the roller upper surface. Can directly convey goods, even when using an R-roller.
--- RF2040R-DL
RF2050R-DL
RF2060R-DL
RF2080R-DL
---

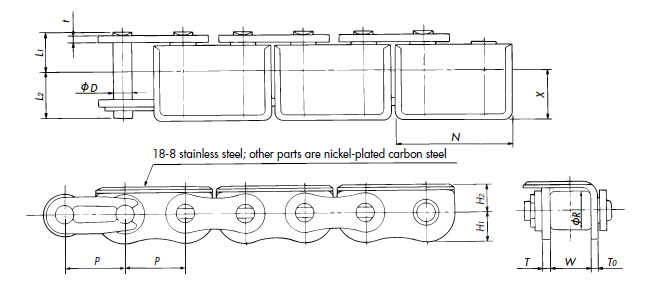

Inward Bending Attachment UM Inward bending attachments allow for items to be directly conveyed or sandwiched and conveyed. The attachment upper surface has been chamfered to prevent damage to conveyed items.
--- --- RS40-UM
RS50-UM
Guide Roller GR Guide rollers are used to prevent meandering and as running rollers.
(Not a lateral bending chain.)
RF2040S-GR
RF2050S-GR
RF2060S-GR
RF2080S-GR
RF2100S-GR
RF2040R-GR
RF2050R-GR
RF2060R-GR
RF2080R-GR
RF2100R-GR
RS40-GR
RS50-GR
RS60-GR
RS80-GR
RS100-GR
Threaded
Extended Pin
EN The extended pins (hardened steel) have been threaded. Jigs can be attached with a bolt.
RF2040S-EN
RF2050S-EN
RF2060S-EN
RF2080S-EN
RF2100S-EN
RF2040R-EN
RF2050R-EN
RF2060R-EN
RF2080R-EN
RF2100R-EN
RS40-EN
RS50-EN
RS60-EN
RS80-EN
RS100-EN
RS120-EN
Extended Pin
with Clip
EC Jigs can be attached with clips.
RF2040S-EC
RF2050S-EC
RF2060S-EC
RF2040R-EC
RF2050R-EC
RF2060R-EC
RS40-EC
RS50-EC
RS60-EC
Stay Pin ST Chains with long pins are in parallel. They are suited to conveying goods atop the pins, or for attaching nets and the like.

RF2040S-ST
RF2050S-ST
RF2060S-ST
RF2080S-ST
RF2100S-ST
RF2120S-ST

RF2160S-ST

RF2040R-ST
RF2050R-ST
RF2060R-ST
RF2080R-ST
RF2100R-ST
RF2120R-ST

RF2160R-ST
RS35-ST
RS40-ST
RS50-ST
RS60-ST
RS80-ST
RS100-ST
RS120-ST
RS140-ST
RS160-ST
Cone Attachment RE Ideal for conveying various bar-shaped items.
--- --- RS40-RE
RS50-RE
RS60-RE
RS80-RE
RS100-RE
Sticker Attachment FS This conveyor chain is ideal for gripping thin items (film, etc.) using its sharp cone-shaped attachments.
--- --- RS50-FS
Gripper Attachment KU This chain grips conveyed items using a clip.
--- --- RS50-KU
RS08B-KU
Film gripper chain KUM This chain grips conveyed items using a clip.
--- --- RS08B-KUM
RS10B-KUM
Attachment with Magnet MG Magnets attract conveying cases, allowing for inclined conveyance.
RF2060S-MG --- ---
Rubber Pad Attachments RSG Rubber pads are baked on. Items can be gripped between the elastic rubber pads and conveyed.
--- --- RS40-RSG-1
RS40-RSG-2
RS40-RSG-3
RS50-RSG-2
RS60-RSG-1
RS60-RSG-2
Crescent CL For flat, circuitous conveyance.
--- RF2050R-CL
RF2060R-CL
RF2080R-CL
RF2100R-CL
---
Riveted Slat SLT Chain with slats. Ideal for conveying rather heavy items.
RF2040S-SLT
RF2050S-SLT
RF2060S-SLT
RF2080S-SLT
RF2040R-SLT
RF2050R-SLT
RF2060R-SLT
RF2080R-SLT
RS40-SLT
RS50-SLT
RS60-SLT
RS80-SLT
Welded Slat SLW RF2060S-SLW
RF2080S-SLW
RF2060R-SLW
RF2080R-SLW
---
