Shock Monitor TSM4000 Series

- Upgraded Shock Monitor capable of quick detection of minimal load fluctuations
- Comes equipped with analog output 0-10V, allowing for actions and monitoring depending on the load.
Features
- ・Safety Design :
The terminal block has a safe design with a cover. The body uses a structure that is impervious to dust infiltration. - ・Analog output :
Comes equipped with analog output 0-10V, allowing for actions and monitoring depending on the load. - ・Environmentally-friendly :
With the backlight auto-off function, helps you with energy-saving operations. Green products containing no hazardous substance restricted under RoHS. - ・User-Friendliness :
Standardized panel-mounted type. Easy terminal wiring at the time of panel installation. Also the body is mountable on DIN rail.
TSM4000 Basic Operation

- ・Based on the preset overload detection level, sends out an abnormal signal when overload (or light-load) conditions continue to exceed the preset period of time (shock time).
- ・Offers 2 types of upper limit abnormal signals and 1 for lower limit. They can be used as an alarm signal or a motor stop signal.
- ・During the motor start time, the overload identifying function does not work to avoid output errors in the course of acceleration.
- ・Torque monitoring function (20 to 120Hz) available for use with an inverter.
- ・When the motor starts, both the set start time and shock time are simultaneously counted and whichever is longer will be effective.
Catalogs ・Instruction Manuals
List of Model Numbers
※Click the model No. for detailed information.

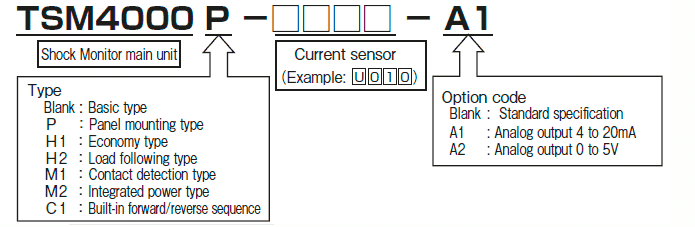

Standard type main unit and current sensor | Panel mounting type main unit and current sensor | Main unit only | Panel mounting bracket | Current sensor | Sensor cable | Double voltage resistor | I/O cable |
---|---|---|---|---|---|---|---|
TSM4000-U010 | TSM4000P-U010 | TSM4000
TSM4000P |
TSM4-PL1 | TSM-U010 | TSM4-S01
TSM4-S03 TSM4-S05 TSM4-S10 TSM4-S20 TSM4-S30 |
TSM4-PR1 | TSM4-C01
TSM4-C03 |
TSM4000-U050 | TSM4000P-U050 | TSM-U050 | |||||
TSM4000-U100 | TSM4000P-U100 | TSM-U100 | |||||
TSM4000-U150 | TSM4000P-U150 | TSM-U150 | |||||
TSM4000-U200 | TSM4000P-U200 | TSM-U200 | |||||
TSM4000-M300 | TSM4000P-M300 | TSM-M300 | |||||
TSM4000-M400 | TSM4000P-M400 | TSM-M400 | |||||
TSM4000-M600 | TSM4000P-M600 | TSM-M600 | |||||
TSM4000-M800 | TSM4000P-M800 | TSM-M800 |
