Bearing Bush Chains
- Conveyor chain for high precision positioning.
- Needle bearings between pins and bushes minimize wear elongation as much as possible.
- Perfect for positioning and tact conveyance.
- Operating Ambient Temperature :-20℃~60℃

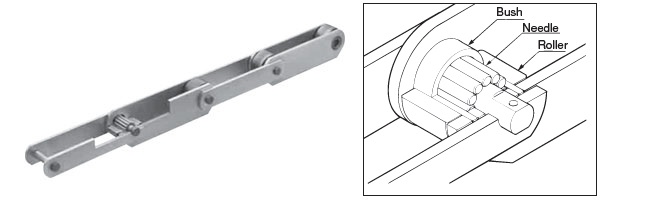

Construction
Catalogs ・Instruction Manuals
List of Models
※Click to see detailed information.
※Maximum allowable load is a value calculated based on Tsubaki in-house standards and is calculated strength. As long as there are no other constraints, maximum allowable load is used in selecting large size conveyor chain.
This value will differ by manufacturer and is not a guaranteed value.
※Contact a Tsubaki representative regarding average tensile strength.
Size | Roller type |
Pitch | Roller diameter |
Inner width of inner link |
|||||
---|---|---|---|---|---|---|---|---|---|
75mm | 100mm | 150mm | 200mm | 250mm | 300mm | Φmm | mm | ||
RF03 | R | RF03075R-NB | --- | --- | --- | --- | --- | 31.8 | 16.1 |
RF05 | R | --- | RF05100R-NB | --- | --- | --- | --- | 40 | 22 |
RF10 | R | --- | --- | RF10150R-NB | --- | --- | --- | 50.8 | 30 |
RF12 | R | --- | --- | --- | RF12200R-NB | --- | --- | 65 | 37.1 |
RF17 | R | --- | --- | --- | RF17200R-NB | --- | --- | 80 | 51.4 |
RF26 | R | --- | --- | --- | --- | RF26250R-NB | --- | 100 | 57.2 |
RF36 | R | --- | --- | --- | --- | --- | RF36300R-NB | 125 | 66.7 |
