Oil Proof Type Ultra PX Belts

  • The rubber for the belt uses an oil resistant material for use in contact with oil. There is almost no decrease in its physical properties.

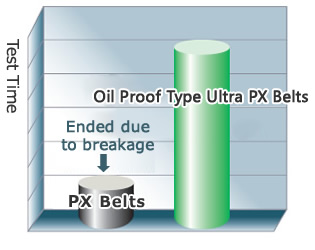

  • Transmission capacity is equivalent to the Ultra PX Belt HC Type. Enables high precision transmission thanks to minimal elongation from operation.

List of Model Numbers

※ Click the model No. for detailed information.

Pitch
mm
Base Model No. Belt width mm
10 15 25 40 60 80 100 120
5 UP5M10-HA
UP5M15-HA
UP5M25-HA
8 UP8M15-HA
UP8M25-HA
UP8M40-HA
UP8M60-HA
14 UP14M40-HA
UP14M60-HA
UP14M80-HA
UP14M100-HA
UP14M120-HA
