Synchronous belt PX Belt RC type

June 2024

1.Applicable product

Synchronous belt PX Belt ：P5M・P8M・P14M Endless belt
Ditto ：P2M・P3M・P5M・P8M Open-ended Belt

※Shinayaka 530 and waterproof types are not applicable.

2.Changes

(1)Model No. ：Type symbol "RC" will be added.

P5M・P8M・P14M Endless belt [ex. ]： BG500P5M10-RC
P2M・P3M・P5M・P8M Open-ended Belt [ex. ]： BG-P2M4-RC-H＋□□□.□M 　Meter (Fraction )
BG-P3M6-RC-T□□□M 　　Standard Length
BG-P5M10-RC-□□□□Y 　Number of teeth specified

(2)Lubricator Performance

Lubricator Performance Compared to the current product
○：With changes, -： No change
P2M･P3M
Open-ended Belt 		P5M･P8M
Endless belt
Open-ended Belt 		P14M
Endless belt
1 Lifetime determination possible Adoption of beige tooth fabric ○ ○ ○
2 Reduces rubber dust scattering Compared to current product -50% ○ ○ ○
3 Reduced mounting tension ※ Compared to current product  Maximum -10% - ○ -
4 Increase flexibility (Bending stiffness ) Compared to current product -20% - ○ -
5 Mounting tension stabilization (Initial stretch ) Compared to current product -20% - ○ ○
6 Improved bending fatigue Compared to current product  1.3x - ○ -

※The mounting tension values ​​are as follows.

P5M Initial tension
Belt width
[mm]		 Current product [N] RC Type [N]
Recommended value Maximum value Recommended value Maximum value
10 108 147 97 132
15 167 225 154 209
25 304 412 276 376
P8M Initial tension
Belt width
[mm]		 Current product [N] RC Type [N]
Recommended value Maximum value Recommended value Maximum value
15 225 294 203 265
25 382 510 363 473
40 657 860 617 807
60 1040 1370 982 1283

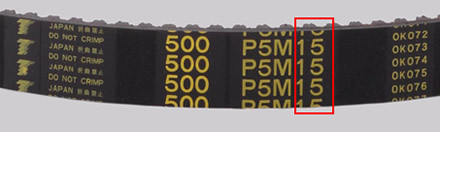

(3)Back mark ：There will be no width indication.

Current product

RC Type (Image picture )

(4)Tooth fabric color

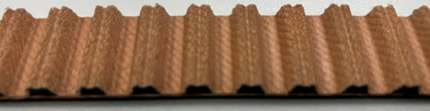

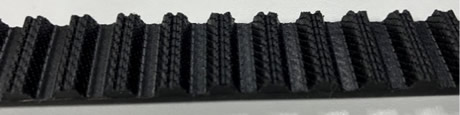

Current product

RC Type

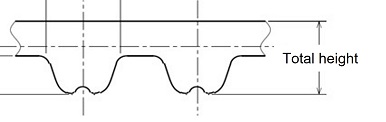

(5)Unit mass and dimensions (total height)

Unit mass
[g/(mm width x m length) ]		 Height
[mm]
Current product RC Type Current product RC Type
P2M 1.4 1.4 1.3 1.3
P3M 2.0 2.0 2.1 2.1
P5M 4.1 3.8 3.6 3.6
P8M 5.6 5.1 5.5 5.0
P14M 9.8 8.6 9.1 8.4
