Plastic top chain Corner Disk for TPUSR
- Plastic top chain Corner Disk for TPUSR550/TPUSR826
-
Application
Corner Discs for TPUSR Chains
For curved layouts with a minimum sideflex radius (R=150 mm), the use of Corner Disc is recommended.
It is expected to reduce tension loads and wear, and also suppresses pulsation.
Plastic top chain Corner Disc list for TPUSR550/TPUSR826 Chains
| Type | - | |||
|---|---|---|---|---|
| Application | Carry Way | Return Way | Carry Way | Return Way |
| Model No. | TPUSR550-CD-R150C | TPUSR550-CD-R150R | TPUSR826-CD-R150C | TPUSR826-CD-R150R |
| Applicable chain model | TPUSR550, TPUSR550P | TPUSR826, TPUSR826P | ||
| Applicable Chain pitch mm | 31.75 | |||
| Applicable Sprocket Shape | - | |||
| Applicable Guide Flange | - | |||
| Applicable hub | - | |||
| shape | |
|||
| Main Body Material | Ultra high molecular weight polyethylene | |||
| Material grade | - | |||
| Base unit appearance color | White | Green | ||
| Knob appearance color | - | |||
| Bearing material | - | |||
| O-ring seal | - | |||
| Construction | - | |||
| flathead screw | Stainless | |||
| Bolt ・Nut Material | - | |||
| Number of teeth | - | |||
| Working number of teeth | - | |||
| Shaft bore style | - | |||
| Bore diameter mm | - | |||
| Plain bore Diameter mm | - | |||
| Maximum Shaft Bore Diameter mm | - | |||
| Width mm | - | |||
| Length mm | - | |||
| Chain sideflex radius R mm | 150 | |||

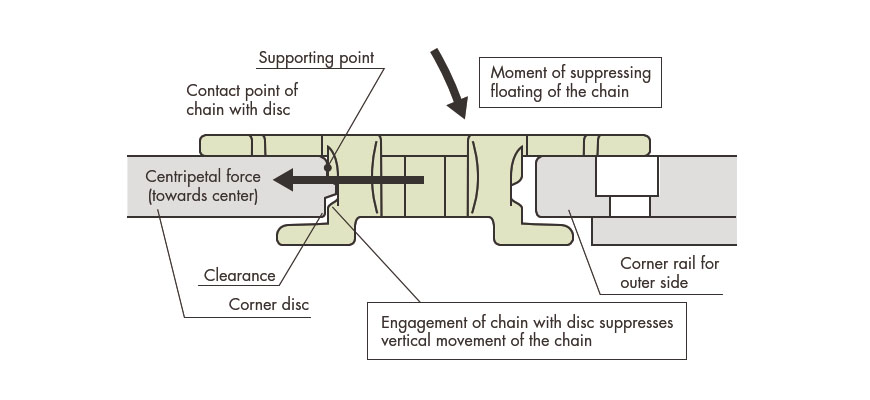

Float-preventive Mechanism
Model No. examples
| TPUSR826 | - | CD | - | R150 | R |
| ｜ Model |
｜ Abbreviated symbol CD：Corner Disk |
｜ Chain sideflex radius |
｜ R：Return Way |
