Top chain accessories Major Specifications
Corner Disk for TPUSR550 Chain ：TPUSR550-CD-R150R
[Click to enlarge ]

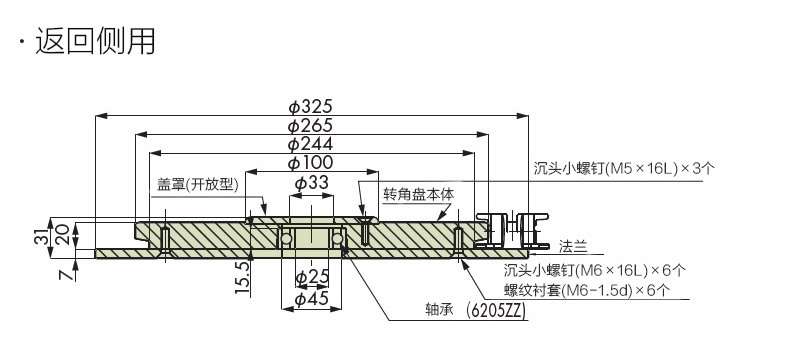

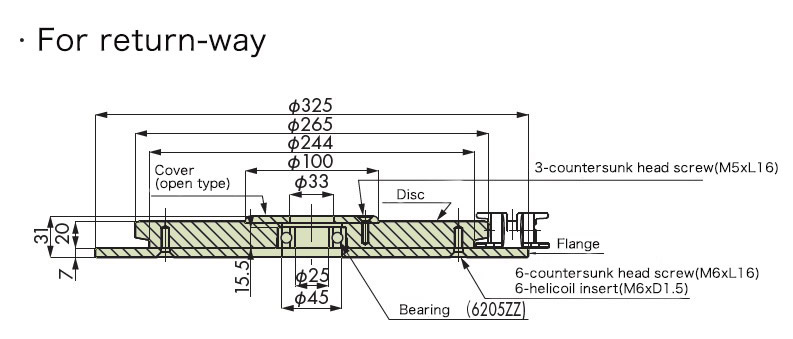

PDF Outline Drawing
CAD data in DXF format
See the table below
(Click here for a list of all DXF files )
Catalogs ・Instruction Manuals
Applicable Chains
TPUSR550, TPUSR550P
Major Specifications
| Applicable | Carry Way | Return Way |
|---|---|---|
| Model No. | TPUSR550-CD-R150C | TPUSR550-CD-R150R |
| Material | Ultra-high molecular weight polyethylene | |
| Color | White | |
| flathead screw material | Stainless steel | |
| Estimated Mass kg | 1.0 | |
| Chain sideflex radius mm | R150 | |
| Operating Temperature Range ℃ | -20～60 | |
| CAD data in DXF format | DXF | DXF |
| Standard Price | Contact us for details. | Contact us for details. |
| Delivery | Contact us for details. | Contact us for details. |
Notes
1.This is a made to order item.
2.Contact a Tsubaki representative if dimensions, bearings, or materials other than those shown in the drawing are required.
3.Recommended for use in dry environments.
4.Stainless steel bearings are also available for use in wet environments where there is exposure to water.
