Plastic top chain TPUH-BO Engineering Plastic Sprockets
- Plastic top chain TPUH-BO Engineering Plastic Sprockets for horizontal conveyance
- Use together with hubs.
-
Application
Product to transmits the power of motor to the chain.
Install to a drive shaft of conveyor.
Plastic top chain TPUH-BO Engineering Plastic Sprocket list
Integrated type(Made of engineering plastic)
| Type | Integrated type |
|---|---|
| Application | - |
| Model No. | TP-C12781LT-SPR |
| Applicable chain model | TPUH-BO |
| Applicable Chain pitch mm | 38.1 |
| Applicable Sprocket Shape | - |
| Applicable Guide Flange | - |
| Applicable hub | TP-C12773T-HB |
| shape |  |
| Main Body Material | Sprocket Material: Polyamide Hub Material: Aluminum |
| Material grade | - |
| Base unit appearance color | Black |
| Knob appearance color | - |
| Bearing material | - |
| O-ring seal | - |
| Construction | - |
| flathead screw | - |
| Bolt ・Nut Material | - |
| Number of teeth | 32 |
| Working number of teeth | - |
| Shaft bore style | Round |
| Bore diameter mm | Φ25 |
| Plain bore Diameter mm | - |
| Maximum Shaft Bore Diameter mm | - |
| Width mm | - |
| Length mm | - |
| Chain sideflex radius R mm | - |

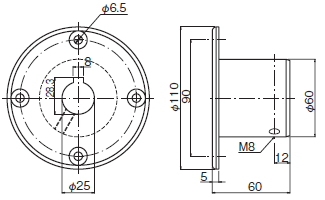

Hub
| Type | - |
|---|---|
| Application | - |
| Model No. | TP-C12773T-HB |
| Applicable chain model | TPUH-BO, TPUH-BO |
| Applicable Chain pitch mm | 38.1 |
| Applicable Sprocket Shape | TP-C12781LT-SPR |
| Applicable Guide Flange | - |
| Applicable hub | - |
| shape |  |
| Main Body Material | Aluminum |
| Material grade | - |
| Base unit appearance color | - |
| Knob appearance color | - |
| Bearing material | - |
| O-ring seal | - |
| Construction | - |
| flathead screw | - |
| Bolt ・Nut Material | - |
| Number of teeth | - |
| Working number of teeth | - |
| Shaft bore style | - |
| Bore diameter mm | - |
| Plain bore Diameter mm | - |
| Maximum Shaft Bore Diameter mm | - |
| Width mm | - |
| Length mm | - |
| Chain sideflex radius R mm | - |
Model No. examples
| TP-C12781LT | - | SPR |
| ｜ Model |
｜ Abbreviated symbol SPR：Sprocket |
|
| TP-C12773T | - | HB |
| ｜ Model |
｜ Abbreviated symbol HB：Hub |
|
