Plastic Guide Rails

  • Plastic rail to support top chain running

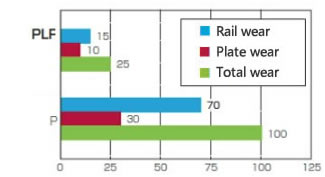

  • A complete line-up of various types available, including ultra-high molecular weight polyethylene chains for general use, plastic chains for superior wear resistance, low friction chains, chains for dry conditions, and others.

List of Model Numbers

※ Click the model No. for detailed information. Click to enlarge.

Straight Rails

Applicable Series
(Click here for a list
of all series.)
Applicable chain number
Top Chain Lineup  Top Chain Lineup


Rail material symbol Model No. Thickness
mm
Width
mm
Main body End Plate
PR type PMW PR520-PMW PRE520-PMW 5 20

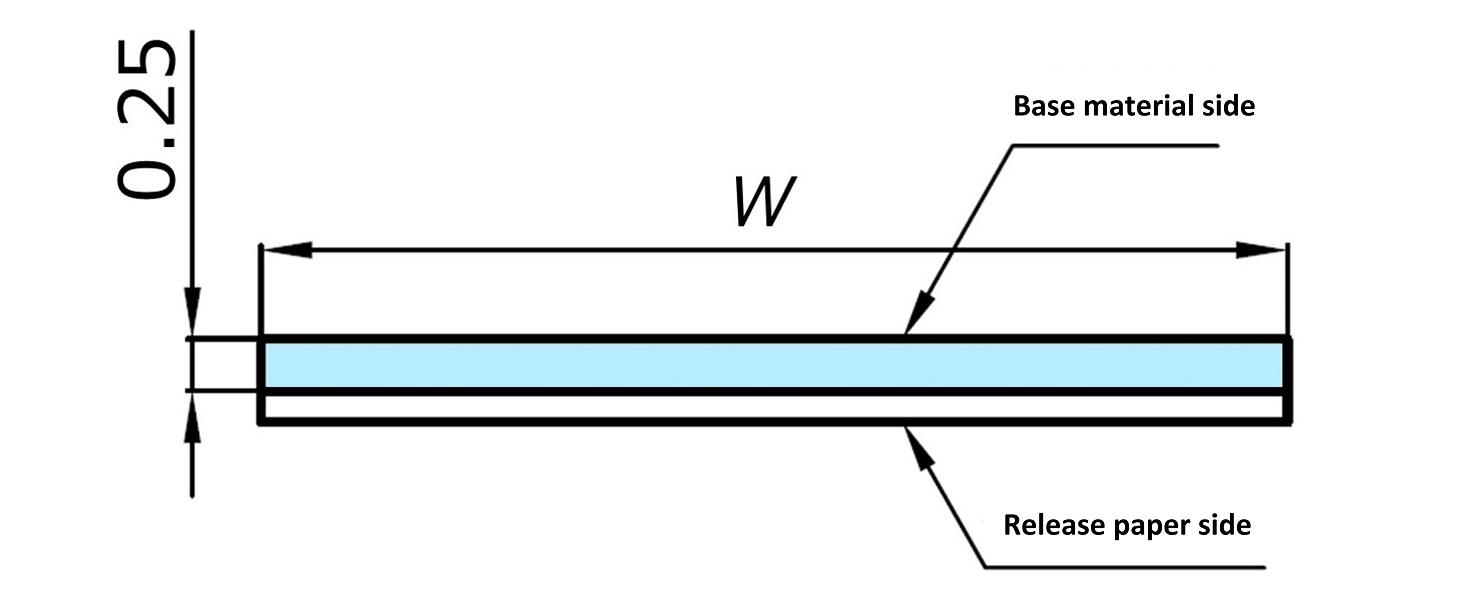

M PR520-M PRE520-M 5 20

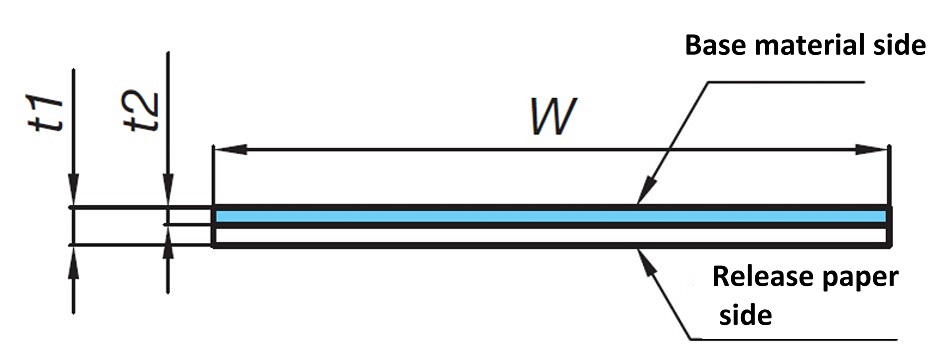

PR-PH type PLF PR-PH□□□-PLF PR-PH□□□E-PLF 3~5 20~40

The plastic rail has no heat resistance or chemical resistance.
Contact a Tsubaki representative when using in special environments or usage conditions.

Plastic Roller Table ST  ST

Base Model No. material symbol Application
PR-ST□00-P P For single strand
PR-ST□00-P-2 For use in the center of multiple strands
Plastic Roller Table RT  RT

Base Model No. material symbol Application
PR-RT□00-P P For single strand
RSP80  RSP80

Model No. Length
m
PR-RSP80-□-2M 2

Corner Rails

Search for applicable sideflexing plastic guide rails for the chain model number .

Applicable Series
(Click here for a list
of all series.)
Applicable chain number
TTUP826  TTUP826, TTUPH826, TTUP826P, TTU826-N

Base Model No. sideflex radius No. of strands material symbol
PR-TTUP826 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TTUP1143  TTUP1143, TTU1143-N, TTUP1143P

Base Model No. sideflex radius No. of strands material symbol
PR-TTUP1143 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TTUP1905  TTUP1905, TTU1905-N

Base Model No. sideflex radius No. of strands material symbol
PR-TTUP1905 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TPU826  TPU826-T, TPU826P-T, TPUM826-T

Base Model No. sideflex radius No. of strands material symbol
PR-TPU826 500, 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TNU826P  TNU826P

Base Model No. sideflex radius No. of strands material symbol
PR-TNU826 500, 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TNU1143P  TNU1143P

Base Model No. sideflex radius No. of strands material symbol
PR-TNU1143 500, 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TNU1270P  TNU1270P

Base Model No. sideflex radius No. of strands material symbol
PR-TNU1270 500, 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TTKU826  TTKU826

Base Model No. sideflex radius No. of strands material symbol
PR-TTKU826 500, 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TRU826  TRU826-T

Base Model No. sideflex radius No. of strands material symbol
PR-TRU826 500, 600, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
TPUS1143, TPUS953-LBP, TPUS953Y-LAP  TPUS1143-T, TPUS953-T-LBP, TPUS953Y-T-LAP

Base Model No. sideflex radius No. of strands material symbol
PR-TPUS1143 610, 700, 800 ,900 ,1000 1, 2 P, PMW, M, PLF
TPUS1905  TPUS1905-T

Base Model No. sideflex radius No. of strands material symbol
PR-TPUS1905 610, 700, 800 ,900 ,1000 1, 2, 3 P, PMW, M, PLF
RSP60-CU  RSP60-CU, RSP60P-CU

Base Model No. sideflex radius No. of strands material symbol
PR-RSP60 600, 700, 800 ,900 ,1000 1 P, PMW, M, PLF
RSP60-CU-2  RSP60-CU-2

Base Model No. sideflex radius No. of strands material symbol
PR-RSP60-2 600, 700, 800 ,900 ,1000 1 P, PMW, M, PLF

Magnet-embedded plastic rails

Applicable Series
(Click here for a list
of all series.)
Applicable chain number
TTUPM838H  TTUPM838H

Base Model No. sideflex radius No. of strands material symbol
PR-TTUPMH 500 1 P
