Chain guide parts Return roller/Spacer for stainless steel top chain
- Return roller/Spacer for stainless steel top chain
- Ideal as a chain supporter on the return side of stainless steel top chains/conveyors.
-
Application
Use as a chain supporter on the conveyor return side.
Rollers rotate to reduce sliding resistance and reduce scratches on the top surface of chain.
Use in combination with Guide Flanges.
-
Usage image
[Click to enlarge ]
[Click to enlarge ]

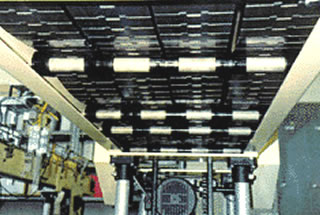

Application example of return roller for stainless steel top chain
Parts used
- ・Both ends ： Return roller for stainless steel top chain
- ・Middle section ： Double roller (for stainless steel top chain)
- ・TT1905 multi-strand conveyor
- ・Prevents scratches by supporting the chain on the return side with rollers.
- ・Use plastic pipe as a spacer
Layout used
Advantage
※Adjustable to suit plate width.
Return roller/Spacer list
Return roller for stainless steel top chain
| Type | - | |
|---|---|---|
| Model No. | TP-C12822NT-RR | TP-C12862NT-DR |
| Other functions | - | |
| Applicable Guide Flange model number | - | |
| Applicable Sprocket model number | - | |
| Applicable Spacer model number | TP-C12824NT-DT | |
| Applicable Washer model number | - | |
| Dedicated rail model number | - | |
| Applicable Sliding shoe model number | - | |
| shape |  |
 |
| Main Body Material | High-density polyethylene | |
| Base unit appearance color | Black | |
| Peripheral material | - | |
| Peripheral appearance color | - | |
| Roller appearance color | - | |
| Pin/hexagon socket bolt Material | - | |
| Outer Diameter mm | Φ51 | Φ42 |
| Inner diameter mm | Φ20.5 | |
| Width mm | 27.5 | 51 |
| Equivalent to MB | MB73-5068-RR | MB125-68873-DR |
Spacer (for plate width 82.6 mm)
| Type | - |
|---|---|
| Model No. | TP-C12824NT-DT |
| Other functions | - |
| Applicable Return Roller model number | TP-C12822NT-RR, TP-C12862NT-DR |
| Applicable Sprocket model number | - |
| Applicable Spacer model number | - |
| Applicable Washer model number | - |
| Dedicated rail model number | - |
| Applicable Sliding shoe model number | - |
| shape |  |
| Main Body Material | Polyamide |
| Base unit appearance color | Black |
| Peripheral material | - |
| Peripheral appearance color | - |
| Roller appearance color | - |
| Pin/hexagon socket bolt Material | - |
| Outer Diameter mm | Φ26 |
| Inner diameter mm | Φ20.5 |
| Width mm | 31 |
| Equivalent to MB | MB126-6252-DT |
