Chain guide parts Major Specifications
Catalogs ・Instruction Manuals

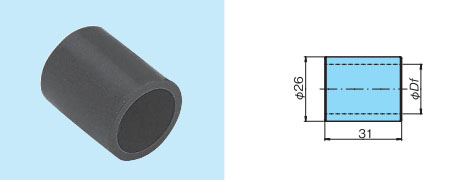

Spacer (DT)
[Click to enlarge ]
| Model No. | Shaft diameter Df |
Material | Color | Equivalent to MB | Operating Temperature Range ℃ |
DXF data | Standard Price | Delivery | PDF Outline Drawing |
|---|---|---|---|---|---|---|---|---|---|
| TP-C12824NT-DT | 20.5 | Polyamide | Black | MB126-6252-DT | -20～80 (except in hot water environments ) |
DXF | Contact us for details. | Contact us for details. |
Notes
1.For plate widths other than 82.6mm, cut PVC pipe or similar material to the required width and assemble with the return roller shown above.
