Product guide parts Tray Supporter/Fixing Washer
- Tray Supporter/Fixing Washer
- Use for installing tray.
-
Application
Use it for installing trays such as drain pans and water receivers.
Use with dedicated Fixing Washers (for M10 bolts)
-
Usage image
[Click to enlarge ]
[Click to enlarge ]
[Click to enlarge ]
Tray Supporter/Fixing Washer list
Tray Supporter
| Model No. | TP-C13250T-TS | TP-C13255T-TS |
|---|---|---|
| Type | Curve | Straight |
| Applicable Adjustable Head model number | - | |
| Pin diameter mm | - | |
| shape |  |
 |
| Material | - | |
| Head material | - | |
| Head appearance color | - | |
| Material other than Head | - | |
| Body material | Polyamide | |
| Body appearance color | Black | |
| Element material | Stainless Steel | |
| Plate material | - | |
| Plate appearance color | - | |
| Washer material | - | |
| Equivalent to MB | MB226-62071-TS | MB226-61767-TS |
Fixing Washer
| Model No. | TP-C13252T-MP |
|---|---|
| Type | - |
| Applicable Adjustable Head model number | - |
| Pin diameter mm | - |
| shape |  |
| Material | - |
| Head material | - |
| Head appearance color | - |
| Material other than Head | - |
| Body material | - |
| Body appearance color | - |
| Element material | - |
| Plate material | Polyamide |
| Plate appearance color | Black |
| Washer material | Stainless Steel |
| Equivalent to MB | MB338-67325-MP |

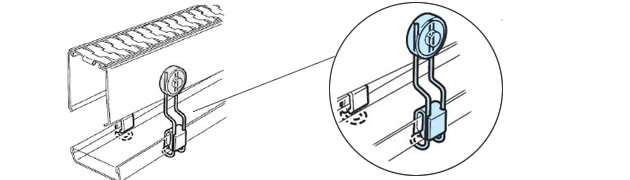

Tray Supporter Installation Examples
Install Fixing Washers in combination with Tray supporter and M10 bolts.
