Mechanical Protectors  Shock Guard  TGM Series

High-precision sealed type. Recommended for applications that require high environmental resistance to dirt, grease, and water.

  • Sealed structure
  • High trip torque accuracy
  • Single position
  • Non-backlash
  • Auto reset
  • Longevity

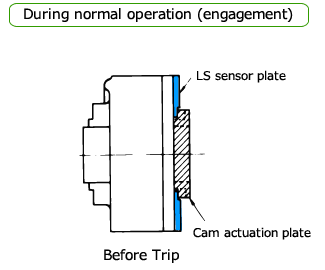

  • LS detection plate for overload detection
  • Easy torque adjustment
  • No greasing required

Model No. Designation

※No-coupling type

TGM 60 - TH30JDY - WS - N25

Series

Size

Shaft bore code



Set torque value
N・m
Spring type
SS: Enhanced spring
WS: Weak spring
NO : Standard spring

※ Coupling type

TGM 60 C - TH20JDY X CH30ED2 - WS - N98

Series

Size




Shock Guard side
Shaft bore code

Coupling side
Shaft bore code

Spring type

Set torque value
N・m
Coupling type
Details regarding shaft bore codes
Shaft bore tolerance Shaft Bore Diameter Keyway tolerance Set screw positioning
T H 20 J DY
C H 30 E D2
T: Shock Guard side
C: Coupling side
F:F7
G:G7
H:H7
J:JS7
P:P7
M:M7
N:N7
K:K7
R:R7
Shaft bore diameters are in 1mm units. J:New JIS Js9( Standard )
P:New JIS P9
F:Old JIS F7
E:Old JIS E9

[ Click to enlarge ]

Model No. Navigation

Selected model No.:

* Select each item in order from the left to make sure a valid model number is generated.

Series Size Type Shaft Bore Diameter Shaft bore
tolerance
Keyway
tolerance
Set screw positioning Spring strength Set torque
value
 TGM

Shock guard side
1.5

3.7
  N・m
Coupling side

List of Model Numbers

Sizing

Our selection calculator will select the right Shock Guard from Tsubaki's entire Shock Guard series to match your usage conditions.
