ECHT-FLEX Coupling NES Series (Disk Couplings )
- This small disk coupling is ideal for a small servomotor drive.
- The small disk coupling with the hub and spacer made of extra super duralumin.
- The straight hub focused torsional stiffness, and the low inertia hub even for lower inertia are available.
- ・Applicable shaft diameter :Φ4mm~Φ50mm
- ・Torque range :0.7~300N・m
Kind of hub
- ・Emphasis on torsional stiffness
Straight hub
- ・Emphasis on Low inertia
Low inertia hub
- ・Utilization of both characteristics
Low Inertia x Straight Hub
Features
-
・High torsional stiffness
The straight hub features high torsional stiffness and excellent responsiveness for servomotor drives. Most suitable for precise control.
-
・Low moment of inertia
Provides low inertia moment by employing light-weight and high-strength extra super duralumin for the hub and spacer, and by unique configuration for the low inertia hub. Ideal for high acceleration/deceleration operations such as a servomotor drive.
-
・Non-backlash
There is no backlash as all torque is transmitted by friction connections. Perfect for high-precision positioning.
-
・Easy mounting
Both sides of the hub are assembled to ensure concentricity. Can be connected with the shaft by simply tightening one clamp bolt on each side.
-
・Extensive Lineup
Can meet the wide variety of needs with 56 combinations of low inertia and straight hubs, supporting 3252 patterns of different shaft bore diameters.
-
・Environmentally Friendly
This product is compliant with the RoHS directive, as well as hazardous chemical substance regulations JIG, PFOS and 15 SVHCs.
Line-up
Model No. | Type | Allowable Torque N・m |
Range of Shaft Bore Diameters | Model No. | Type | Allowable Torque N・m |
Range of Shaft Bore Diameters |
---|---|---|---|---|---|---|---|
NES07 | Single ・Spacer | 0.7 | Φ4~Φ6 | NES100 | Single ・Spacer | 10 | Φ8~Φ22 (Φ15) |
NES15 | Single ・Spacer | 1.5 | Φ4~Φ8 | NES250 | Single ・Spacer | 25 | Φ10~Φ25 (Φ20) |
NES20 | Single ・Spacer | 2.0 | Φ5~Φ10 | NES800 | Single ・Spacer | 80 | Φ14~Φ30 (Φ24) |
NES30 | Single ・Spacer | 3.0 | Φ6~Φ16 | NES1300 | Single ・Spacer | 130 | Φ20~Φ35 (Φ32) |
NES50 | Single ・Spacer | 5.0 | Φ6~Φ16 (Φ10) | NES2000 | Single ・Spacer | 200 | Φ25~Φ45 (Φ35) |
NES70 | Single ・Spacer | 7.0 | Φ8~Φ20 (Φ14) | NES3000 | Single ・Spacer | 300 | Φ35~Φ50 (Φ42) |
※Low inertia hubs are available from NES50 to NES3000. Dimensions in ( ) is the maximum shaft bore diameter of low inertia hubs.
Shaft coupling method
・Clamp fastening ※We also manufacture keyway processing (clamp + keyway), taper shaft support, and adapter specifications. Contact a Tsubaki representative for more information.

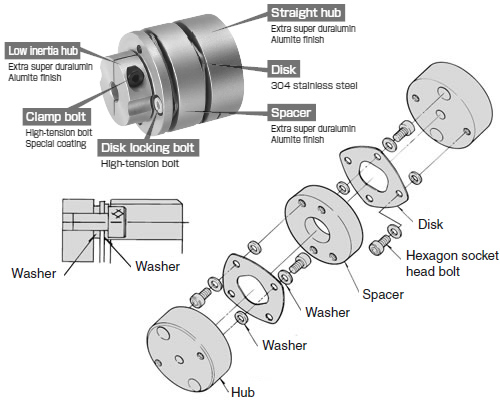

Structure / Material
Catalogs ・Instruction Manuals
Model No. examples
NES | 100 | W | - | D | 10 | C | X | N | 20 | C |
| Series |
| Size |
| | | | | | | | |
| | | | | |
| Left Hub Shaft Bore Diameter mm |
| Left Hub Shaft Clamping Method C:Clamp shaft bore |
| | | | | |
| Right Hub Shaft Bore Diameter mm |
| Right Hub Shaft Clamping Method C:Clamp shaft bore |
||
Left Hub Type N:Straight hub D:Low inertia hub |
Right Hub Type N:Straight hub D:Low inertia hub |
|||||||||
Type W:Spacer type S:Single hub |
