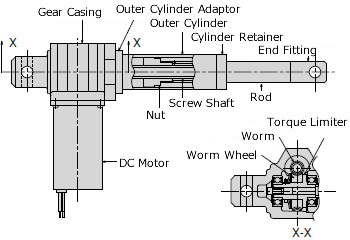

Power Cylinder   F Series

Features

  • Lightweight, compact
  • Efficient use of installation space
  • Free range of power supply voltages
  • Wide variety of options

Thrust

  • 100N~6.00kN {10.2kgf~612kgf}

Model No. Designation

LPF 040 L 2.0 V

Series

Rated Thrust

Rated Speed

Stroke

Voltage code
Power Cylinder
F Series
010:100N{10.2kgf}
020:200N{20.4kgf}
040:400N{40.8kgf}
100:1.00kN{102kgf}
200:2.00kN{204kgf}
300:3.00kN{306kgf}
600:6.00kN{612kgf}
L、M、H
  Refer to the detailed information for the speed values for each model.
0.5:50mm
1.0:100mm
1.5:150mm
2.0:200mm
2.5:250mm
3.0:300mm
4.0:400mm
5.0:500mm
6.0:600mm
No symbol :DC12V
    V:DC24V

Model No. Navigation

Selected model No.:

* Select each item in order from the left to make sure a valid model number is generated.

Series Rated Thrust Rated Speed Stroke Voltage code

LPF






















Rated Thrust

This is the rated thrust at which the product can operate.

Rated Speed

This is the operating speed when the unit generates the rated thrust.

Refer to the detailed information for the speed values for each model.

Stroke

This is the stroke distance of the actuator.

The manufacturing scope depends on the thrust.

Voltage code

V: This specifies the 24 VDC power supply.

Option symbol

L: This unit comes with a limit switch for adjusting the stroke.

K2: This unit has a built-in micro switch for detecting the stroke position.

P: This unit comes with a potentiometer.

J: This comes with bellows.

List of Model Numbers

※ Click the model No. for detailed information.

Thrust
{kgf}
Stroke
mm
Speed  L Speed  M Speed  H
Supply voltage 12V Supply voltage 24V Supply voltage 12V Supply voltage 24V Supply voltage 12V Supply voltage 24V
100

{10.2}
 50 --- --- --- --- LPF010H0.5 LPF010H0.5V
100LPF010H1.0 LPF010H1.0V
150LPF010H1.5 LPF010H1.5V
200LPF010H2.0 LPF010H2.0V
300LPF010H3.0 LPF010H3.0V
200

{20.4}
 50 --- --- LPF020M0.5 LPF020M0.5V --- ---
100LPF020M1.0 LPF020M1.0V
150LPF020M1.5 LPF020M1.5V
200LPF020M2.0 LPF020M2.0V
300LPF020M3.0 LPF020M3.0V
400

{40.8}
 50 LPF040L0.5 LPF040L0.5V --- --- --- ---
100LPF040L1.0 LPF040L1.0V
150LPF040L1.5 LPF040L1.5V
200LPF040L2.0 LPF040L2.0V
300LPF040L3.0 LPF040L3.0V
1.00k

{102}
 50 --- --- --- --- LPF100H0.5 LPF100H0.5V
100LPF100H1.0 LPF100H1.0V
150LPF100H1.5 LPF100H1.5V
200LPF100H2.0 LPF100H2.0V
300LPF100H3.0 LPF100H3.0V
2.00k

{204}
 50 --- --- LPF200M0.5 LPF200M0.5V --- ---
100LPF200M1.0 LPF200M1.0V
150LPF200M1.5 LPF200M1.5V
200LPF200M2.0 LPF200M2.0V
300LPF200M3.0 LPF200M3.0V
3.00k

{306}
 50 LPF300L0.5 LPF300L0.5V --- --- --- ---
100LPF300L1.0 LPF300L1.0V
150LPF300L1.5 LPF300L1.5V
200LPF300L2.0 LPF300L2.0V
300LPF300L3.0 LPF300L3.0V
6.00k

{612}
100 LPF600L1.0 LPF600L1.0V --- --- --- ---
200LPF600L2.0 LPF600L2.0V
300LPF600L3.0 LPF600L3.0V
400LPF600L4.0 LPF600L4.0V
500LPF600L5.0 LPF600L5.0V
600LPF600L6.0 LPF600L6.0V
