Drawing Library   ECHT-FLEX Coupling NEF Series

Model No. Designation

NEF 25 W - NH70ED2 V X KH120JD2 - J 1000

Series

Size




Left hub type symbol




Right hub type symbol




Distance J
Type
W: Spacer type
S: Single hub
Standing type
Indicates bore diameter at ground(bottom) side in upright long spacer type.
Long spacer
J: Long spacer
JS: Long Spacer (standard length)
JT: Single Disk Spacer
Refer to the catalog for details on the Long Spacer Type.
Details of hub type symbol
Hub style Shaft bore tolerance Shaft Bore Diameter Keyway tolerance Set screw positioning

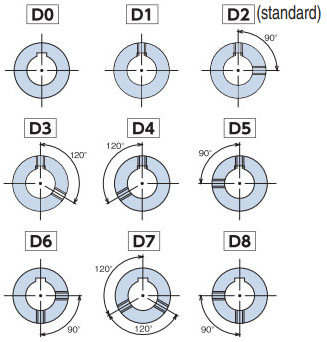

N H 70 E D2
K H 120 J D2
N: Standard Hubs
K: Extended Dia. Hub
L: Long Hub
B: Square hub
H: Taper Lock hub
F:F7
G:G7
H:H7
J:JS7
P:P7
M:M7
N:N7
K:K7
R:R7
Shaft bore diameters are in 1mm units. J:New JIS Js9( Standard )
P:New JIS P9
F:Old JIS F7
E:Old JIS E9

[ Click to enlarge ]
