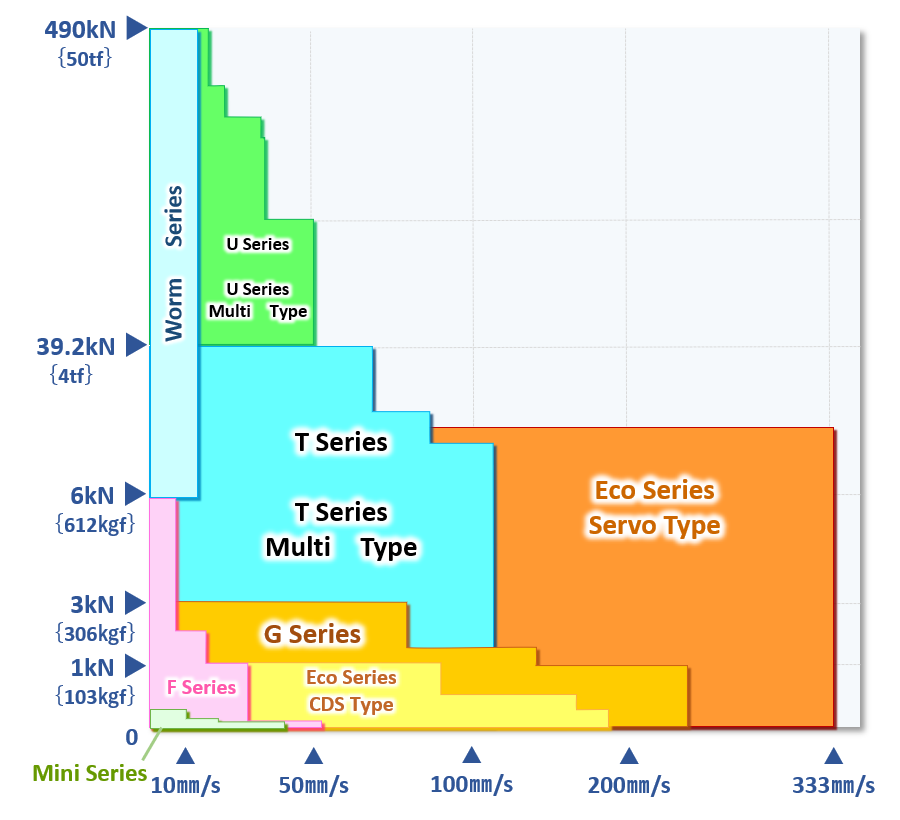

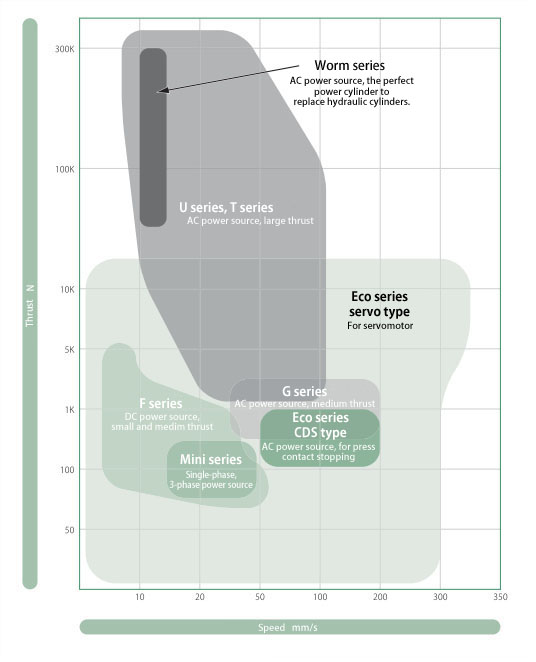

Selection Guide   Power Cylinder

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

Your search matched multiple series.
Select from one of the items below.

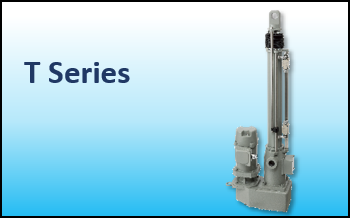

T Series


Rated Thrust
2.45~313kN
{250~
32000kgf}

This power cylinder can be driven by AC power for large thrust applications. It can be used in a wide range of applications, such as steel, injection molding, LCD and semiconductor manufacturing equipment, etc. It can also be used outdoors (IP 55).


● Available in two types
TB type: built-in wet spring clutch
TC type: with thrust detection limit switch

● Wide variation
A wide variety of models are available depending on the application, thrust, and speed.

● Positive actuation
This unit uses a high efficiency ball screw and quiet gear reducer with a reliable brake motor. It also has a highly reliable built-in safety device for protection against overloads.

● Wide variety of options
・ Stroke adjustment limit switch
・ Potentiometer
・ Rotary encoder
and more

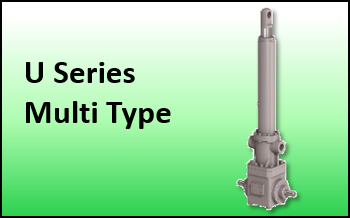

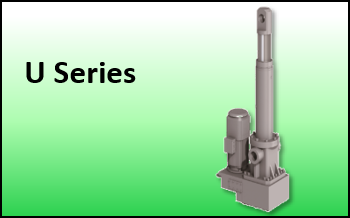

U Series


Rated Thrust
58.8~313kN
{6000~
32000kgf}

A power cylinder with more than 6 tons of thrust that's smaller, lighter weight, and has a higher cost performance while maintaining the same performance of the previous model (T series). It can replace hydraulic cylinders on press machines, casting machines, and table lifters, as well as find use in conventional steel and environmental equipment.


● Lightweight and compact
Entire length size is a maximum of 11% shorter and 40% lighter than the previous model (T series).

●Complete line-up available
A new 22,000 size (rated thrust 215 kN) has been added, and a wide range of models in the thrust range of over 6 tons are available.

●Improved cost performance
Cost performance has been also improved by using new technology to realize a smaller size and lighter weight.

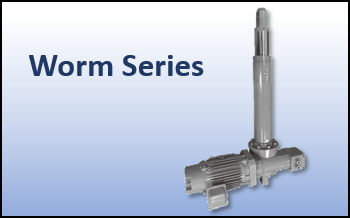

Worm Series


Rated Thrust
49~294kN
{5000~
32000kgf}

The Worm Series Power Cylinder is the perfect power cylinder for replacing hydraulic cylinders. Worm Series LPWB provides large thrust by using a high precision worm gear and a highly efficient ball screw manufactured with technology based on nearly a century of manufacturing tradition.


● Clean
● Easy installation
● Accurate control
● Low cost
● High load capacity

T Series

Introducing Our Special Packages

【 Scum skimmer specification 】

・ Energy saving

・ The equipment construction is simple and low-cost.

・ It can withstand harsh environments.

・ Wide variety of options

・ Extensive track record

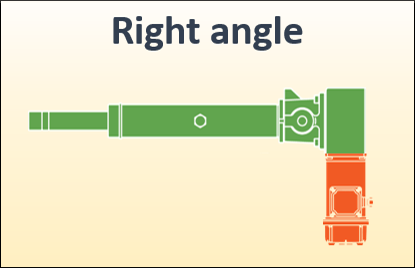

【 Right-angle specification 】

The motor shaft is at a right-angle to the actuating portion of the power cylinder.


・ Low speed

・ Low Noise

・ Fall prevention mechanism

・ Wide variety of options

・ Space saving

・ Globally compliant


【 Adapter Type 】

The customer can conveniently mount IEC-standard flange-mount brake motor, motors that comply with international standards (UL, CE, CCC, etc.), and other special motors, such as explosion-proof motors.

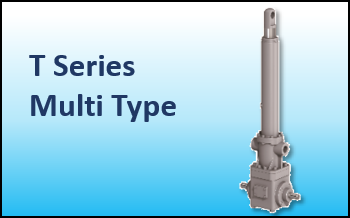

Multi Series

Allowable Thrust
4.94kN~313kN
{500kgf~32000kgf}

Multiple cylinders can be driven synchronized to a single motor.
TB type: compact and economical
TC type: with thrust detection safety switch

● Rugged construction
The load-supporting actuator and gear reducer are separate.
Fluctuating loads will not affect the contact on the gear teeth.

● Drive multiple units together
The input shaft has sufficient strength to drive multiple units.

● Longevity
A ball screw with heavy loading capacity is used for extended life.

● Capable of oscillation
The input shaft and the trunnion are coaxial, which allows oscillation during synchronized operation.

● Safe
This unit has a protective built-in thrust detection mechanism that detects overloads. (LPTC)

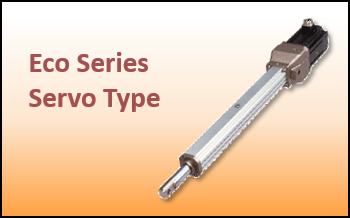

Eco Series Servo Type

Maximum Thrust
150N~15.0kN
{15.3~
1530kgf}

High-speed with a wide range of thrust options
Good stopping accuracy
High-frequency starts and stops

Model No. Applicable servo motors Frame Size
LPES015
LPES030
0.03~0.35kW 45 Frame
LPES150
LPES300
0.1~2kW 70 Frame
LPES1500 0.3~11kW 105 Frame

Eco Series Servo Type

Introducing Our Special Packages

【 Waterproof type 】

・ Protection :IP65

・ Compatible with frame sizes 70 and 105.


【 Low-speed type 】

・ Reduces cost of the overall equipment.

・ Lightweight and compact

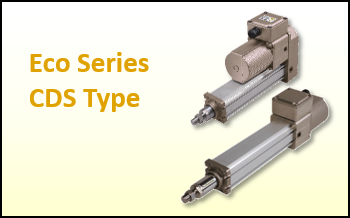

Eco Series CDS Type

Rated Thrust
250N~1.00kN
{25.5kgf~102kgf}


CDS
(Current Detective System)
Detects overload current and stops the motor

● Self-contained
● Environmentally-friendly
● Lower running cost
● High-frequency starts and stops, longevity
● Simple operation

Eco Series CDS Type

Introducing Our Special Packages

【 Outdoor specification 】

・ Protection :IP55

・ Compatible with all CDS types.

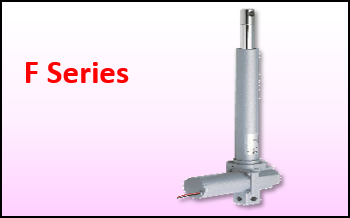

F Series

Rated Thrust
100N~6.00kN
{10.2kgf~612kgf}

This power cylinder can be driven by DC power for small thrust applications.
It can also be AC-power driven using the optional adapter.
This unit is ideal for outdoor applications, such as farming machines and vertical parking carousels.
● Lightweight, compact
● Efficient use of installation space
● Free range of power supply voltages

● Wide variety of options
・ External limit switch for adjusting the stroke length
・ Bellows
・ Position Detection Unit
・ Overload Detection Unit


F Series

Introducing Our Special Packages

【 Plus α 】

Ver.3

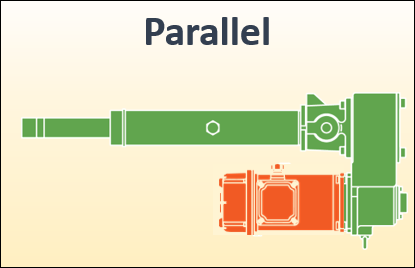

Parallel

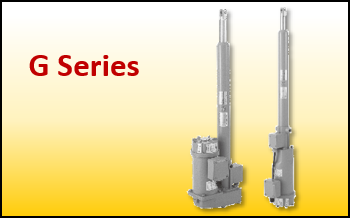

G Series

Rated Thrust
700N~3.00kN
{71.4kgf~306kgf}

This power cylinder can be driven by AC power for medium thrust applications.
This unit can be used in a wide range of general industrial applications, such as steel, food, and vertical parking carousels.

● Wide variation
LPGA: Simple, economic, and basic model
LPGB: Features a built-in slip type overload protection mechanism
LPGC: Features a built-in thrust detection and press-stopping mechanism

● Stable, high efficiency, longevity
This unit uses a self-centering trapezoidal screw and suitable nut material to deliver consistent high efficiency and longevity.

● Silent operation
The quiet DC brake motor significantly reduces noise during starts and stops.

● Excellent speed stability
This uses the basic structure of a screw shaft that is turned by an induction motor which moves the nut (rod) forward or reverse.
Provides constant speed motion unaffected by load fluctuation.


G Series

Introducing Our Special Packages

【 Right-angle specification 】
The motor shaft is at a right-angle to the actuating portion of the power cylinder.

・ Low speed
・ Low Noise
・ Fall prevention mechanism
・ Wide variety of options
・ Space saving
・ Globally compliant


【 Simple Wiring Specifications 】

Tsubaki wires the limit switch for thrust detection, external adjustment, etc., prior to shipment.

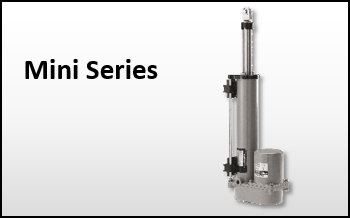

Mini Series

Rated Thrust
98.0N~392N
{10kgf~40kgf}

This series is suitable for automating everyday low-power tasks.
Let these units work for you in packing and conveying equipment.

● Runs on a single phase power supply.
These units can be used with household single-phase power. No extra devices required. ( Also available with three-phase motors and brake motors. )
The models with a potentiometer are ideal for remote control applications.

● Designed for longevity
Designed for longevity with a diecast construction, grease sealed design, and large diameter thread.

● Wide variety of options
・ Stroke adjustment limit switch
・ Potentiometer
・ Bellows
・ Trunnion bracket
and more
