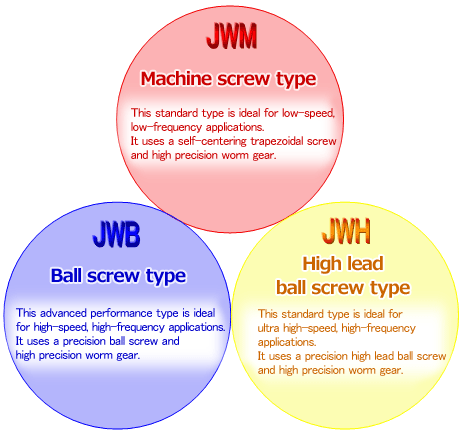

Selection Guide Linipower Jack
Trapezoidal screw type
【For basic type for lifting 】
Frame number | : | 002~1000 |
Basic Capacity | : | 1.96~980kN |
: | 0.2~100tf | |
Screw size | : | 12~150mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For basic type for suspending 】
Frame number | : | 002~1000 |
Basic Capacity | : | 1.96~980kN |
: | 0.2~100tf | |
Screw size | : | 12~150mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For travel nut type for lifting 】
Frame number | : | 002~1000 |
Basic Capacity | : | 1.96~980kN |
: | 0.2~100tf | |
Screw size | : | 12~150mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For travel nut type for suspending 】
Frame number | : | 002~1000 |
Basic Capacity | : | 1.96~980kN |
: | 0.2~100tf | |
Screw size | : | 12~150mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
Ball screw type
【For basic type for lifting 】
Frame number | : | 005~1000 |
Basic Capacity | : | 4.90~980kN |
: | 0.5~100tf | |
Screw size | : | 16~140mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For basic type for suspending 】
Frame number | : | 005~1000 |
Basic Capacity | : | 4.90~980kN |
: | 0.5~100tf | |
Screw size | : | 16~140mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For travel nut type for lifting 】
Frame number | : | 005~200 |
Basic Capacity | : | 4.90~196kN |
: | 0.5~20tf | |
Screw size | : | 16~63mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For travel nut type for suspending 】
Frame number | : | 005~200 |
Basic Capacity | : | 4.90~196kN |
: | 0.5~20tf | |
Screw size | : | 16~63mm |
Worm Reduction Ratio | : | H・LSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
High lead ball screw type
【For basic type for lifting 】
Frame number | : | 010~200 |
Basic Capacity | : | 9.80~196kN |
: | 1.0~20tf | |
Screw size | : | 20~63mm |
Worm Reduction Ratio | : | HSpeed |
Stroke | : |
100~2000mm *Depends on the frame size and package. |
【For basic type for suspending 】
Frame number | : | 010~200 |
Basic Capacity | : | 9.80~196kN |
: | 1.0~20tf | |
Screw size | : | 20~63mm |
Worm Reduction Ratio | : | HSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For travel nut type for lifting 】
Frame number | : | 010~200 |
Basic Capacity | : | 9.80~196kN |
: | 1.0~20tf | |
Screw size | : | 20~63mm |
Worm Reduction Ratio | : | HSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
【For travel nut type for suspending 】
Frame number | : | 010~200 |
Basic Capacity | : | 9.80~196kN |
: | 1.0~20tf | |
Screw size | : | 20~63mm |
Worm Reduction Ratio | : | HSpeed |
Stroke | : | 100~2000mm *Depends on the frame size and package. |
