Technical Data  Top chain  Handling

4-2. Select sprockets, shafts, and bearing units

Select a shaft, bearing, and sprocket that satisfy requirements based on the shaft capacity graphs tables 10 to 24 below, and the type of shafts and corresponding bearing units (refer to product page).

Note) F' tension on the chain width per meter has a limit in some types of bearings (according to the internal diameter of the bearing).

Relation between chain tension (F') per 1 m of chain width and bearing unit support span

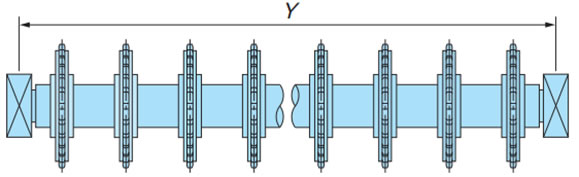

1) Relation between bearing support span Y and chain width X
For 40, 50 and 60 square shafts: Approximately Y = X + 150 (mm)

Note) Operating Temperature Range ：-20～80℃

Relation between chain tension (F') per 1 m of chain width and bearing unit support span

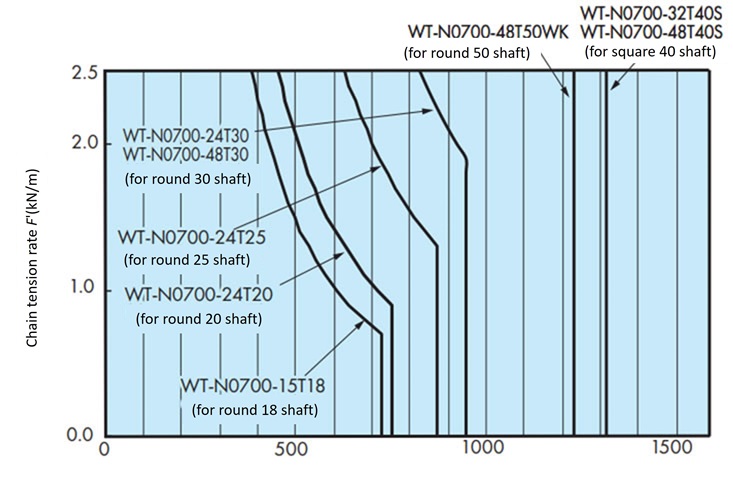

Table 10. WT0405-W /Shaft capacity graph

Shaft capacity graph

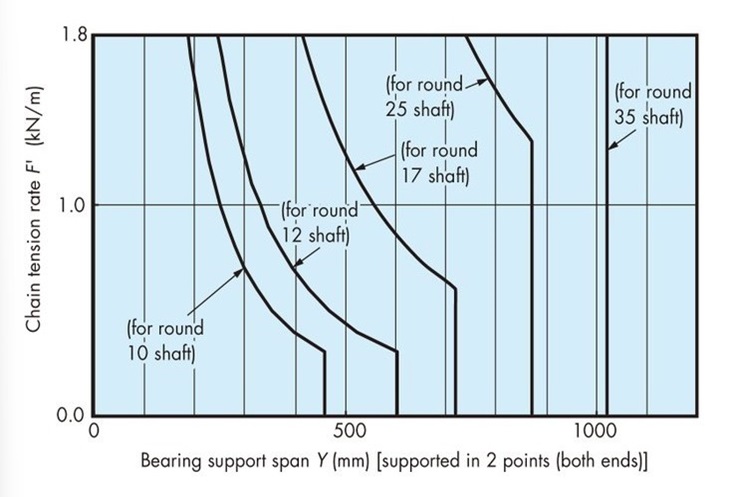

Table 11. WT0705-W /Shaft capacity graph

Shaft capacity graph

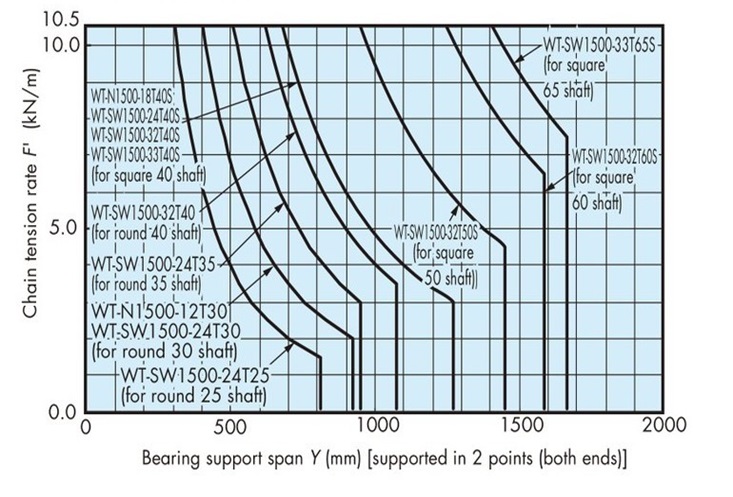

Table 12. BT5, WT1500, WT1510, 3000 Series /Shaft capacity graph

Shaft capacity graph

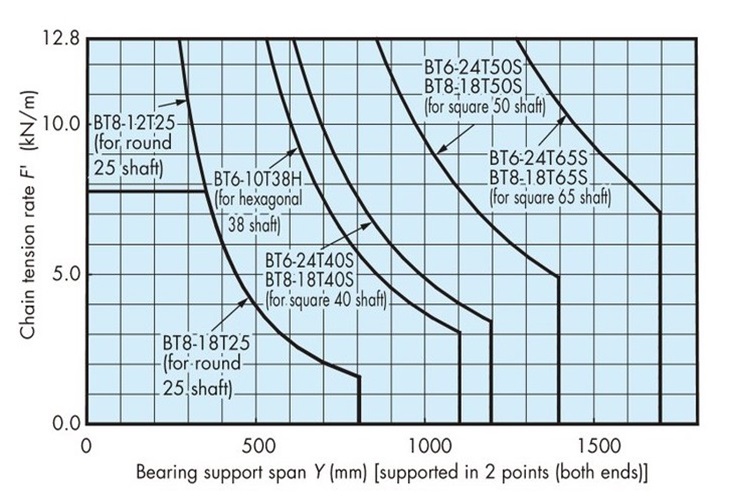

Table 13. BT6, BT8 /Shaft capacity graph

Shaft capacity graph

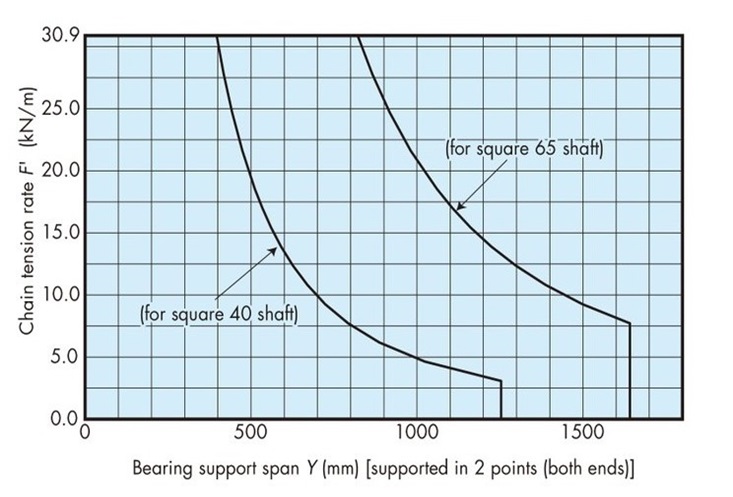

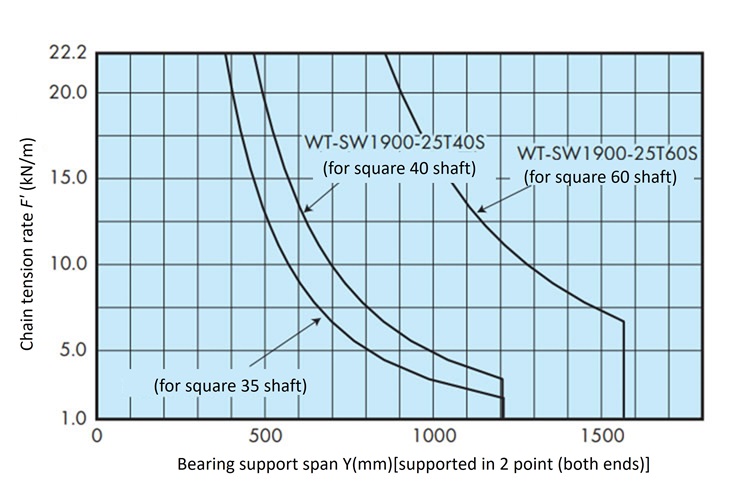

Table 14. WT1907-K /Shaft capacity graph

Shaft capacity graph

Table 15. WT2500 Series /Shaft capacity graph

Shaft capacity graph

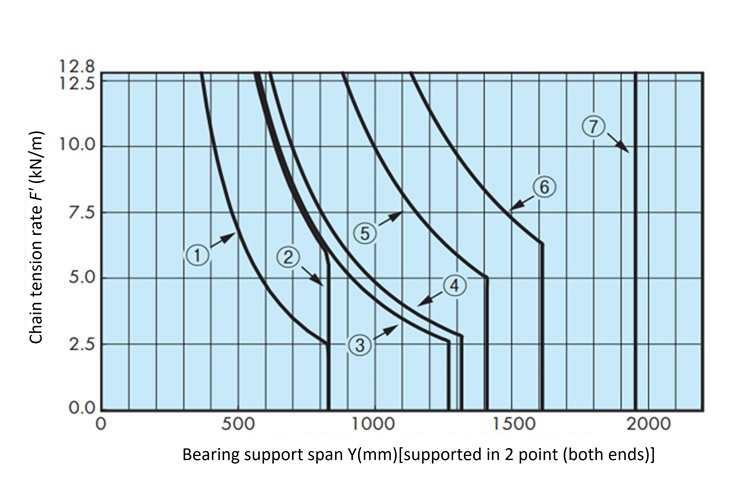

Table 16. WT2250, WT2510, WT2520, BTC8S /Shaft capacity graph

Shaft capacity graph
  • (1) WT-SW2250-16T30
    WT-SW2510-18T30
    (for round 30 shaft )
  • (2) WT-SW2250-16T40
    WT-SW2510-18T40
    WT-N2520-18T40
    (for round 40 shaft )
  • (3) WT-N2520-18T38S
    (for square 38.1 shaft )
  • (4) WT-N2520-18T40S
    WT-SW2250-16T40S
    WT-SW2510-18T40S
    BT8S-18T-40S
    (for square 40 shaft )
  • (5) WT-N2520-18T51S
    (for square 50.8 shaft )
  • (6) WT-N2520-18T60S
    BT8S-18T-60S
    (for square 60 shaft )
  • (7) WT-N2520-22T90S
    (for square 90 shaft )

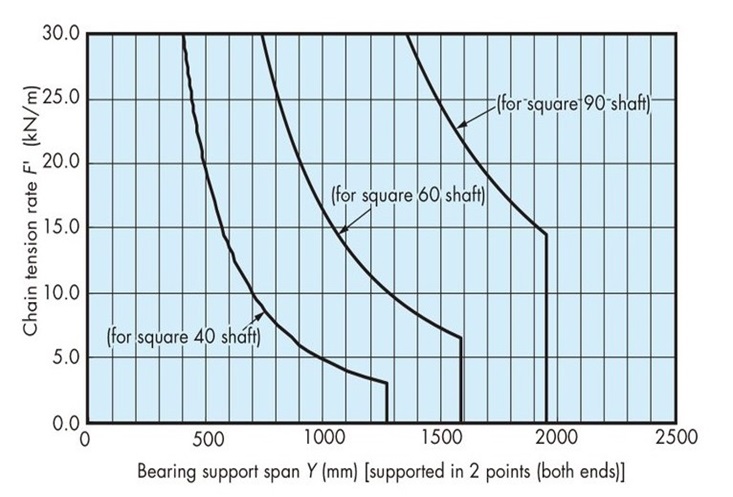

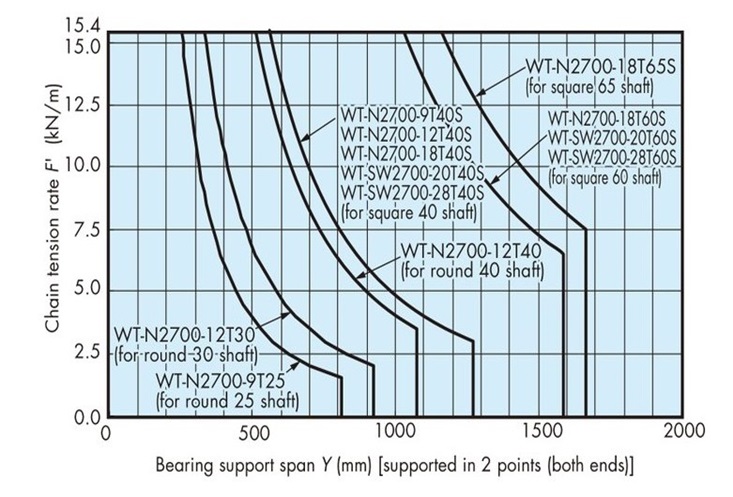

Table 17. WT2700 Series /Shaft capacity graph

Shaft capacity graph

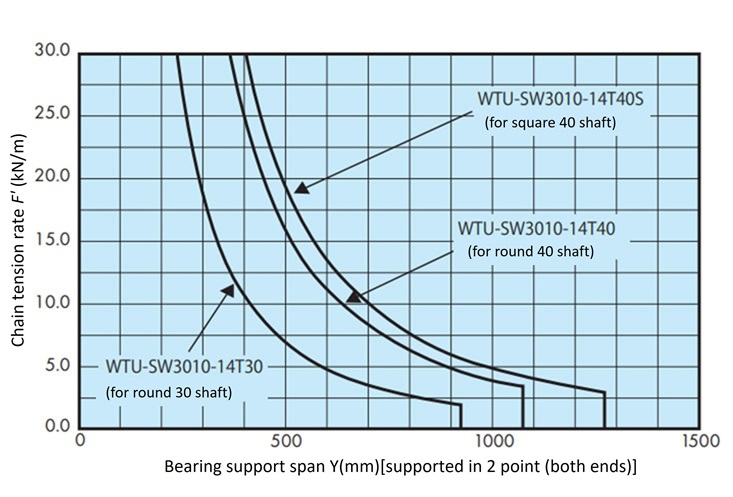

Table 18. WTU3015T-K /Shaft capacity graph

Shaft capacity graph

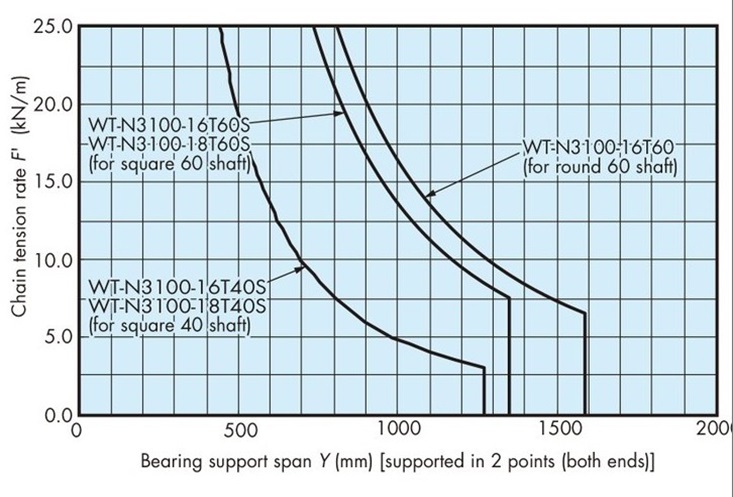

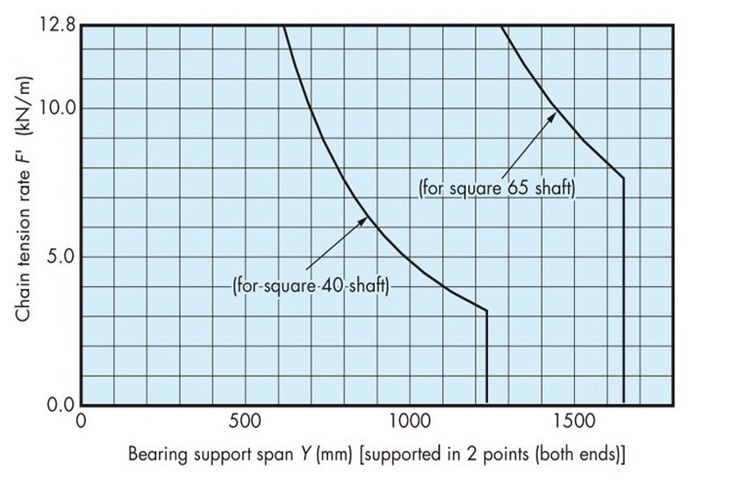

Table 19. WT3100 Series /Shaft capacity graph

Shaft capacity graph

Table 20. WT3816-K /Shaft capacity graph

Shaft capacity graph

Table 21. WT3827-K /Shaft capacity graph

Shaft capacity graph

Table 22. WT3835-K /Shaft capacity graph

Shaft capacity graph

Table 23. WT5707-K /Shaft capacity graph

Shaft capacity graph

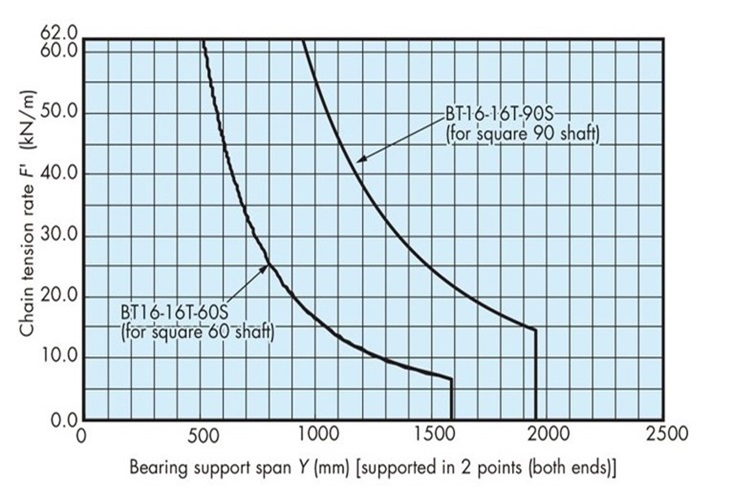

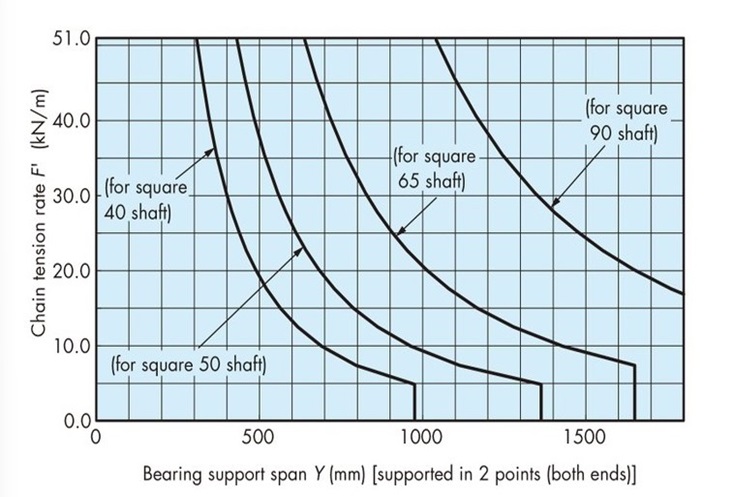

Table 24. BTH16 /Shaft capacity graph

Shaft capacity graph
