Servo motor assembly procedure for servo motor reducer TERVO

When the motor shaft is round (Input shaft clamp type )

• 1. Install the reducer so that the motor mounting surface is at the top.
• 2. Wipe off any rust, dust, anti-rust oil, etc. from the motor shaft.

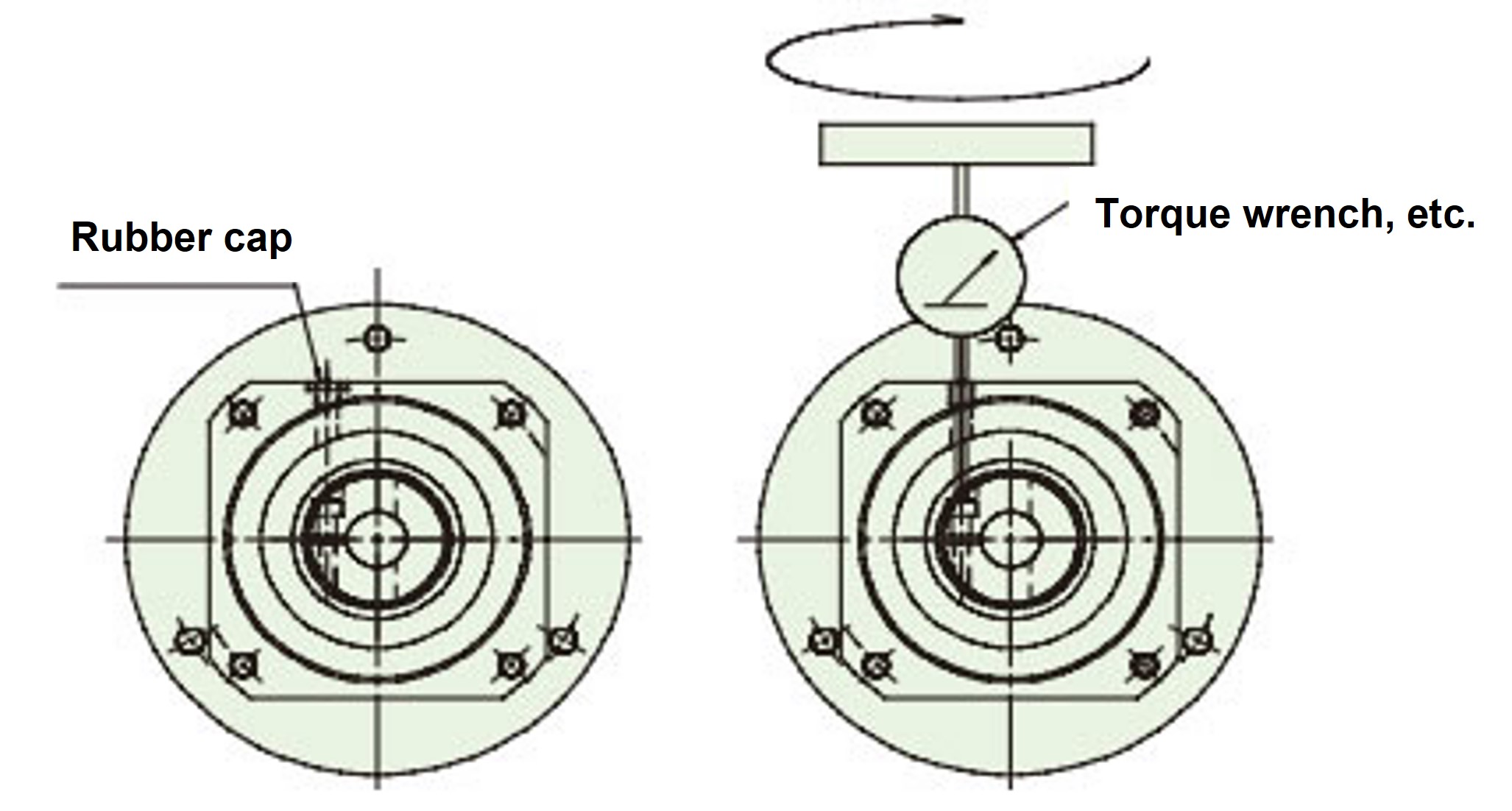

• 3. Remove the rubber cap from the flange and turn the input shaft to align the bolt head with the hole position.
  Make sure that the set bolts are loose by using an L-spanner or similar tool.
• 4. Insert the motor shaft smoothly into the input shaft. Be careful not to insert the motor shaft at an angle.
• 5. After the in-let part is fully inserted, fully secure it to the flange with the appropriate bolts and tightening torque.
• 6. Using a torque wrench, tighten the input shaft set bolt to the specified tightening torque.
• 7. Attach the rubber cap. This completes the motor set up procedure.

Tightening of clamp specification set bolt

Installation of keyed motors on input shaft clamp type

The keyed motor shaft can be used in the clamping type in the same way as the round shaft by removing the key.

Set the keyway (D-cut) of the motor 180 degrees opposite to the position of the slit in the clamp section.

Install the reducer using the same procedure as for the round shaft.
