Technical Data Linear actuator Power Cylinder Selection
Selection ：F Series
Conditions required for selection
Machine to be used and application
Thrust or load N{kgf}
Stroke mm
Speed mm/s
Frequency of use cycles /min
Supply voltage 、Frequency
Selection procedure
- (1) Select a suitable model number based on the thrust or load N {㎏f}, stroke mm, speed mm/s.
- (2) Use the cylinder within an allowable operating frequency 2 times/min., allowable load time ratio: 25%ED (5 minute basis), as for the frequency of operation.
The load time ratio is a ratio of the operating time per 5 minutes on a 5-minute basis.
Allowable frequency of operation for the Power Cylinder F series is within a range which satisfies the number of starting times and load time ratio in the above table. The load time ratio is expressed by the following equation.
Percentage duty cycle (%ED) = Operation time of one cycle Operation time of one cycle + stop time ×100%
Guide for life
Duration of life is 15,000 reciprocations, as a guide.
※Select a power cylinder of a sufficient thrust, allowing for a safety rate so that the loads used (static and dynamic) do not exceed the rated thrust.
※Be sure to read these cautions (click here) as well.

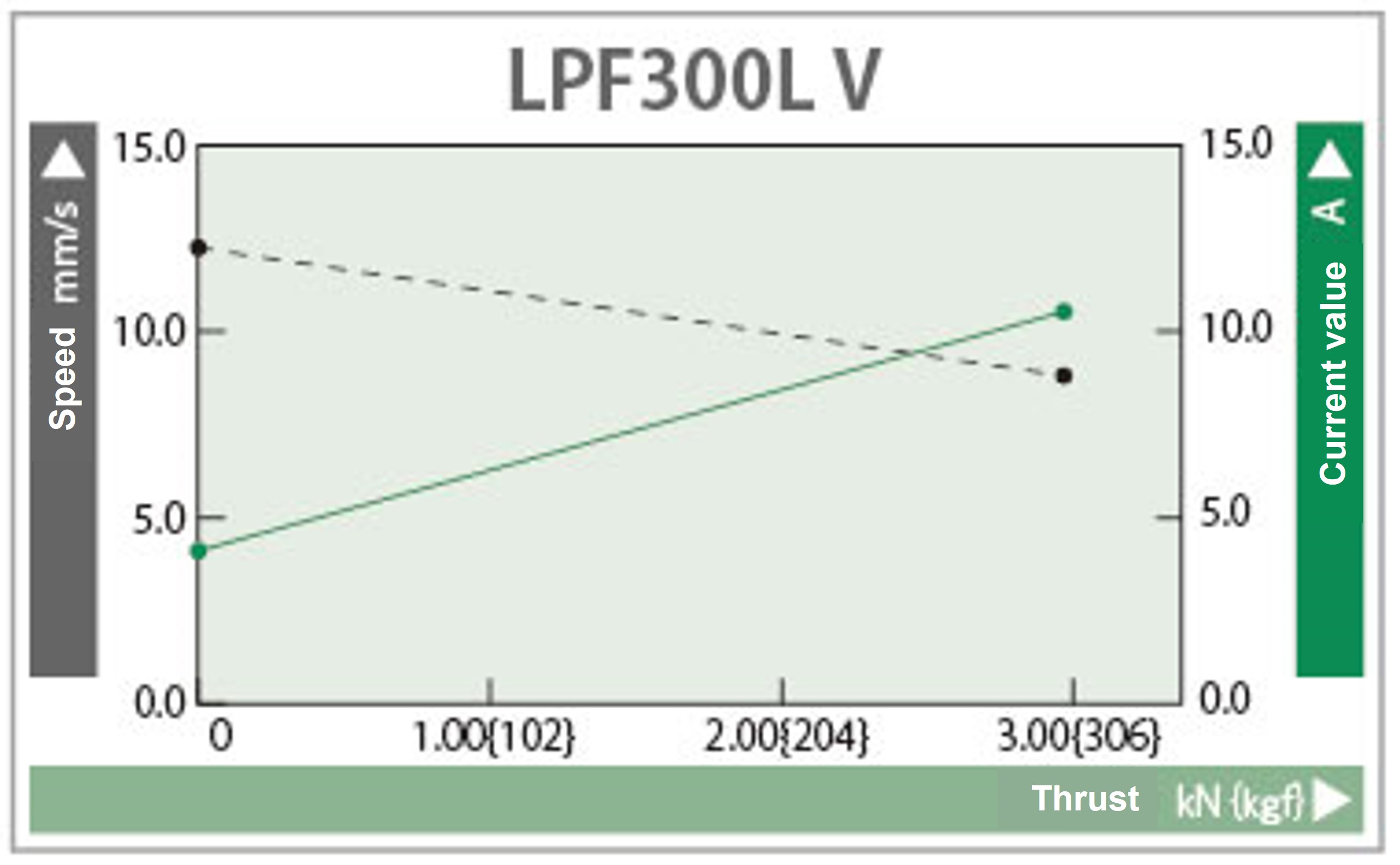

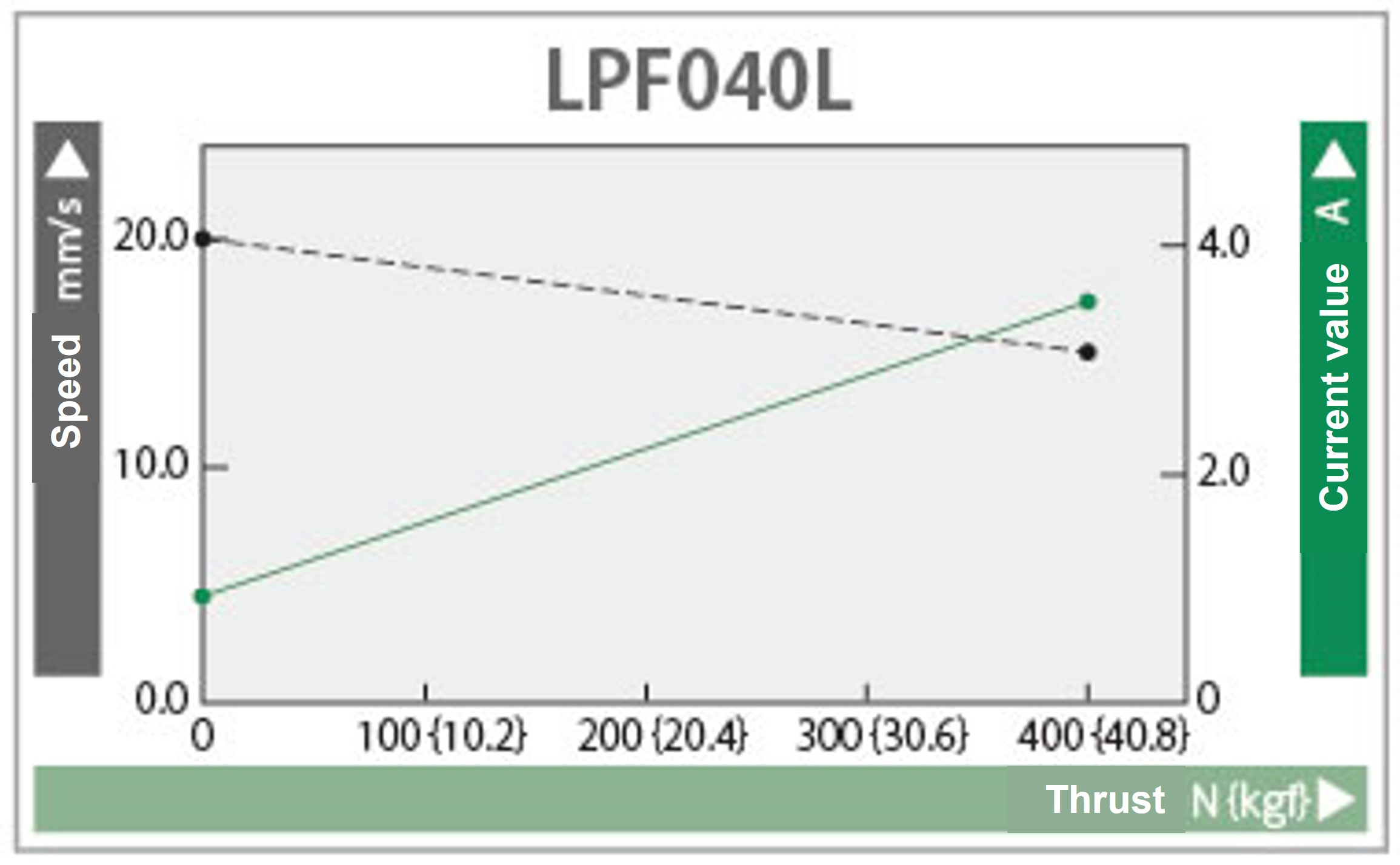

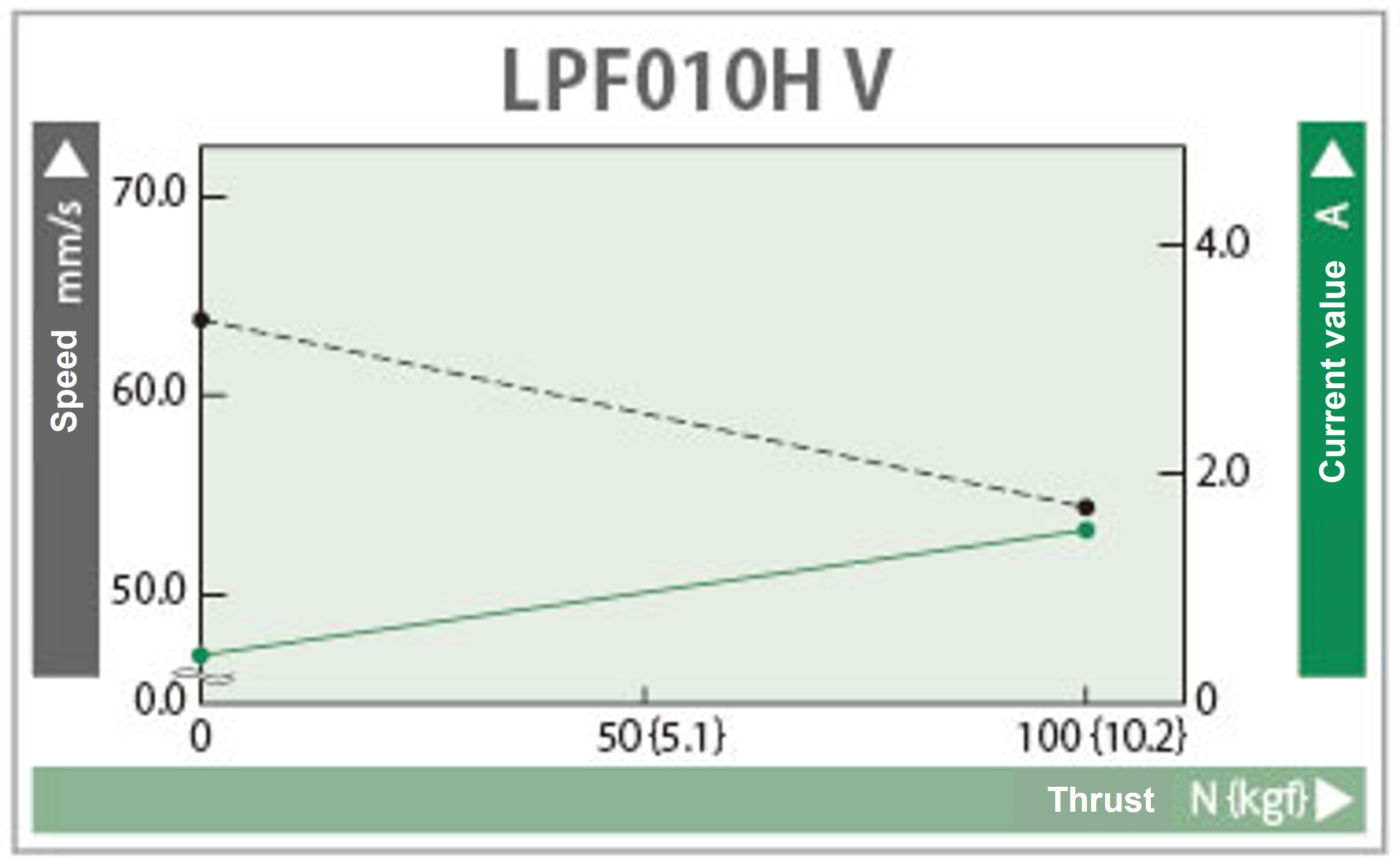

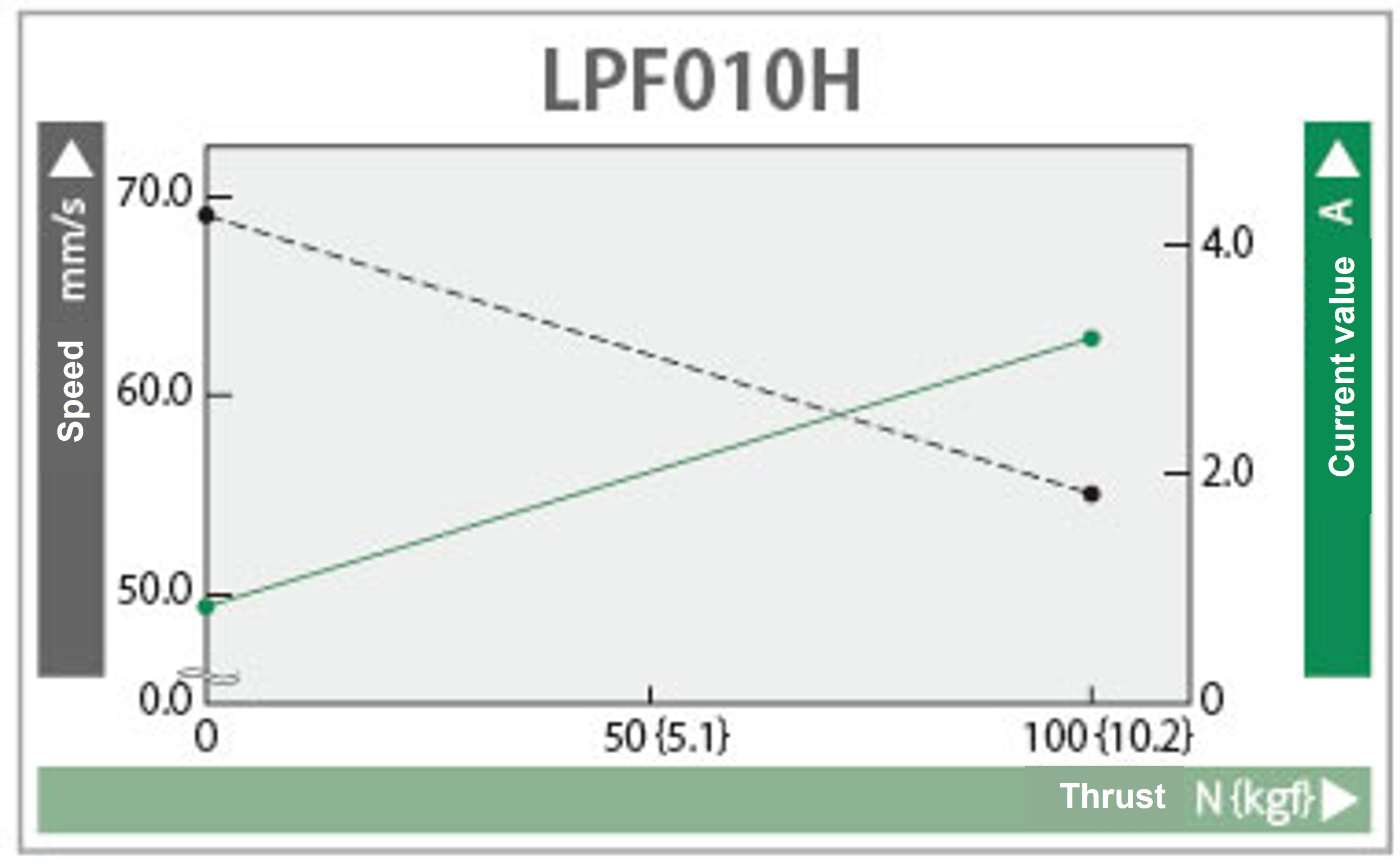

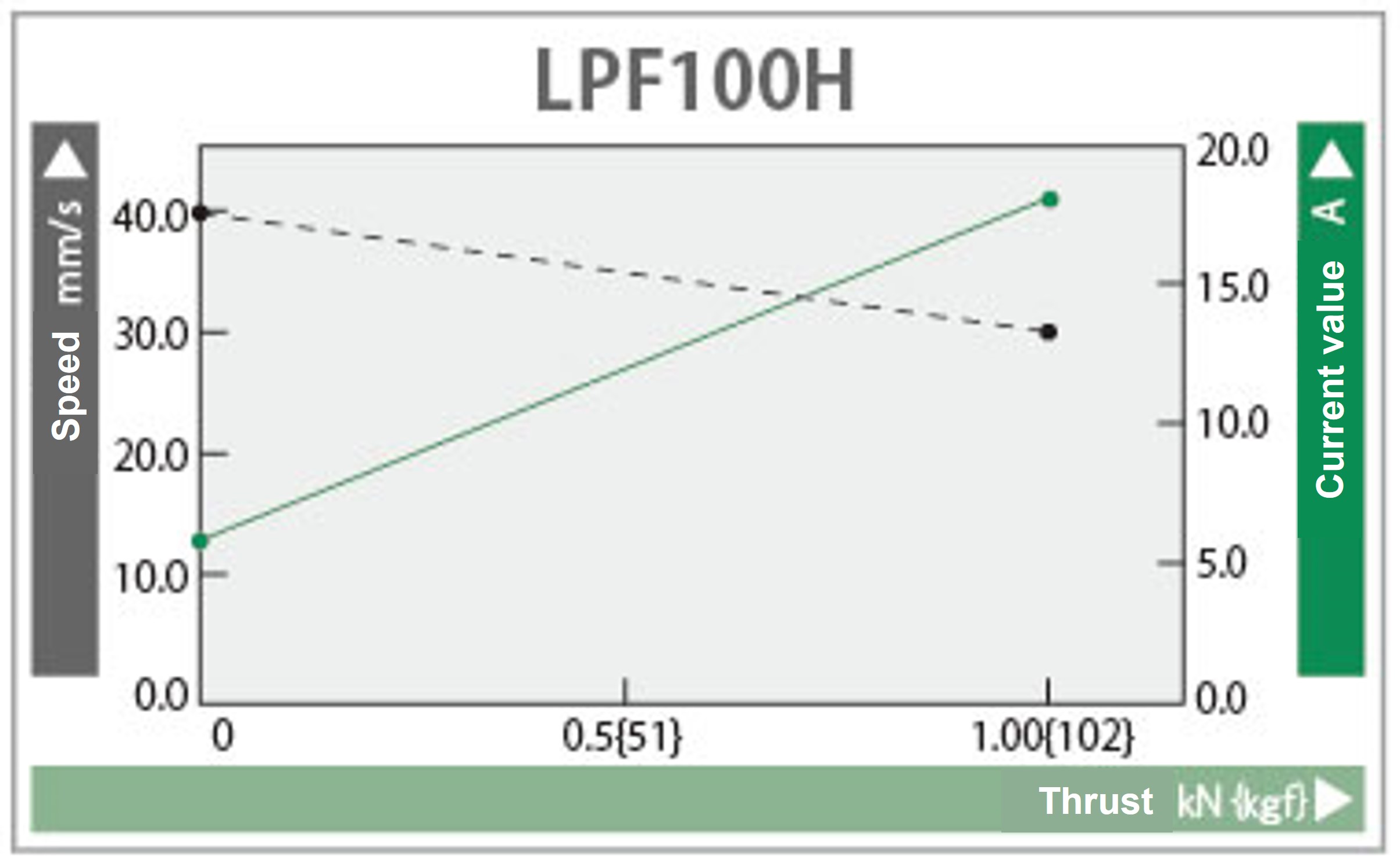

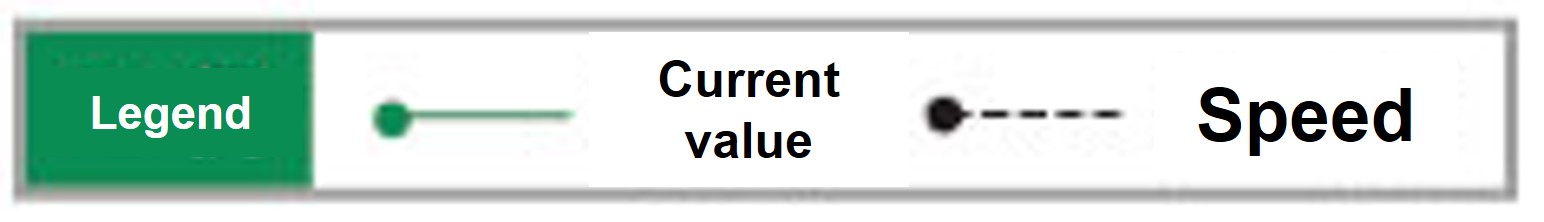

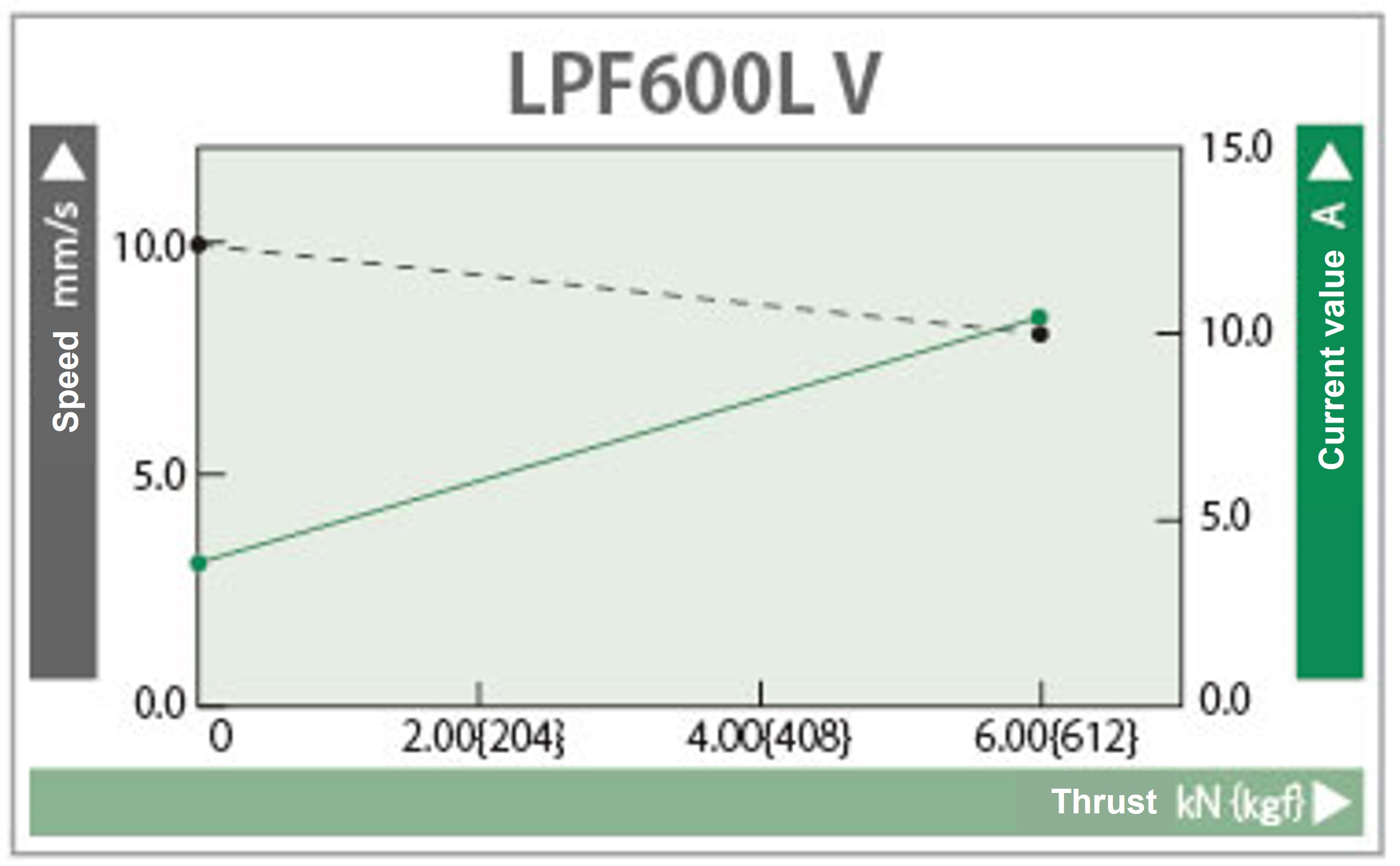

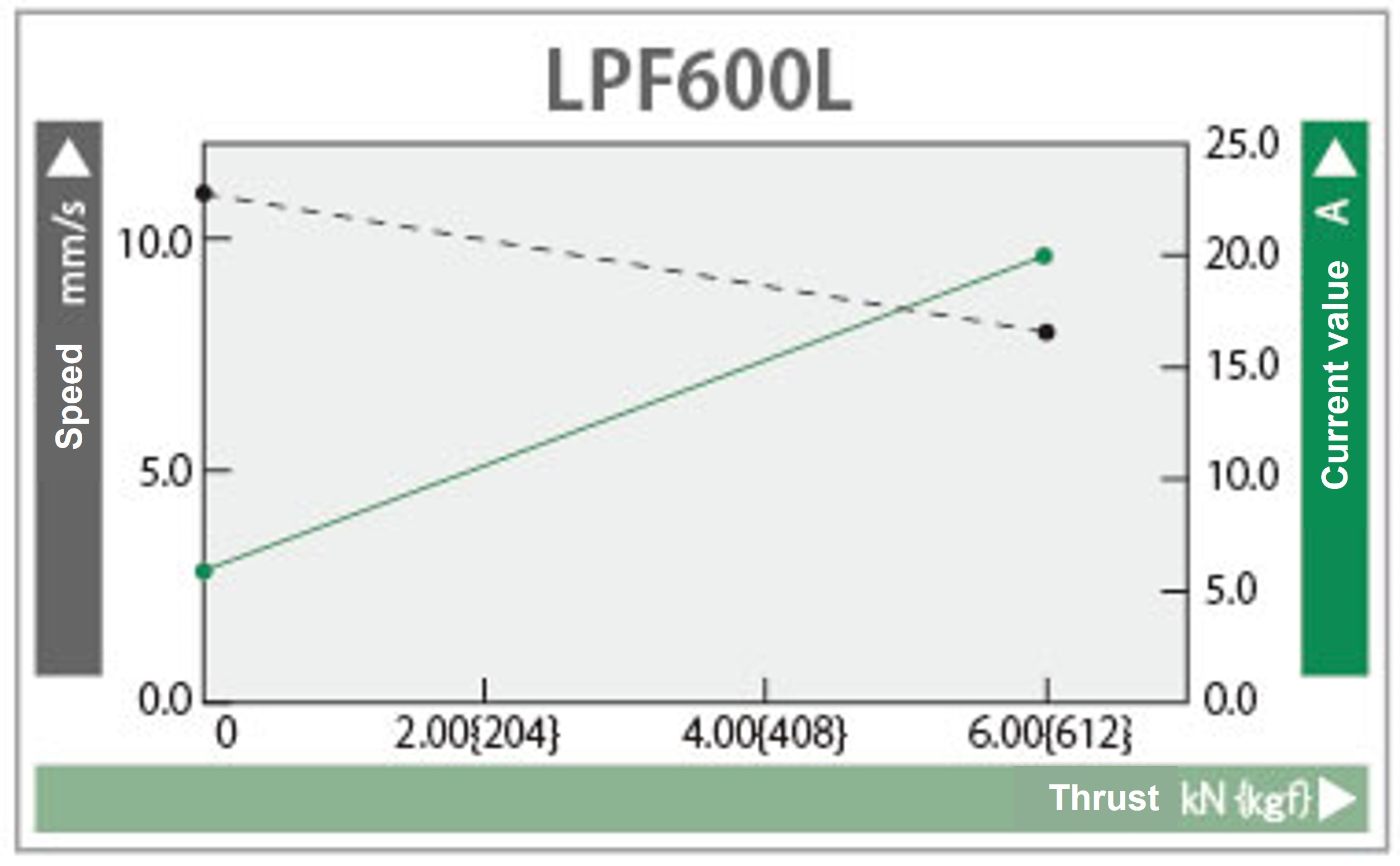

Characteristics graph

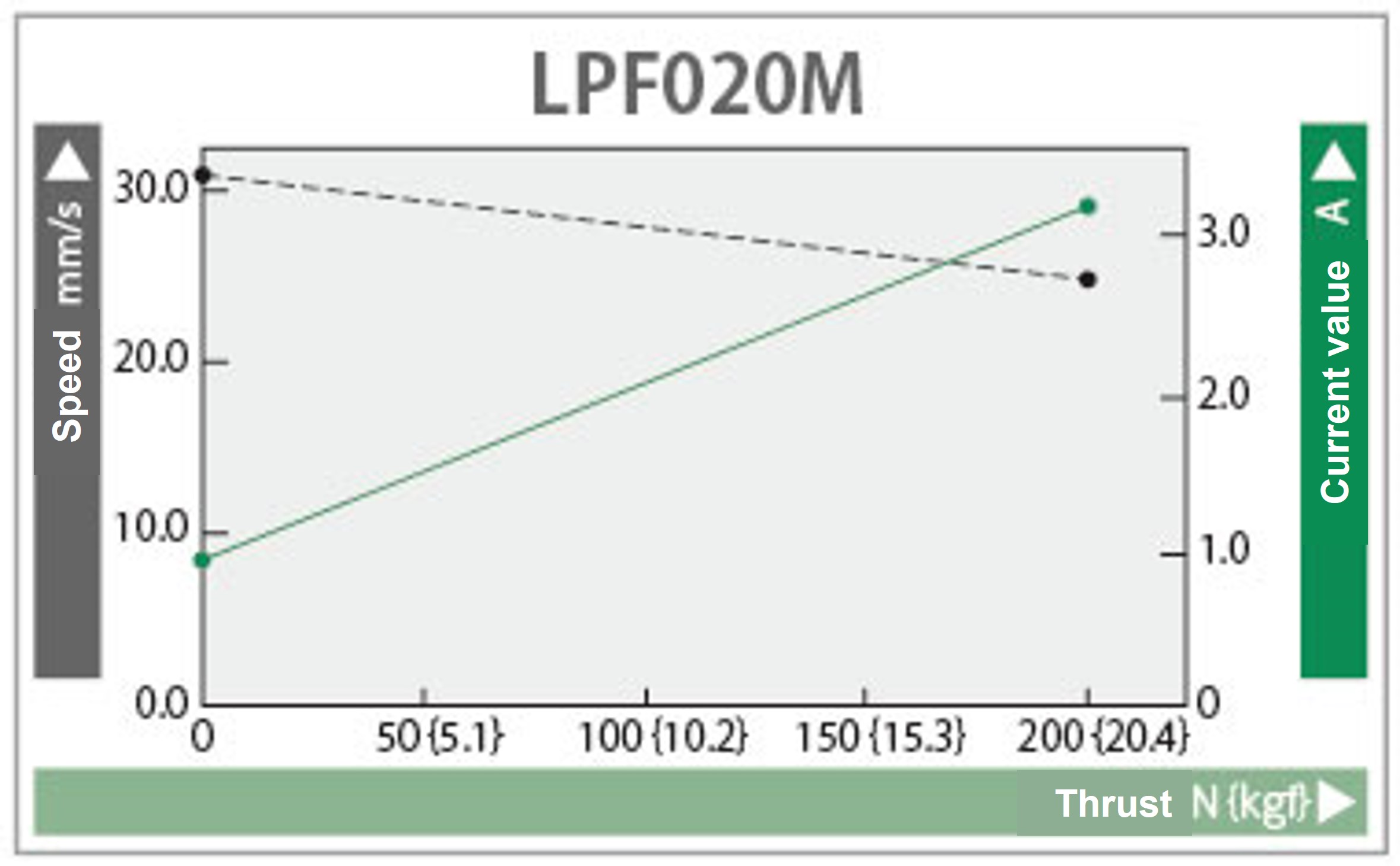

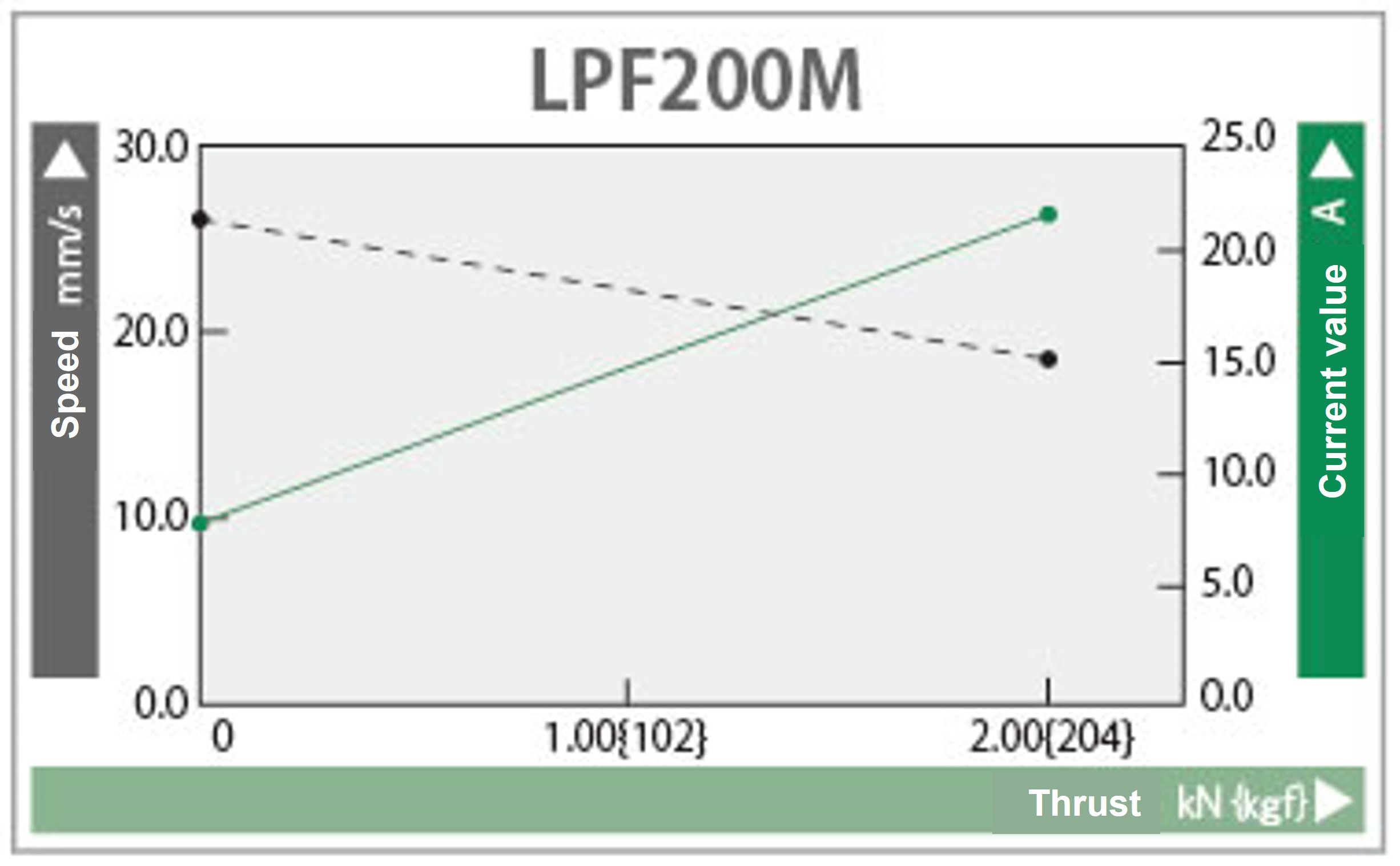

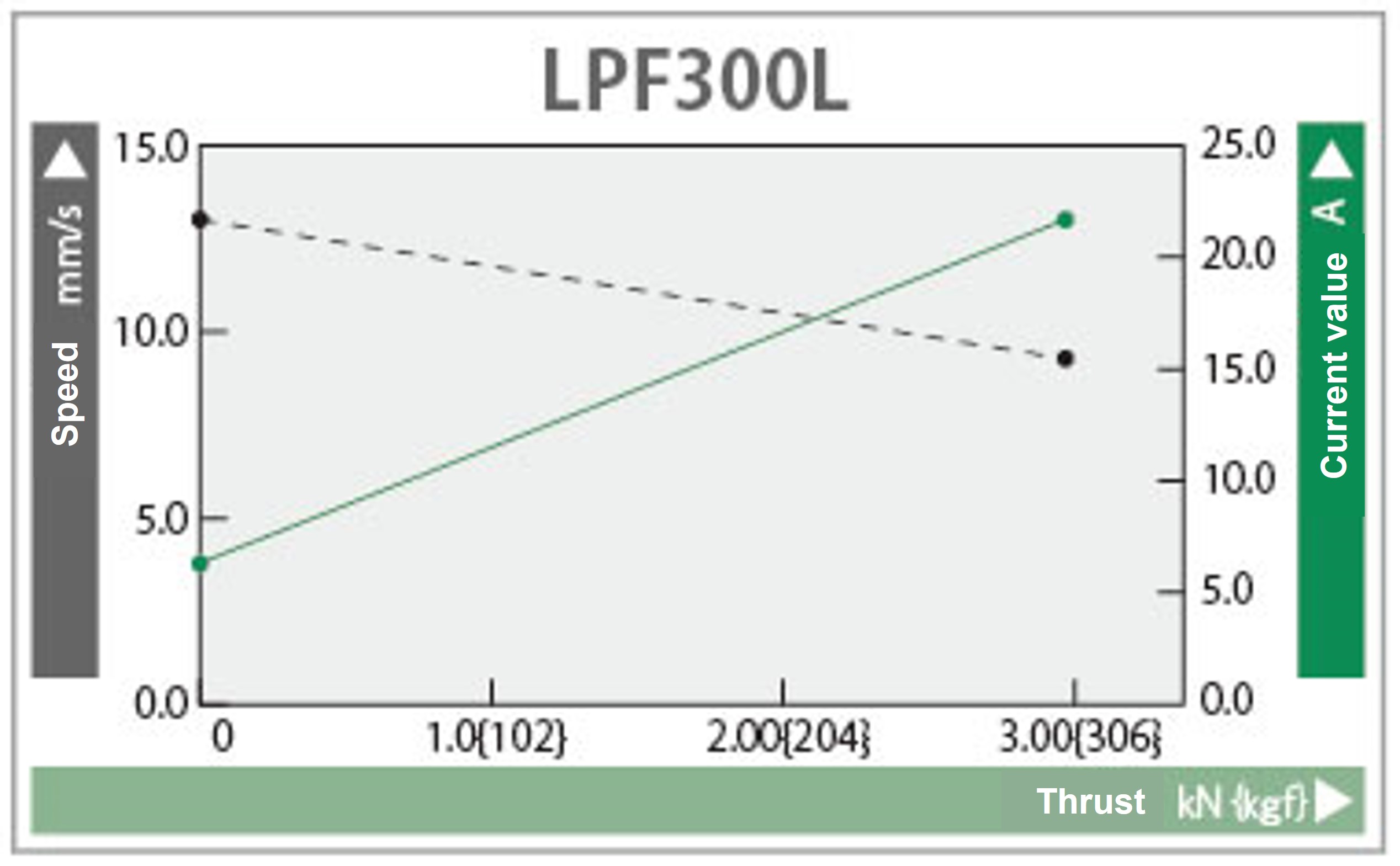

12V DC power source

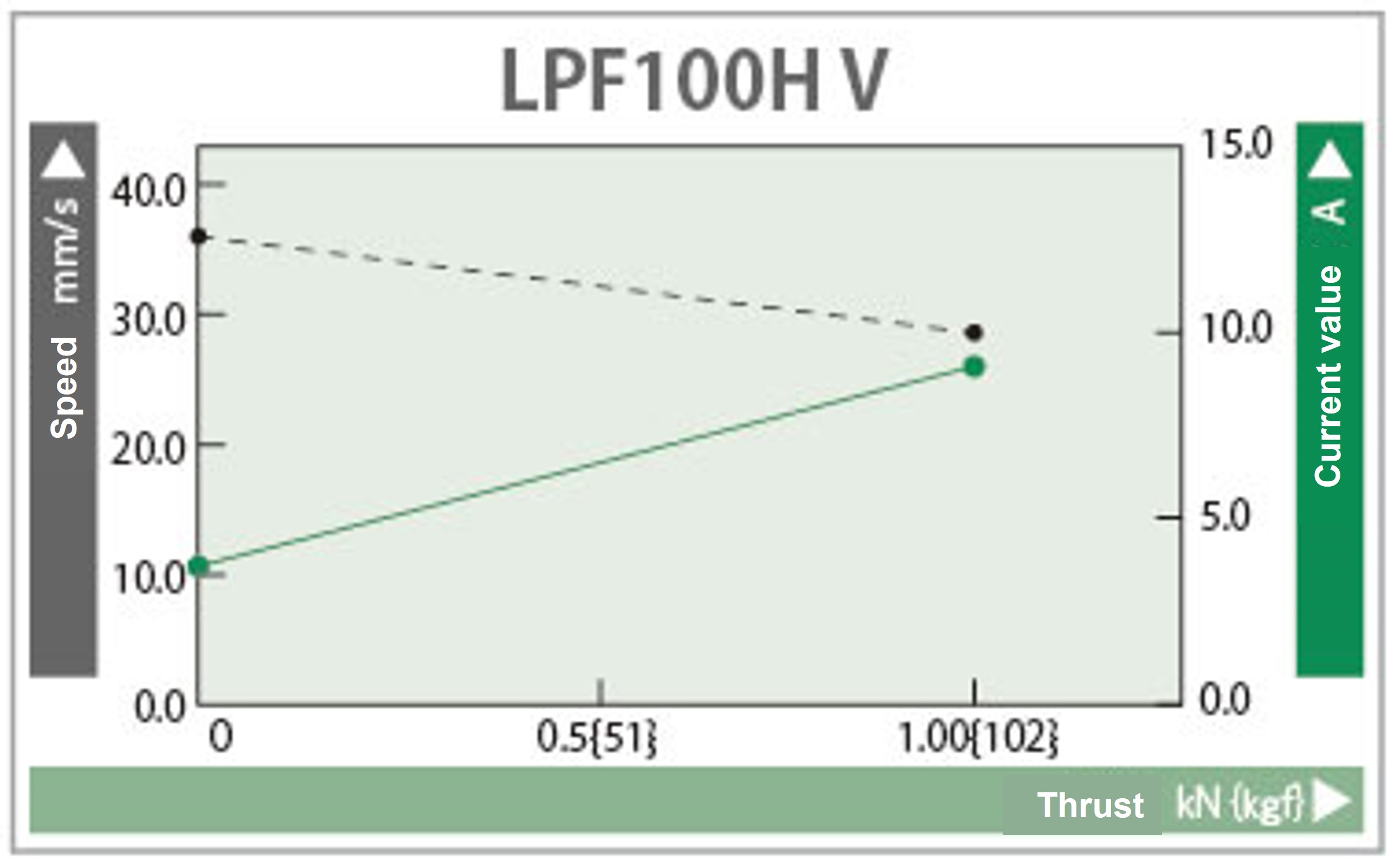

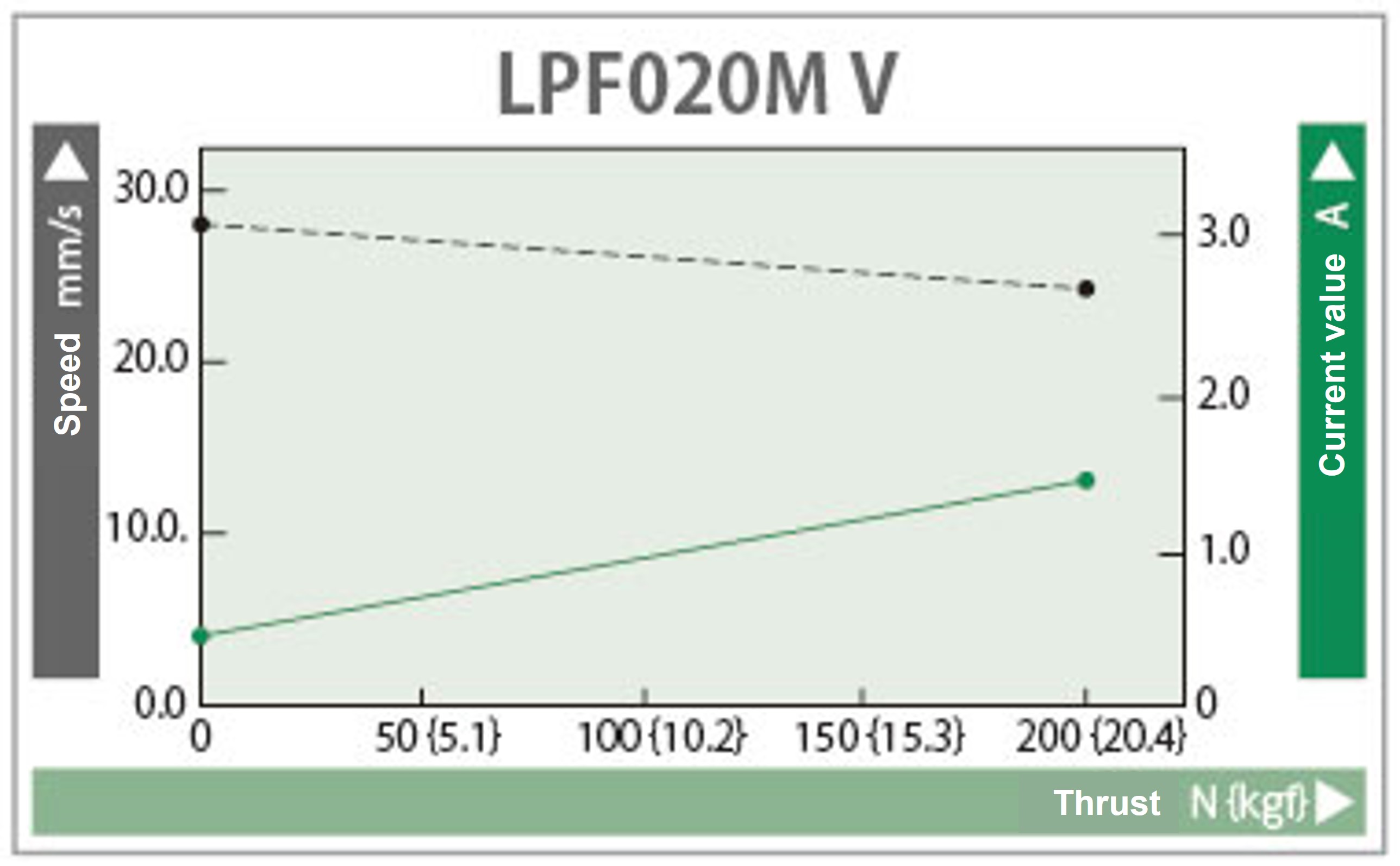

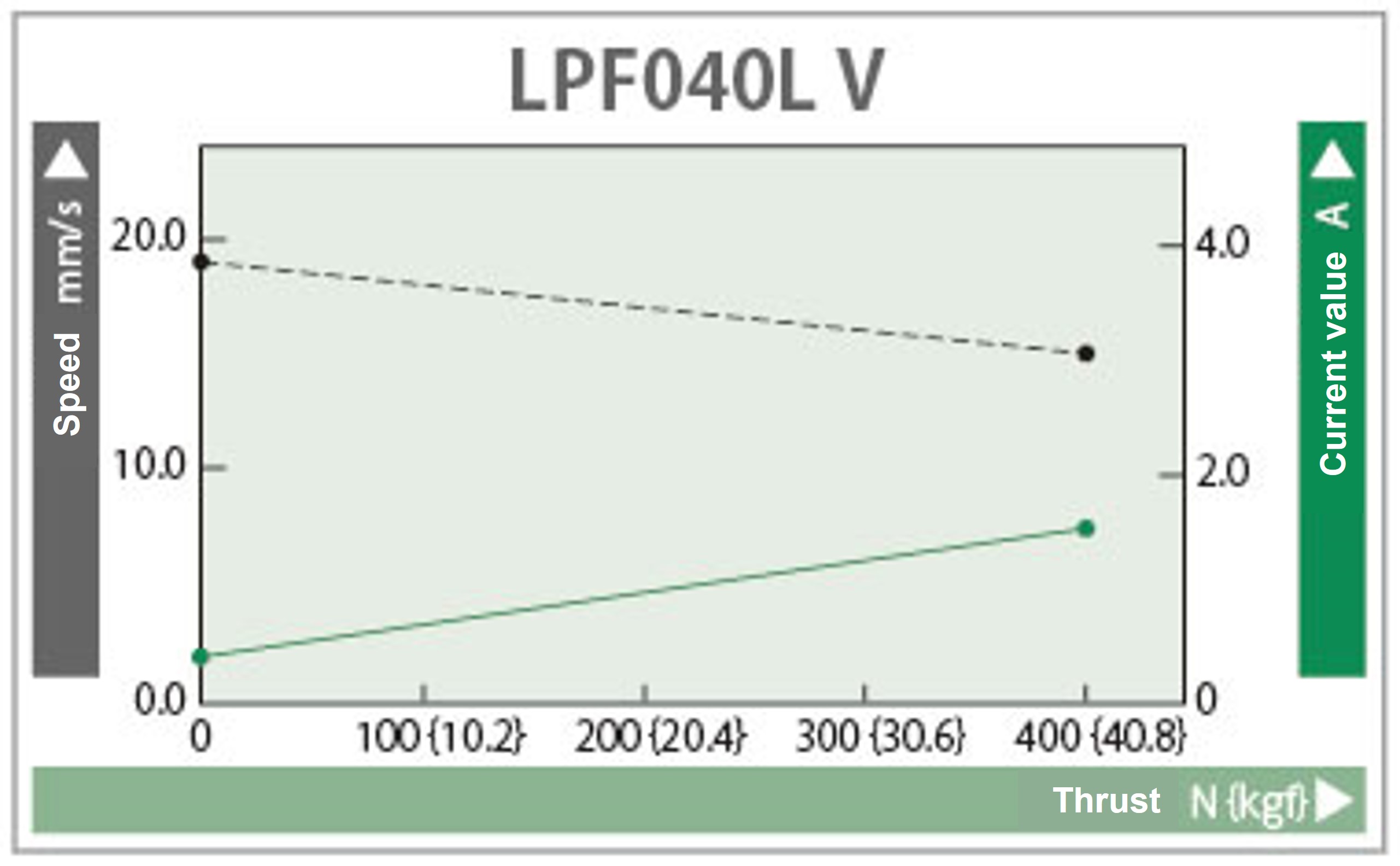

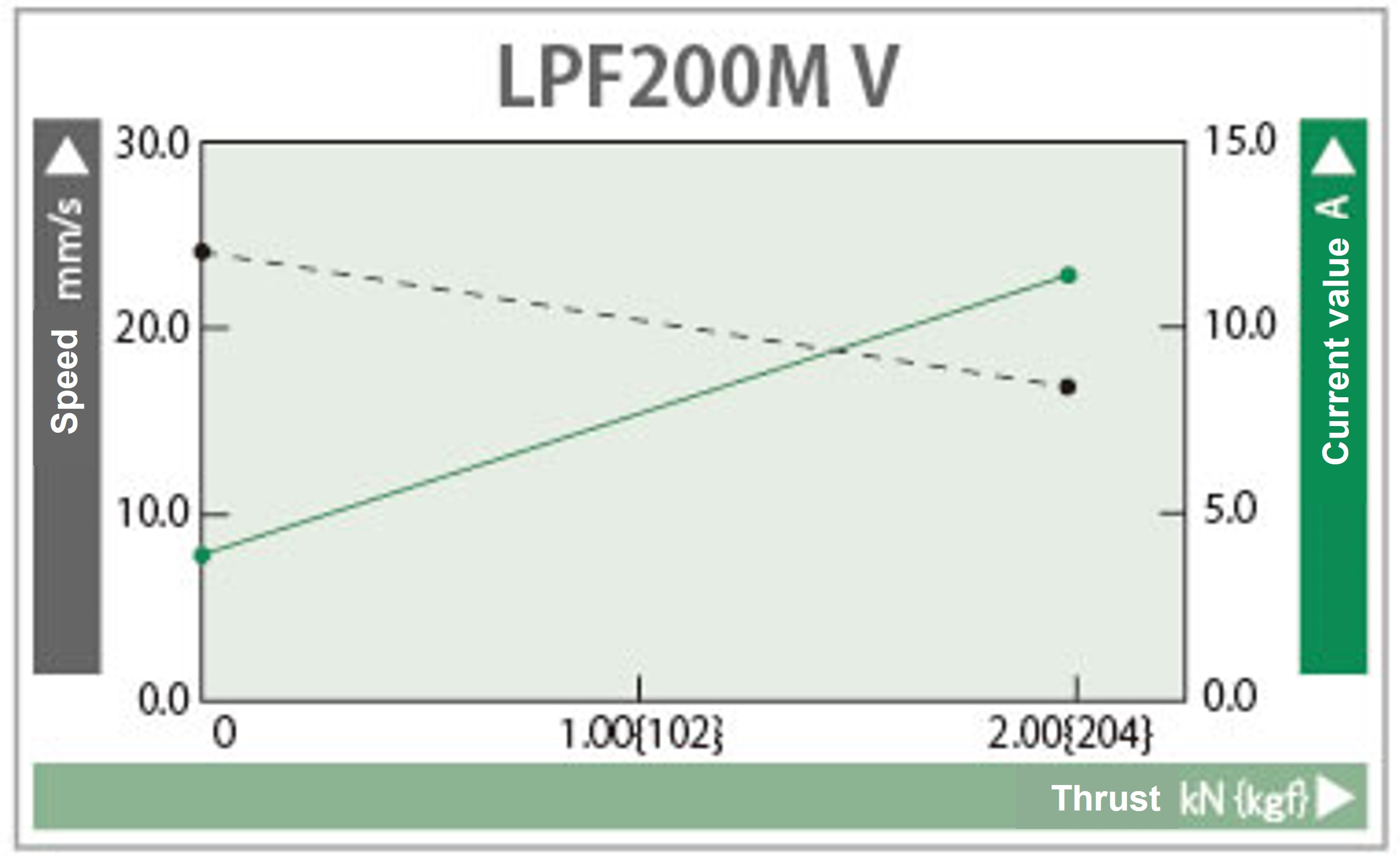

24V DC power source
Note) The graphs show standard values (12V/24V DC power source, ambient temperature 20°C). The speed and the current value vary depending on conditions of power source and ambient temperatures, etc.
