Technical Data Linear actuator Power Cylinder Selection
Selection ：ECO Series ・CDS Type
Conditions required for selection
Machine to be used and application
Thrust or load N{kgf}
Stroke mm
Speed mm/s
Frequency of use cycles /min
Supply voltage , Frequency
Type of load of machine used
Operating environment
Hours of operation per day, and number of operating days per year
Selection procedure
- (1) Select the suitable model number from the standard model list (click here) based on thrust, speed and stroke.
- (2) Check that the number of starting times of the selected cylinder is within the allowable range with reference to the table below. (Table 1)
- (3) Check that the use conditions are satisfied with reference to the thrust – speed graph. (Fig. 1)
- (4) In the case of use for transportation, check that the mass of the conveyed material is within the allowable range. (Table 2)
- (5) Select options as required.
※Be sure to read these cautions (click here) as well.
Table 1 Allowable number of starting times
| Model No. | Stroke mm |
Thrust N | |||
|---|---|---|---|---|---|
| 100 | 250 | 500 | 1000 | ||
| LPE025H | 100 | 15 | 12 | - | - |
| 200 | 15 | 12 | - | - | |
| 300 | 10 | 10 | - | - | |
| 400 | 9 | 5 | - | - | |
| 500 | 8 | 4 | - | - | |
| 600 | 6 | 3 | - | - | |
| LPE050L | 100 | 15 | 10 | 5 | - |
| 200 | 8 | 8 | 5 | - | |
| 300 | 5 | 5 | 5 | - | |
| 400 | 5 | 5 | 3 | - | |
| 500 | 5 | 4 | 2 | - | |
| 600 | 4 | 4 | 2 | - | |
| LPE050H | 100 | 15 | 12 | 10 | - |
| 200 | 12 | 10 | 8 | - | |
| 300 | 10 | 10 | 6 | - | |
| 400 | 9 | 8 | 5 | - | |
| 500 | 8 | 7 | 4 | - | |
| 600 | 7 | 6 | 3 | - | |
| LPE100L | 100 | 12 | 10 | 8 | 5 |
| 200 | 8 | 8 | 8 | 5 | |
| 300 | 5 | 5 | 5 | 4 | |
| 400 | 5 | 5 | 5 | 3 | |
| 500 | 5 | 5 | 4 | 2 | |
| 600 | 4 | 4 | 4 | 2 | |
Table 2 Conveyed material mass in consideration of inertia
| Model No. | Horizontal | Vertical |
|---|---|---|
| LPE025HT | 50 | 25 |
| LPE050LT | 100 | 50 |
| LPE050HT | 100 | 50 |
| LPE100LT | 200 | 100 |

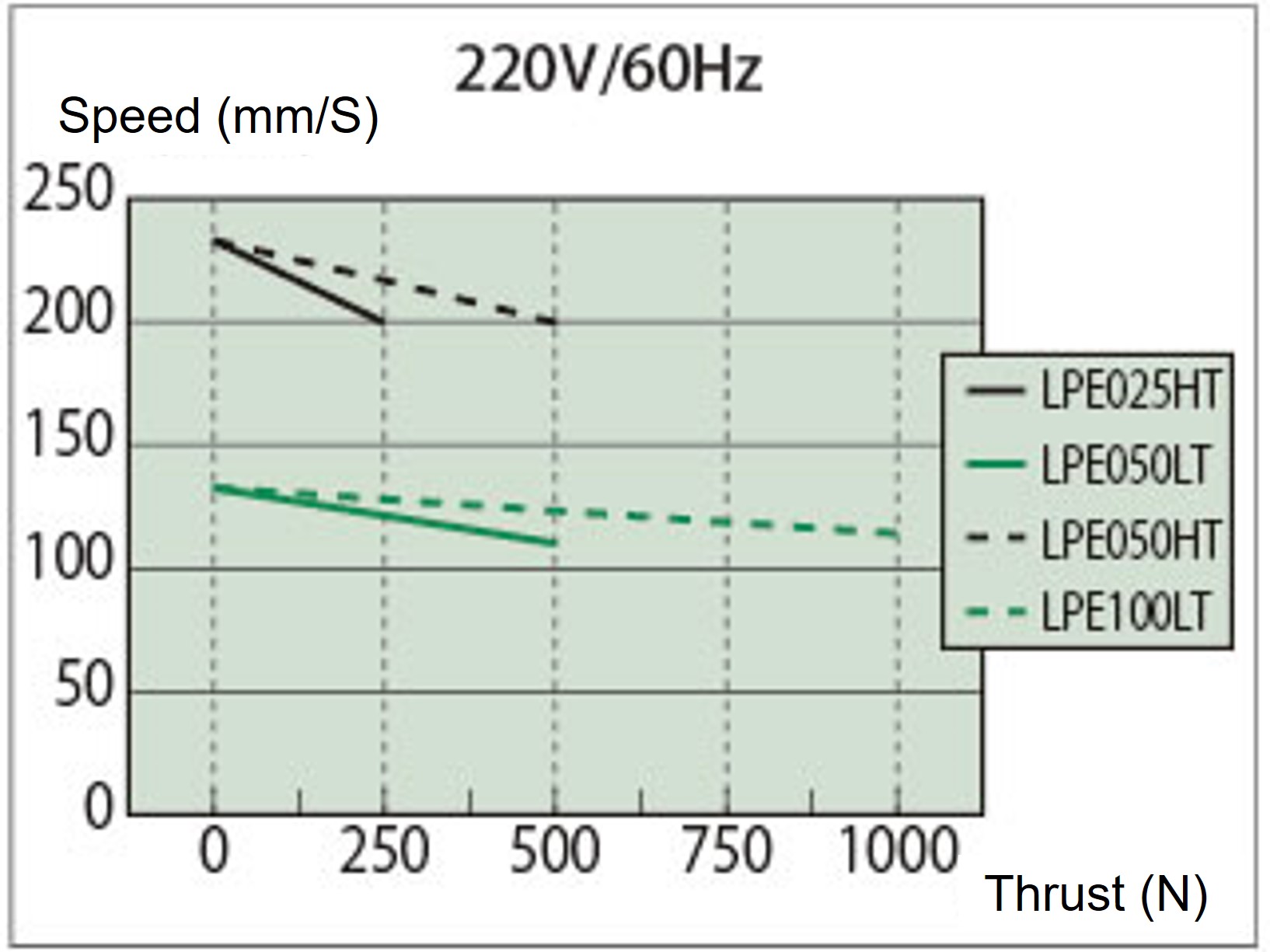

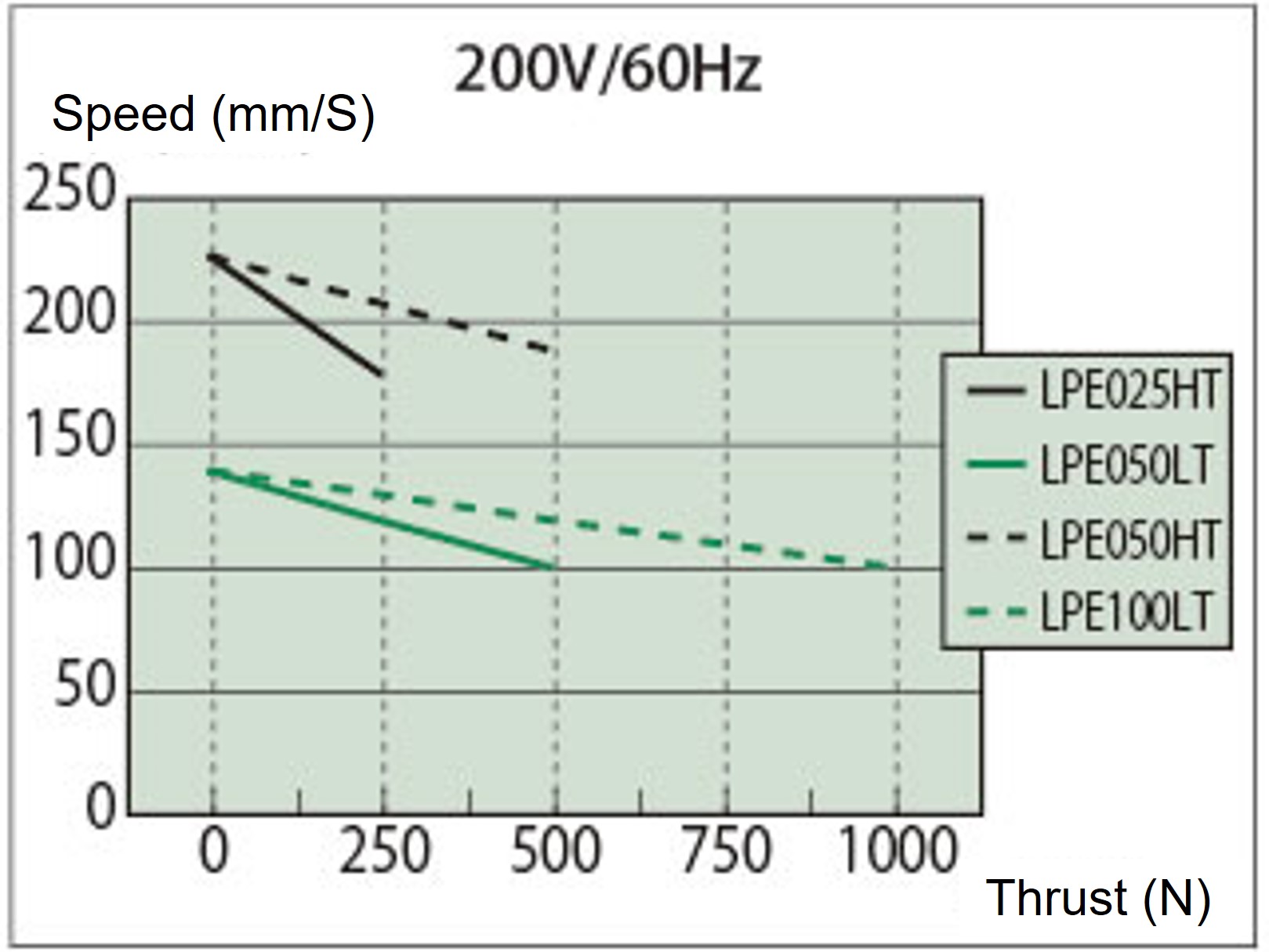

Fig. 1 Thrust – speed graph
- ※The data of the above table 1 and figure 1 are numerical values at an ambient temperature of 20℃. The numerical values may vary depending on the ambient temperature and other conditions, so use them as a guide.
- ※Select a power cylinder of a sufficient thrust, allowing for a safety rate so that the loads used (static and dynamic) do not exceed the rated thrust.
