Technical Data Large size conveyor chain Selection
12. Roller Allowable Load under Lubricated Conditions

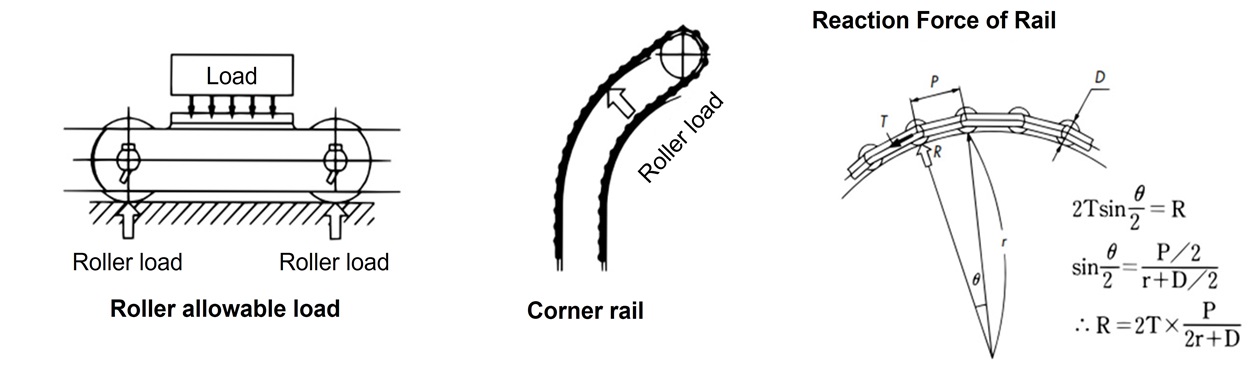

Allowable load per roller under lubricated conditions in loading type conveyors is as per Table 11. When using A attachments, the smaller allowable load should be used. You will need a guide rail with a tensile strength of at least 400N/mm2{41kgf/mm2}. Check the roller load when corner rails are used as well. Service life will drop appreciably when the chain is used without lubrication.
Table 11.Roller Allowable Load under Lubricated Conditions
| Chain size |
DT | DTA | AT | ATA | GS | GSA | SS | SSA | Bearing Bush |
|---|---|---|---|---|---|---|---|---|---|
| R, F-roller | R-roller | ||||||||
| RF03 | 0.54 {55.0} | 0.88 {90.0} | 0.88 {90.0} | - | 0.54 {55.0} | 0.70 {70.0} | 0.27 {30.0} | 0.35 {35.0} | 0.54 {55.0} |
| RF05 | 1.03 {105} | 1.72 {175} | 1.72 {175} | - | 1.03 {105} | 1.34 {135} | 0.52 {55.0} | 0.67 {70.0} | 1.03 {105} |
| RF08 | 1.27 {130} | 2.11 {215} | 2.11 {215} | 2.53 {260} | 1.27 {130} | 1.65 {170} | 0.64 {65.0} | 0.83 {85.0} | - |
| RF10 | 1.77 {180} | 2.94 {300} | 2.94 {300} | 3.53 {360} | 1.77 {180} | 2.30 {235} | 0.89 {90.0} | 1.15 {115} | 1.77 {180} |
| RF12 | 2.50 {255} | 4.17 {425} | 4.17 {425} | 5.00 {510} | 2.50 {255} | 3.25 {330} | 1.25 {125} | 1.63 {165} | 2.50 {255} |
| RF17 | 4.02 {410} | 6.67 {680} | 6.67 {680} | 8.04 {820} | 4.02 {410} | 5.23 {535} | 2.01 {205} | 2.61 {265} | 4.02 {410} |
| RF26 | 5.30 {540} | 8.83 {900} | 8.83 {900} | 10.6 {1080} | 5.30 {540} | 6.89 {705} | 2.65 {270} | 3.45 {350} | 5.30 {540} |
| RF36 | 7.45 {760} | 12.4 {1260} | 12.4 {1260} | 14.9 {1520} | - | - | - | - | 7.54 {760} |
| RF52 | 9.81 {1000} | - | 16.6 {1690} | - | - | - | - | - | - |
| RF60 | 10.8 {1100} | - | 18.1 {1850} | - | - | - | - | - | - |
| RF90 | 15.2 {1550} | - | 25.5 {2600} | - | - | - | - | - | - |
| RF120 | 19.6 {2000} | - | 33.3 {3400} | - | - | - | - | - | - |
| RF430 | 0.93 {95.0} | 1.57 {160} | 1.57 {160} | - | 0.93 {95.0} | - | 0.47 {45.0} | - | - |
| RF204 | - | - | - | - | - | - | - | - | - |
| RF450 | 1.27 {130} | 2.11 {215} | 2.11 {215} | - | 1.27 {130} | - | 0.64 {65.0} | - | - |
| RF650 | 1.42 {145} | 2.35 {240} | 2.35 {240} | - | 1.42 {145} | - | 0.71 {72.0} | - | - |
| RF214 | 2.11 {215} | 3.58 {356} | 3.58 {356} | - | 2.11 {215} | - | 1.06 {110} | - | - |
| RF205 | - | - | - | - | - | - | - | - | - |
| RF6025 | 2.50 {255} | 4.17 {425} | 4.17 {425} | - | 2.50 {255} | - | 1.25 {125} | - | - |
| RF212 | 2.89 {295} | 4.85 {495} | 4.85 {495} | - | 2.89 {295} | - | 1.45 {145} | - | - |
| Chain size |
Bearing roller conveyor chain Standard package ・Anti-Dust Series ・ Standard Lube Free Series ・Completely Lube Free Series |
DT | AT | GS | GSA | SS | SSA | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Standard package Anti-Dust Series Standard Lube Free Series Completely Lube Free Series |
Water Resistant Lube Free Series | |||||||||
| R-roller | F-roller | R-roller | F-roller | S, M, N-roller | ||||||
| RF03 | 1.96 {200} | 1.27 {130} | 1.37 {140} | 0.89 {90} | 0.54 {55.0} | 0.54 {55.0} | 0.32 {35.0} | 0.32 {35.0} | 0.16 {17.0} | 0.16 {17.0} |
| RF05 | 3.04 {310} | 1.96 {200} | 2.13 {220} | 1.37 {140} | 1.03 {105} | 1.03 {105} | 0.62 {65.0} | 0.62 {65.0} | 0.31 {32.0} | 0.31 {32.0} |
| RF08 | 4.12 {420} | 2.65 {270} | 2.88 {290} | 1.86 {190} | 1.27 {130} | 1.27 {130} | 0.76 {80.0} | 0.76 {80.0} | 0.38 {40.0} | 0.38 {40.0} |
| RF10 | 5.49 {560} | 3.43 {350} | 3.84 {390} | 2.40 {240} | 1.77 {180} | 1.77 {180} | 1.06 {110} | 1.06 {110} | 0.53 {55.0} | 0.53 {55.0} |
| RF12 | 8.34 {850} | 5.49 {560} | 5.84 {600} | 3.84 {390} | 2.50 {255} | 2.50 {255} | 1.50 {155} | 1.50 {155} | 0.75 {75.0} | 0.75 {75.0} |
| RF17 | 14.1 {1440} | 9.81 {1000} | 9.87 {1010} | 6.87 {700} | 4.02 {410} | 4.02 {410} | 2.41 {245} | 2.41 {245} | 1.21 {125} | 1.21 {125} |
| RF26 | 19.6 {2000} | 13.7 {1400} | 13.7 {1400} | 9.59 {980} | 5.30 {540} | 5.30 {540} | 3.81 {325} | 3.81 {325} | 1.59 {160} | 1.59 {160} |
| RF36 | 27.5 {2800} | 18.6 {1900} | 19.3 {1970} | 13.0 {1330} | 7.45 {760} | 7.45 {760} | - | - | - | - |
| RF52 | - | - | - | - | 9.81 {1000} | 9.81 {1000} | - | - | - | - |
| RF60 | - | - | - | - | 10.8 {1100} | 10.8 {1100} | - | - | - | - |
| RF90 | - | - | - | - | 15.2 {1550} | 15.2 {1550} | - | - | - | - |
| RF120 | - | - | - | - | 19.6 {2000} | 19.6 {2000} | - | - | - | - |
| RF430 | - | - | - | - | 0.93 {95.0} | 0.93 {95.0} | 0.56 {60.0} | - | 0.28 {30.0} | - |
| RF204 | - | - | - | - | 1.27 {130} | 1.27 {130} | 0.76 {80.0} | - | 0.38 {40.0} | - |
| RF450 | - | - | - | - | 1.27 {130} | 1.27 {130} | 0.76 {80.0} | - | 0.38 {40.0} | - |
| RF650 | - | - | - | - | 1.42 {145} | 1.42 {145} | 0.85 {85.0} | - | 0.43 {45.0} | - |
| RF214 | - | - | - | - | 2.11 {215} | 2.11 {215} | 1.27 {130} | - | 0.63 {65.0} | - |
| RF205 | - | - | - | - | 2.50 {255} | 2.50 {255} | 1.50 {155} | - | 0.75 {75.0} | - |
| RF6025 | - | - | - | - | 2.50 {255} | 2.50 {255} | 1.50 {155} | - | 0.75 {75.0} | - |
| RF212 | - | - | - | - | 2.89 {295} | 2.89 {295} | 1.73 {175} | - | 0.87 {90.0} | - |
