Cable carrier Plastic series TKP Series  Major Specifications

TKP35H22-40W38R75

Construction


[Click to enlarge ]
PDF Outline Drawing

Contact us for details.

DXF drawings / 3D CAD data

To CADENAS WEB2CAD website.

Please re-set the Inner width etc. on the linked screen.

※ The CAD data contained herein is made available to you via the CAD drawing library; PARTcommunity is provided by CADENAS WEB2CAD Co.
※ Please direct your inquiries regarding the CAD data service or PARTcommunity to:
　CADENAS WEB2CAD Co. TEL: +81 (3) 5961-5031 FAX: +81 (3) 5961-5032

この製品は環境配慮材を使用しています。

Catalogs ・Instruction Manuals


Basic Package

Maximum travel length m 2.7
Cable/hose maximum outer diameter mm 20
Cable/hose maximum mass kg/m 2
Maximum travel speed m/min　※1 300
Operating Temperature Range -40ﾟC～80ﾟC
Material Engineering plastic (black)
Mass kg/m 0.5
No. of links per unit 25

Notes
　1.150 m/min for support roller arrangement.
　2.Cannot be used in acidic or alkaline environments.

Special types
Gliding arrangement Not available
Circular travel arrangement Available

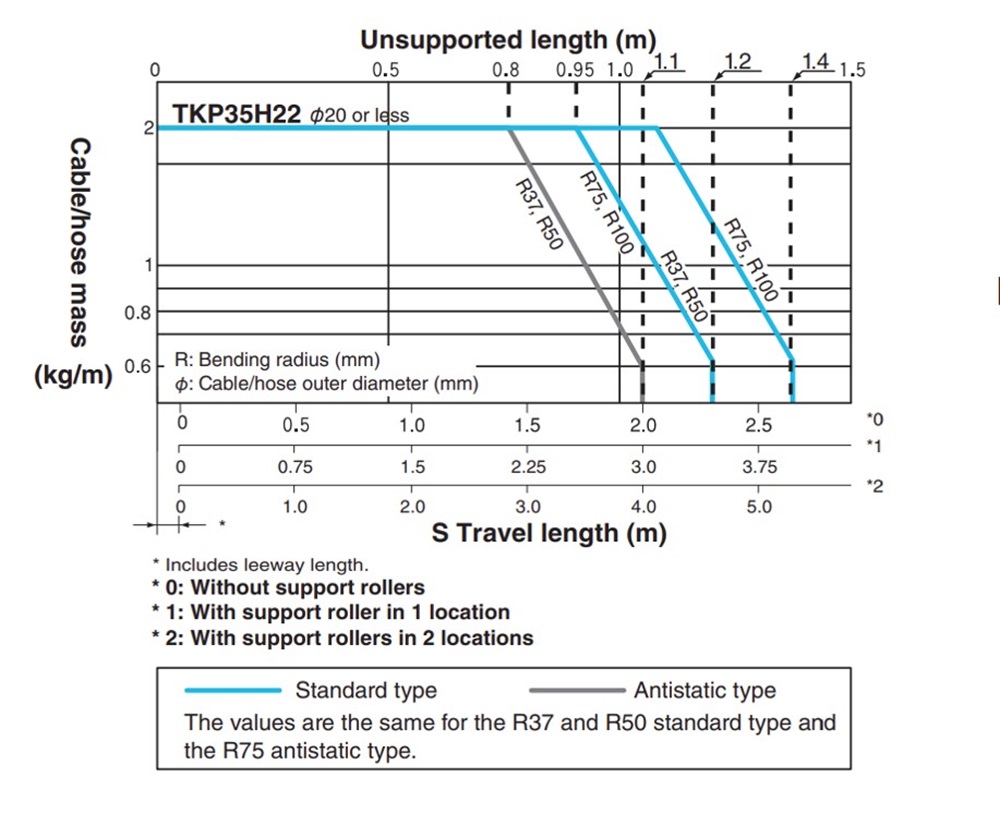

Allowable load graphs


[Click to enlarge ]

Divider


[Click to enlarge ]

Vertical divider


[Click to enlarge ]

Make the gap between cables/hoses and the divider or link (d in the figure above) to whichever of the following two values is larger: 2 mm or greater or the outer diameter of the cable or hose x 0.1.

Vertical divider
Model No. Type Fixing method Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP35H22-ST Slide type Sliding installation 1 Contact us for details. Contact us for details. DXF・3DCAD
Horizontal divider
Model No. Mass
g/each 		Standard Price Delivery DXF drawings
3D CAD data
TKP35H22-HS38 3 Contact us for details. Contact us for details. DXF・3DCAD

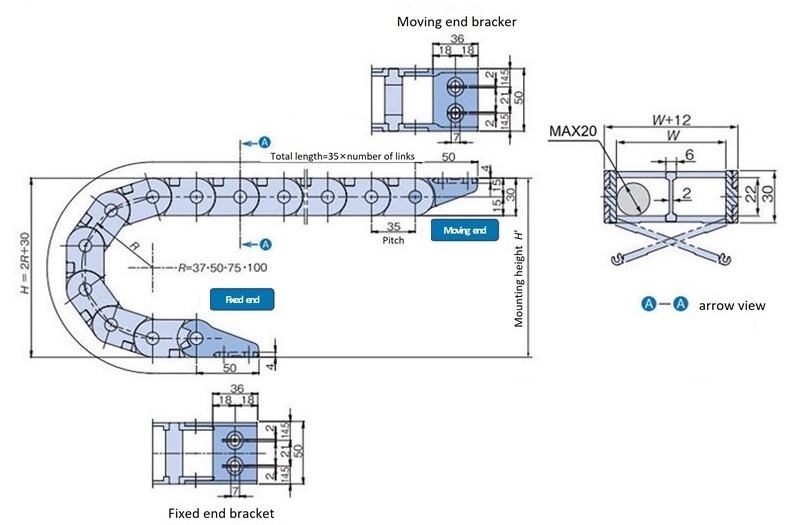

Dimension drawings


[Click to enlarge ]
Units : mm
Pitch
P		 Inner height Inner width
W		 Bending radius
R		 Mounting height
H'		 Leeway length
K
35 22 38 75 190～210 35

Notes
　1.Design and install according to the mounting height H' dimension.

Calculating no. of links


[Click to enlarge ]

Distance between fixed end and moving end
a mm
b mm

Calculate


No. of links =

Bracket


[Click to enlarge ]
Bending angle ゜
Moving end side (α) 0
Fixed end side (β) 60

Moving end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP35H22W38-MO Engineering plastic (black) 18 Contact us for details. Contact us for details.
TKP35H22W38-MI Engineering plastic (black) 18 Contact us for details. Contact us for details.

Fixed end bracket

Model No. Material Mass 　g/each Standard Price Delivery
TKP35H22W38-FO Engineering plastic (black) 18 Contact us for details. Contact us for details.
TKP35H22W38-FI Engineering plastic (black) 18 Contact us for details. Contact us for details.

・Plastic bracket MO and MI, FO and FI are common parts.

※Click here for details on accessories such as strain reliefs
