Cable carrier Plastic series Special types
Circular travel arrangement
- Circular travel arrangements can be used to connect cables/hoses to the rotating section of robots and other devices. Part of the structure of plastic cable carriers in circular travel arrangements differs from standard products. External dimensions are the same as those of standard products.
Contact a Tsubaki representative when using them. - Applicable Models: TKP Series/TKC Series/TK Series * Also for TKUA Series. Contact a Tsubaki representative when considering them.
[Click to enlarge ]
■ Base chain links
Modifications are made to standard parts to allow them to bend in both directions.
■ Mounting brackets/steel brackets
For either the moving end bracket or the fixed end bracket, modifications are made to standard parts to allow them to bend in both directions.
However, standard parts may also be usable as is depending on the installation layout and model.

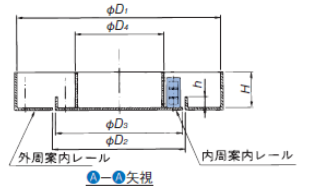

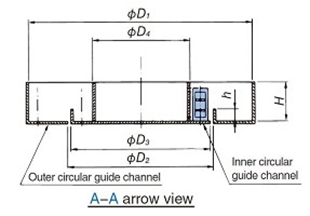

Types/dimensions
| Reverse bending radius R1 mm |
Outer circular drum diameter D1 mm |
D2 mm |
D3 mm |
Outer circular wall height H mm |
Guide height h mm |
Maximum travel speed m/min |
|
|---|---|---|---|---|---|---|---|
| TKP35H22 special type | D4/2+25 | D4+4R+100 | D4+106 | D4+100 | W+25 | 20 | 30 |
| TKP45H25 special type | D4/2+30 | D4+4R+120 | D4+126 | D4+120 | W+40 | 30 | 30 |
| TKP58H39 special type | D4/2+35 | D4+4R+140 | D4+146 | D4+140 | W+50 | 50 | 30 |
| TKP68H46 special type | D4/2+40 | D4+4R+160 | D4+166 | D4+160 | W+55 | 50 | 30 |
| TKP62H34 special type | D4/2+40 | D4+4R+160 | D4+166 | D4+160 | W+55 | 50 | 30 |
| TKP90H50 special type | D4/2+50 | D4+4R+200 | D4+206 | D4+200 | W+60 | 50 | 30 |
| TKP125H74 special type | D4/2+65 | D4+4R+260 | D4+266 | D4+260 | W+70 | 50 | 30 |
| Reverse bending radius R1 mm |
Inner circular drum diameter D4 mm |
D2 mm |
D3 mm |
Outer circular wall height H mm |
Guide height h mm |
Maximum travel speed m/min |
|
|---|---|---|---|---|---|---|---|
| TKP35H22Special type | D1/2－2R－25 | D1－4R－100 | D1－4R+6 | D1－4R | W+25 | 20 | 30 |
| TKP45H25Special type | D1/2－2R－30 | D1－4R－120 | D1－4R+6 | D1－4R | W+40 | 30 | 30 |
| TKP58H39Special type | D1/2－2R－35 | D1－4R－140 | D1－4R+6 | D1－4R | W+50 | 50 | 30 |
| TKP68H46Special type | D1/2－2R－40 | D1－4R－160 | D1－4R+6 | D1－4R | W+55 | 50 | 30 |
| TKP62H34Special type | D1/2－2R－40 | D1－4R－160 | D1－4R+6 | D1－4R | W+55 | 50 | 30 |
| TKP90H50Special type | D1/2－2R－50 | D1－4R－200 | D1－4R+6 | D1－4R | W+60 | 50 | 30 |
| TKP125H74Special type | D1/2－2R－65 | D1－4R－260 | D1－4R+6 | D1－4R | W+70 | 50 | 30 |
| Reverse bending radius R1 mm |
Outer circular drum diameter D1 mm |
D2 mm |
D3 mm |
D4 mm |
Outer circular wall height H mm |
Guide height h mm |
Maximum travel speed m/min |
|
|---|---|---|---|---|---|---|---|---|
| TKC34H25W130R70 Special type | 170 | 690 | 400 | 394 | 290 | 160 | 40 | 40 |
| 140 | 630 | 340 | 334 | 230 | 160 | 40 | 40 | |
| 205 | 750 | 470 | 464 | 350 | 160 | 40 | 40 |

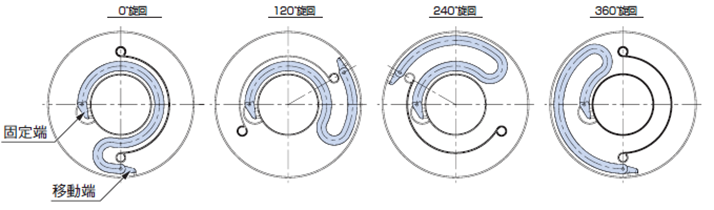

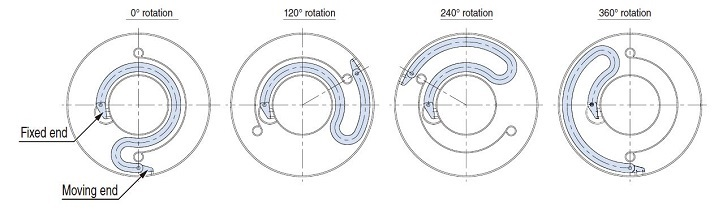

Track of inner circular travel
[Click to enlarge ]

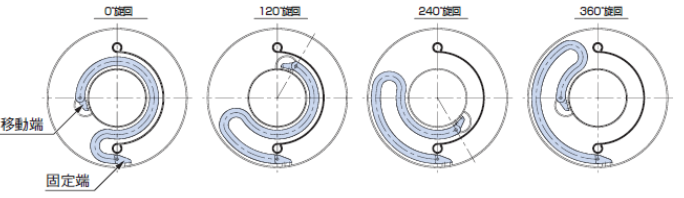

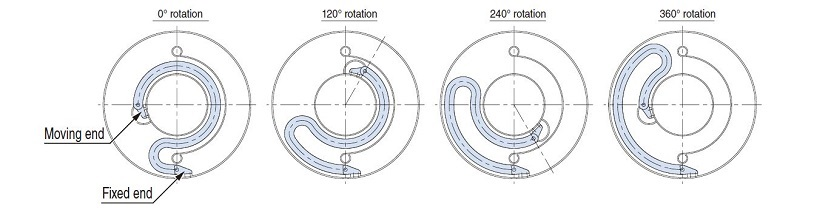

Track of outer circular travel
[Click to enlarge ]
